Samsung Syncmaster 2233sn User Manual

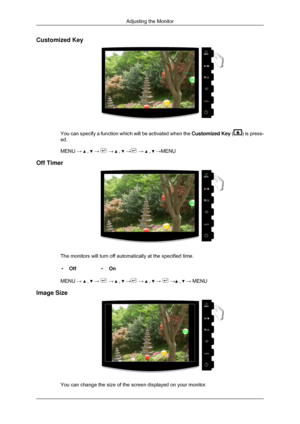

Customized Key
You can specify a function which will be activated when the
Customized Key ( ) is press-
ed.
MENU →   ,   →   →   ,   →  →   ,   →MENU
Off Timer The monitors will turn off automatically at the specified time.
• Off •On
MENU →   ,   →   →   ,   →  →   ,   →   →  ,   → MENU

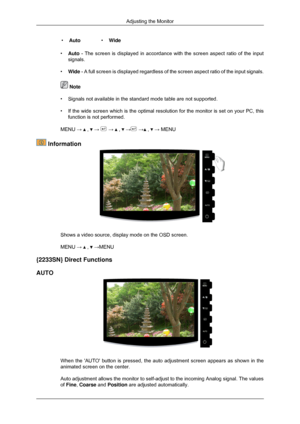

Image Size You can change the size of the screen displayed on your monitor. Adjusting the Monitor

•
Auto •Wide
• Auto - The screen is displayed in accordance with the screen aspect ratio of\
 the input
signals.
• Wide - A full screen is displayed regardless of the screen aspect ratio of t\
he input signals.  Note
• Signals not available in the standard mode table are not supported.
• If the wide screen which is the optimal resolution for the monitor is se\
t on your PC, this
function is not performed.
MENU
→   ,   →   →   ,   →  →  ,   → MENU
 Information
Shows a video source, display mode on the...

If auto adjustment does not work properly, press AUTO button again to \
adjust picture
with more accuracy. If you change resolution in the control panel, auto function will be exe\
cuted automatically.

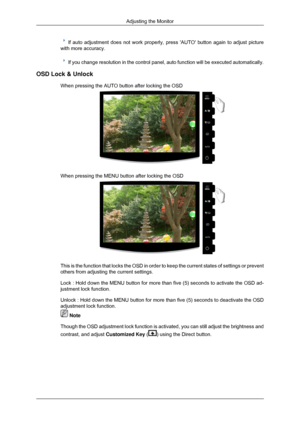

OSD Lock & Unlock When pressing the AUTO button after locking the OSD When pressing the MENU button after locking the OSD
This is the function that locks the OSD in order to keep the current sta\
tes of settings or prevent
others from adjusting the current settings.
Lock : Hold down the MENU button for...

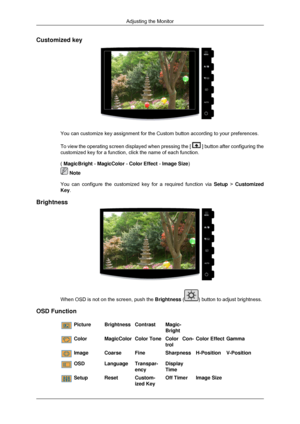

Customized key
You can customize key assignment for the Custom button according to your\
 preferences.
To view the operating screen displayed when pressing the [
 ] button after configuring the
customized key for a function, click the name of each function.
( MagicBright - MagicColor - Color Effect - Image Size)  Note
You can configure the customized key for a required function via  Setup > Customized
Key.
Brightness When OSD is not on the screen, push the Brightness ( ) button to adjust brightness.
OSD...

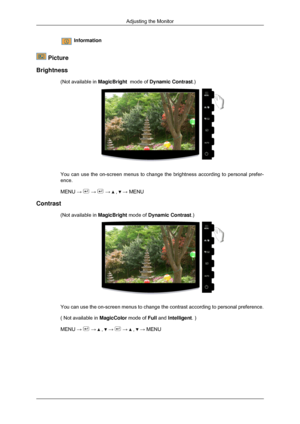

Information
Brightness (Not available in  MagicBright  mode of Dynamic Contrast.) You can use the on-screen menus to change the brightness according to pe\
rsonal prefer-
ence.
MENU →
 →   →   ,   → MENU
Contrast (Not available in  MagicBright mode of Dynamic Contrast.) You can use the on-screen menus to change the contrast according to pers\
onal preference.
( Not available in
MagicColor mode of Full and Intelligent. )
MENU →   →   ,   →   →   ,   → MENU
Adjusting the Monitor

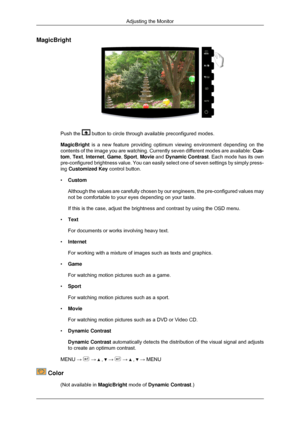

MagicBright
Push the   button to circle through available preconfigured modes.
MagicBright is a new feature providing optimum viewing environment depending on the\
contents of the image you are watching. Currently seven different modes \
are available:  Cus-
tom,  Text,  Internet,  Game, Sport, Movie and  Dynamic Contrast . Each mode has its own
pre-configured brightness value. You can easily select one of seven sett\
ings by simply press-
ing Customized Key control button.
• Custom
Although the values...

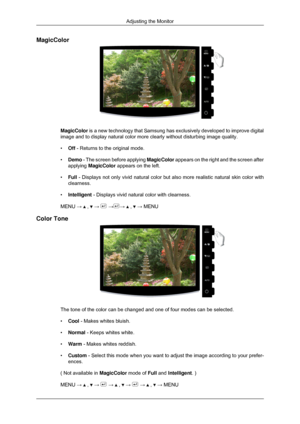

MagicColor
MagicColor is a new technology that Samsung has exclusively developed to improve d\
igital
image and to display natural color more clearly without disturbing image\
 quality.
•
Off - Returns to the original mode.
• Demo - The screen before applying  MagicColor appears on the right and the screen after
applying  MagicColor appears on the left.
• Full - Displays not only vivid natural color but also more realistic natural\
 skin color with
clearness.
• Intelligent - Displays vivid natural color...

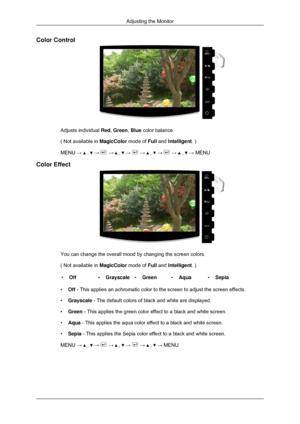

Color Control
Adjusts individual
Red, Green, Blue color balance.
( Not available in  MagicColor mode of Full and Intelligent. )
MENU →   ,   →   →   ,   →   →   ,   →   →   ,   → MENU
Color Effect You can change the overall mood by changing the screen colors.
( Not available in
MagicColor mode of Full and Intelligent. )
• Off •Grayscale •Green •Aqua •Sepia
• Off - This applies an achromatic color to the screen to adjust the screen e\
ffects.
• Grayscale - The default colors of black and white are...

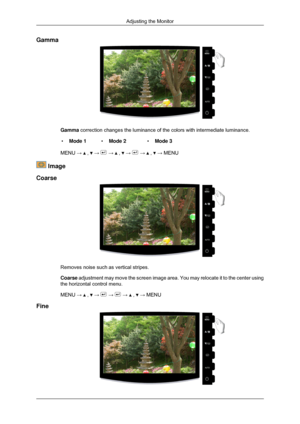

Gamma
Gamma correction changes the luminance of the colors with intermediate lumina\
nce.
• Mode 1 •Mode 2 •Mode 3
MENU →   ,   →   →   ,   →   →   ,   → MENU
Coarse Removes noise such as vertical stripes.
Coarse adjustment may move the screen image area. You may relocate it to the c\
enter using
the horizontal control menu.
MENU →
 ,   →   →   →   ,   → MENU
Fine Adjusting the Monitor

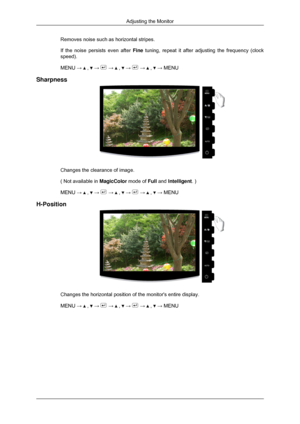

Removes noise such as horizontal stripes.
If the noise persists even after Fine tuning, repeat it after adjusting the frequency (clock
speed).
MENU →
 ,   →   →   ,   →   →   ,   → MENU
Sharpness Changes the clearance of image.
( Not available in
MagicColor mode of Full and Intelligent. )
MENU →   ,   →   →   ,   →   →   ,   → MENU
H-Position Changes the horizontal position of the monitors entire display.
MENU →
 ,   →   →   ,   →   →   ,   → MENU
Adjusting the Monitor
