Samsung Syncmaster 2233sn User Manual

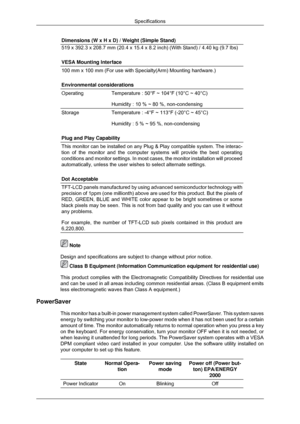

Dimensions (W x H x D) / Weight (Simple Stand)
519 x 392.3 x 208.7 mm (20.4 x 15.4 x 8.2 inch) (With Stand) / 4.40 \
kg (9.7 lbs)
VESA Mounting Interface
100 mm x 100 mm (For use with Specialty(Arm) Mounting hardware.)
Environmental considerations
Operating
Temperature : 50°F ~ 104°F (10°C ~ 40°C)
Humidity : 10 % ~ 80 %, non-condensing
Storage
Temperature : -4°F ~ 113°F (-20°C ~ 45°C)
Humidity : 5 % ~ 95 %, non-condensing
Plug and Play Capability This monitor can be installed on any Plug & Play...

State Normal Opera-
tion Power saving
mode Power off (Power but-
ton) EPA/ENERGY 2000 Power Con-
sumption 45 watts Less than 1 watts Less than 1 watts This monitor is EPA ENERGY STAR
®
 compliant and
ENERGY2000 compliant when used with a computer
equipped with VESA DPM functionality.
As an ENERGY STAR ®
 Partner, SAMSUNG has deter-
mined that this product meets the ENERGY STAR ®
guidelines for energy efficiency. Preset Timing Modes
If the signal transferred from the computer is the same as the following\...

Information

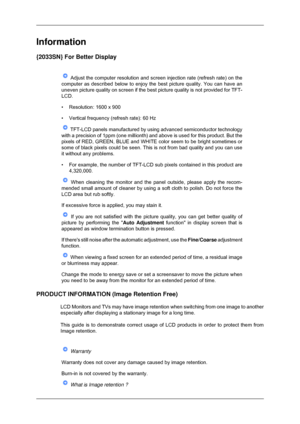

{2033SN} For Better Display
 Adjust the computer resolution and screen injection rate (refresh rate\
) on the
computer as described below to enjoy the best picture quality. You can h\
ave an
uneven picture quality on screen if the best picture quality is not prov\
ided for TFT-
LCD.
• Resolution: 1600 x 900
•
Vertical frequency (refresh rate): 60 Hz  TFT-LCD panels manufactured by using advanced semiconductor technology
with a precision of 1ppm (one millionth) and above is used for this pr\...

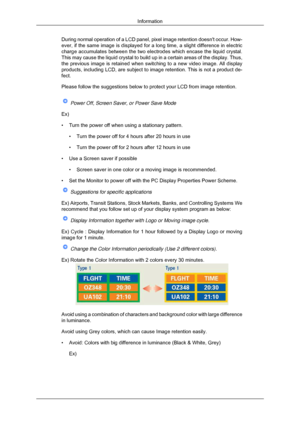

During normal operation of a LCD panel, pixel image retention doesnt oc\
cur. How-
ever, if the same image is displayed for a long time, a slight differenc\
e in electric
charge accumulates between the two electrodes which encase the liquid cr\
ystal.
This may cause the liquid crystal to build up in a certain areas of the \
display. Thus,
the previous image is retained when switching to a new video image. All \
display
products, including LCD, are subject to image retention. This is not a p\
roduct de-...

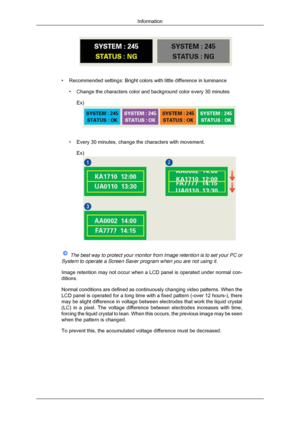

• Recommended settings: Bright colors with little difference in luminance
•Change the characters color and background color every 30 minutes
Ex) • Every 30 minutes, change the characters with movement.
Ex)
The best way to protect your monitor from Image retention is to set your\
 PC or
System to operate a Screen Saver program when you are not using it.
Image retention may not occur when a LCD panel is operated under normal \
con-
ditions.
Normal conditions are defined as continuously changing video...

 Our LCD Monitor satisfies ISO13406-2 Pixel fault Class II
{2233SN} For Better Display  Adjust the computer resolution and screen injection rate (refresh rate\
) on the
computer as described below to enjoy the best picture quality. You can h\
ave an
uneven picture quality on screen if the best picture quality is not prov\
ided for TFT-
LCD.
• Resolution: 1920 x 1080
• Vertical frequency (refresh rate): 60 Hz  TFT-LCD panels manufactured by using advanced semiconductor technology
with a precision of 1ppm...

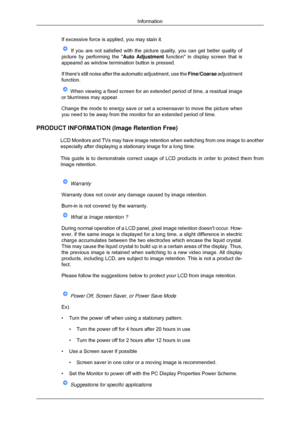

If excessive force is applied, you may stain it.
 If you are not satisfied with the picture quality, you can get better q\
uality of
picture by performing the  Auto Adjustment function in display screen that is
appeared as window termination button is pressed.
If theres still noise after the automatic adjustment, use the  Fine/Coarse adjustment
function.  When viewing a fixed screen for an extended period of time, a residual \
or blurriness may appear.
Change the mode to energy save or set a...

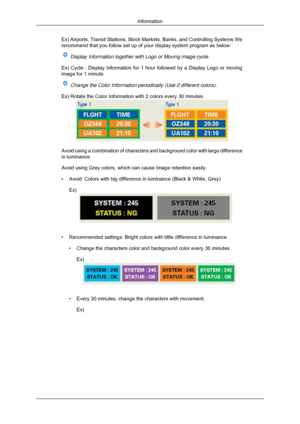

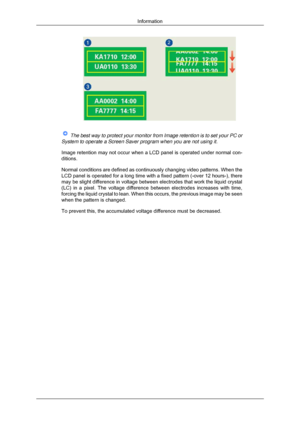

Ex) Airports, Transit Stations, Stock Markets, Banks, and Controlling S\
ystems We
recommend that you follow set up of your display system program as below\
:
 Display Information together with Logo or Moving image cycle.
Ex) Cycle : Display Information for 1 hour followed by a Display Logo o\
r moving
image for 1 minute.  Change the Color Information periodically (Use 2 different colors).
Ex) Rotate the Color Information with 2 colors every 30 minutes. Avoid using a combination of characters and...


The best way to protect your monitor from Image retention is to set your\
 PC or
System to operate a Screen Saver program when you are not using it.
Image retention may not occur when a LCD panel is operated under normal \
con-
ditions.

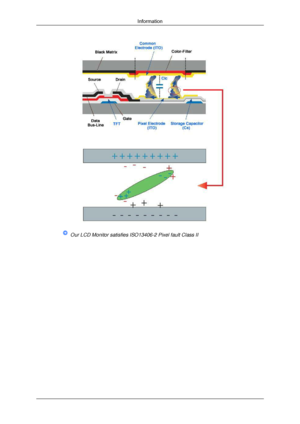

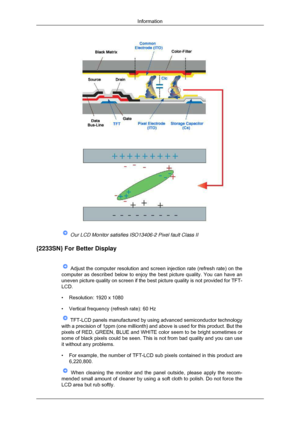

Normal conditions are defined as continuously changing video patterns. W\
hen the
LCD panel is operated for a long time with a fixed pattern (-over 12 ho\
urs-), there
may be slight difference in voltage between electrodes that work the liq\
uid crystal
(LC) in a pixel....

 Our LCD Monitor satisfies ISO13406-2 Pixel fault Class IIInformation
