Samsung Syncmaster 2233sn User Manual

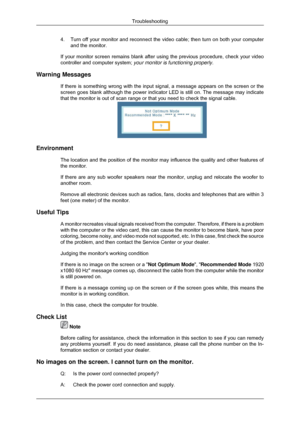

4.
Turn off your monitor and reconnect the video cable; then turn on both y\
our computer
and the monitor.
If your monitor screen remains blank after using the previous procedure,\
 check your video
controller and computer system;  your monitor is functioning properly.
Warning Messages If there is something wrong with the input signal, a message appears on \
the screen or the
screen goes blank although the power indicator LED is still on. The mess\
age may indicate
that the monitor is out of scan range...

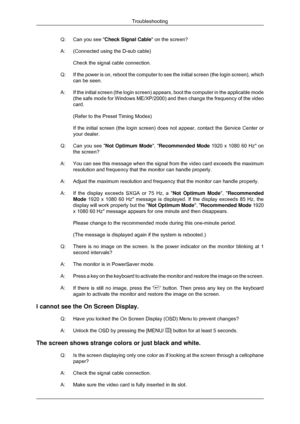

Q: Can you see
Check Signal Cable on the screen?
A: (Connected using the D-sub cable) Check the signal cable connection.
Q: If the power is on, reboot the computer to see the initial screen (the \
login screen), which
can be seen.
A: If the initial screen (the login screen) appears, boot the computer in\
 the applicable mode
(the safe mode for Windows ME/XP/2000) and then change the frequency o\
f the video
card.
(Refer to the Preset Timing Modes)
If the initial screen (the login screen) does not...

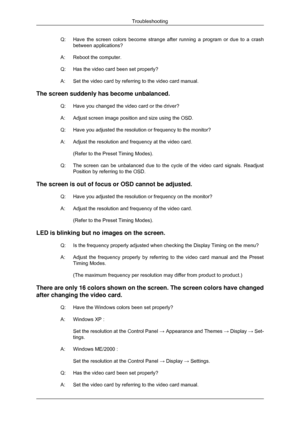

Q:
Have the screen colors become strange after running a program or due to \
a crash
between applications?
A: Reboot the computer.
Q:
Has the video card been set properly?
A: Set the video card by referring to the video card manual.
The screen suddenly has become unbalanced. Q: Have you changed the video card or the driver?
A: Adjust screen image position and size using the OSD.
Q: Have you adjusted the resolution or frequency to the monitor?
A: Adjust the resolution and frequency at the video...

There is a message that reads Unrecognized monitor, Plug & Play (VESA \
DDC)
monitor found.
Q:Have you installed the monitor driver?
A:
Install the monitor driver according to the Driver Installation Instructions.
Q: See the video card manual to see if the Plug & Play (VESA DDC) functio\
n can be
supported.
A: Install the monitor driver according to the Driver Installation Instructions.
Check when MagicTune™ does not function properly. Q:MagicTune™ feature is found only on PC (VGA) with Window OS that...

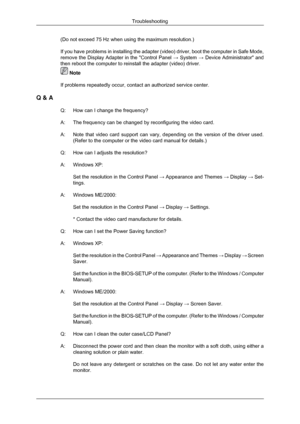

(Do not exceed 75 Hz when using the maximum resolution.)
If you have problems in installing the adapter (video) driver, boot th\
e computer in Safe Mode,
remove the Display Adapter in the Control Panel
→ System  → Device Administrator and
then reboot the computer to reinstall the adapter (video) driver.  Note
If problems repeatedly occur, contact an authorized  service center.
Q & A Q:
How can I change the frequency?
A: The frequency can be changed by reconfiguring the video card.
A: Note that video...

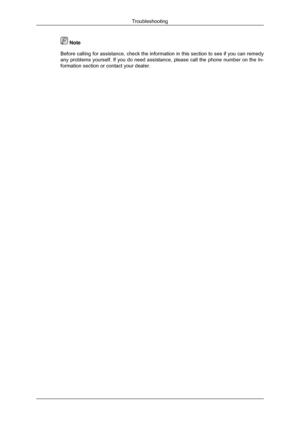

 Note
Before calling for assistance, check the information in this section to \
see if you can remedy
any problems yourself. If you do need assistance, please call the  phone number on the In-
formation section or contact your dealer
.
Troubleshooting

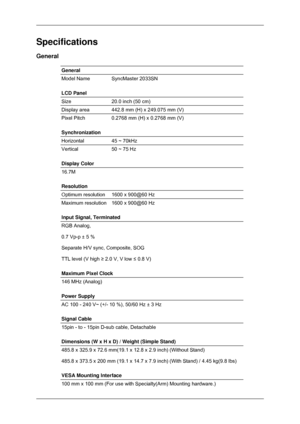

Specifications
General
General
Model Name SyncMaster 2033SN
LCD Panel
Size
20.0 inch (50 cm)
Display area 442.8 mm (H) x 249.075 mm (V)
Pixel Pitch
0.2768 mm (H) x 0.2768 mm (V)
Synchronization
Horizontal 45 ~ 70kHz
Vertical
50 ~ 75 Hz
Display Color 16.7M
Resolution
Optimum resolution
1600 x 900@60 Hz
Maximum resolution 1600 x 900@60 Hz
Input Signal, Terminated
RGB Analog,
0.7 Vp-p ± 5 %
Separate H/V sync, Composite, SOG
TTL level (V high ≥ 2.0 V, V low ≤ 0.8 V)
Maximum Pixel Clock
146 MHz (Analog)
Power...

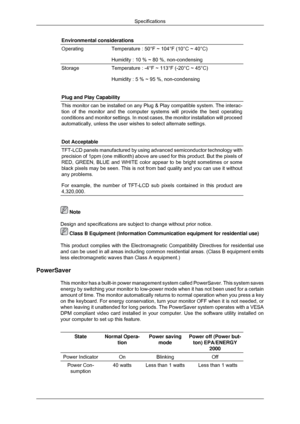

Environmental considerations
Operating
Temperature : 50°F ~ 104°F (10°C ~ 40°C)
Humidity : 10 % ~ 80 %, non-condensing
Storage
Temperature : -4°F ~ 113°F (-20°C ~ 45°C)
Humidity : 5 % ~ 95 %, non-condensing
Plug and Play Capability This monitor can be installed on any Plug & Play compatible system. The \
interac-
tion of the monitor and the computer systems will provide the best opera\
ting
conditions and monitor settings. In most cases, the monitor installation\
 will proceed
automatically, unless the...

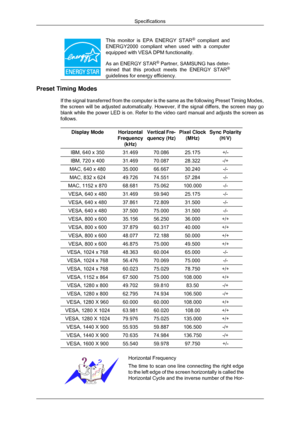

This monitor is EPA ENERGY STAR
®
 compliant and
ENERGY2000 compliant when used with a computer
equipped with VESA DPM functionality.
As an ENERGY STAR ®
 Partner, SAMSUNG has deter-
mined that this product meets the ENERGY STAR ®
guidelines for energy efficiency. Preset Timing Modes
If the signal transferred from the computer is the same as the following\
 Preset Timing Modes,
the screen will be adjusted automatically. However, if the signal differ\
s, the screen may go
blank while the power LED is on....

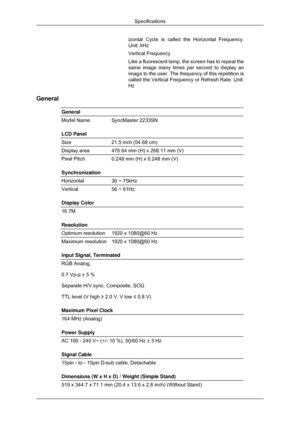

izontal Cycle is called the Horizontal Frequency.
Unit: kHz
Vertical Frequency
Like a fluorescent lamp, the screen has to repeat the
same image many times per second to display an
image to the user. The frequency of this repetition is
called the Vertical Frequency or Refresh Rate. Unit:
Hz
General General
Model Name SyncMaster 2233SN
LCD Panel
Size
21.5 inch (54.68 cm)
Display area 476.64 mm (H) x 268.11 mm (V)
Pixel Pitch
0.248 mm (H) x 0.248 mm (V)
Synchronization
Horizontal 30 ~ 75kHz
Vertical
56 ~...
