Sony Projector VPL-HW55ES User Manual

Using the Menus
61 GB

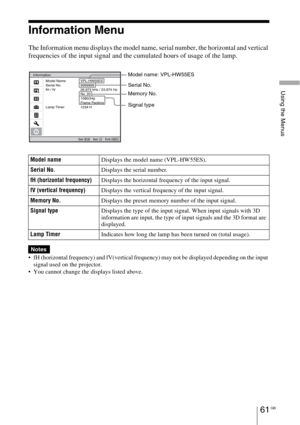

Information Menu
The Information menu displays the model name, serial number, the horizontal and vertical
frequencies of the input signal and the cumulated hours of usage of the lamp.
 fH (horizontal frequency) and fV(vertical frequency) may not be displayed depending on the input
signal used on the projector.
 You cannot change the displays listed above.Model nameDisplays the model name (VPL-HW55ES).
Serial No.Displays the serial number.
fH (horizontal frequency)Displays the...

GB 62

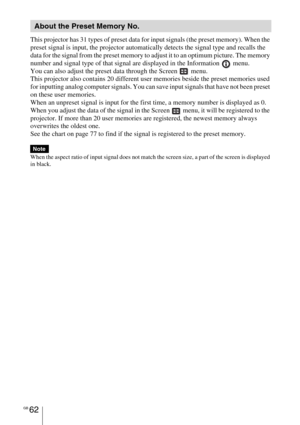

This projector has 31 types of preset data for input signals (the preset memory). When the
preset signal is input, the projector automatically detects the signal type and recalls the
data for the signal from the preset memory to adjust it to an optimum picture. The memory
number and signal type of that signal are displayed in the Information   menu.
You can also adjust the preset data through the Screen   menu.
This projector also contains 20 different user memories beside the preset memories...

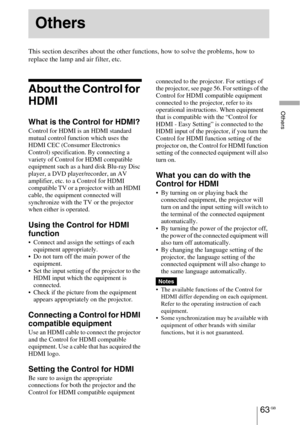

Others
63 GB
This section describes about the other functions, how to solve the problems, how to
replace the lamp and air filter, etc.
About the Control for
HDMI
What is the Control for HDMI?
Control for HDMI is an HDMI standard
mutual control function which uses the
HDMI CEC (Consumer Electronics
Control) specification. By connecting a
variety of Control for HDMI compatible
equipment such as a hard disk Blu-ray Disc
player, a DVD player/recorder, an AV
amplifier, etc. to a Control for HDMI...

GB 64

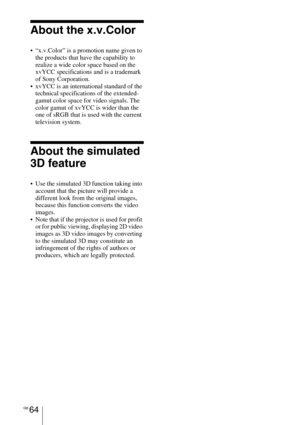

About the x.v.Color
 “x.v.Color” is a promotion name given to
the products that have the capability to
realize a wide color space based on the
xvYCC specifications and is a trademark
of Sony Corporation.
 xvYCC is an international standard of the
technical specifications of the extended-
gamut color space for video signals. The
color gamut of xvYCC is wider than the
one of sRGB that is used with the current
television system.
About the simulated
3D feature
 Use the simulated 3D function...

Others
65 GB

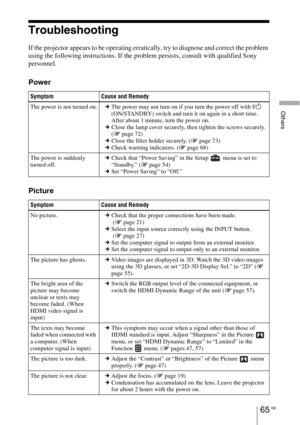

Troubleshooting
If the projector appears to be operating erratically, try to diagnose and correct the problem
using the following instructions. If the problem persists, consult with qualified Sony
personnel.
Power
Symptom Cause and Remedy
The power is not turned on.cThe power may not turn on if you turn the power off with I/1
(ON/STANDBY) switch and turn it on again in a short time.
After about 1 minute, turn the power on.
cClose the lamp cover securely, then tighten the screws...

GB 66

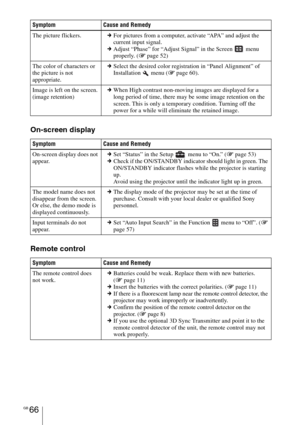

On-screen display
Remote control
The picture flickers.cFor pictures from a computer, activate “APA” and adjust the
current input signal.
cAdjust “Phase” for “Adjust Signal” in the Screen   menu
properly. (1 page 52)
The color of characters or
the picture is not
appropriate.cSelect the desired color registration in “Panel Alignment” of
Installation  menu (1 page 60).
Image is left on the screen.
(image retention)cWhen High contrast non-moving images are displayed for a
long period of time,...

Others
67 GB

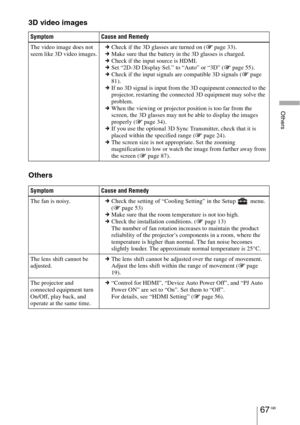

3D video images
Others
Symptom Cause and Remedy
The video image does not
seem like 3D video images.cCheck if the 3D glasses are turned on (1 page 33).
cMake sure that the battery in the 3D glasses is charged.
cCheck if the input source is HDMI.
cSet “2D-3D Display Sel.” to “Auto” or “3D” (1 page 55).
cCheck if the input signals are compatible 3D signals (1 page
81).
cIf no 3D signal is input from the 3D equipment connected to the
projector, restarting the connected 3D equipment may solve...

GB 68

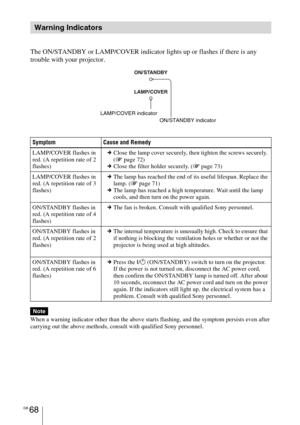

The ON/STANDBY or LAMP/COVER indicator lights up or flashes if there is any
trouble with your projector.
When a warning indicator other than the above starts flashing, and the symptom persists even after
carrying out the above methods, consult with qualified Sony personnel.
Warning Indicators
Symptom Cause and Remedy
LAMP/COVER flashes in
red. (A repetition rate of 2
flashes)cClose the lamp cover securely, then tighten the screws securely.
(1 page 72)
cClose the filter holder securely. (1...

Others
69 GB

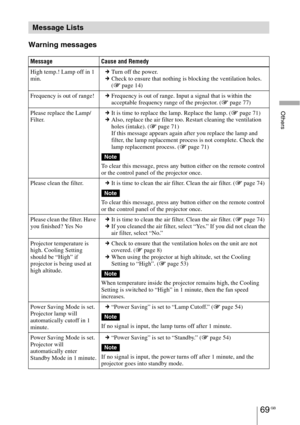

Warning messages
Message Lists
Message Cause and Remedy
High temp.! Lamp off in 1
min.cTu rn  o ff th e powe r.
cCheck to ensure that nothing is blocking the ventilation holes.
(1 page 14)
Frequency is out of range!cFrequency is out of range. Input a signal that is within the
acceptable frequency range of the projector. (1 page 77)
Please replace the Lamp/
Filter.cIt is time to replace the lamp. Replace the lamp. (1 page 71)
cAlso, replace the air filter too. Restart cleaning the...

GB 70

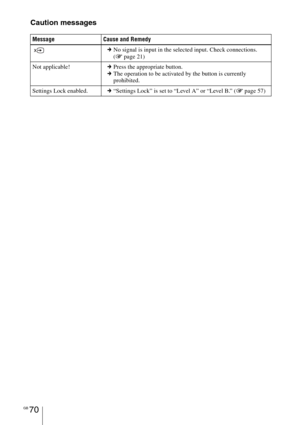

Caution messages
Message Cause and Remedy
 cNo signal is input in the selected input. Check connections.
(1 page 21)
Not applicable!cPress the appropriate button.
cThe operation to be activated by the button is currently
prohibited.
Settings Lock enabled.c“Settings Lock” is set to “Level A” or “Level B.” (1 page 57)
