Toshiba Projector Tdp P9 User Manual
Here you can view all the pages of manual Toshiba Projector Tdp P9 User Manual. The Toshiba manuals for Projector are available online for free. You can easily download all the documents as PDF.

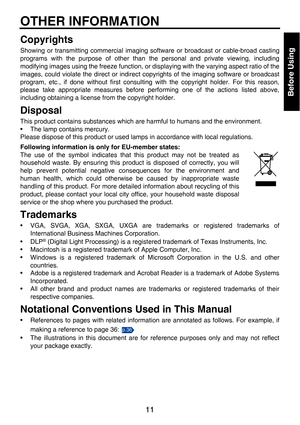

Page 11
11 Before Using OTHER INFORMATION Copyrights Showing or transmitting commercial imaging software or broadcast or cable-broad casting programs with the purpose of other than the personal and private viewing, including modifying images using the freeze function, or displaying with the varying aspect ratio of the images, could violate the direct or indirect copyrights of the imaging software or broadcast program, etc., if done without first consulti ng with the copyright holder. For this reason, please...

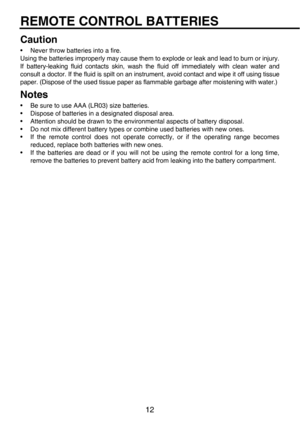

Page 12
12 REMOTE CONTROL BATTERIES Caution • Never throw batteries into a fire. Using the batteries improperly may cause them to explode or leak and lead to burn or injury. If battery-leaking fluid contacts skin, wash the fluid off immediately with clean water and consult a doctor. If the fluid is spilt on an instrument, avoid contact and wipe it off using tissue paper. (Dispose of the used tissue paper as flammable garbage after moistening with water.) Notes • Be sure to use AAA (LR03) size batteries. •...

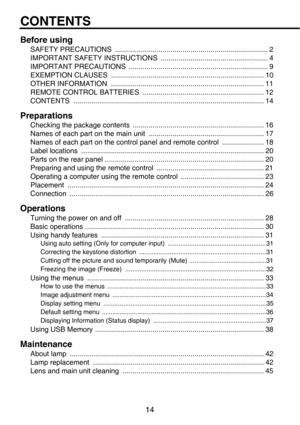

Page 14
14 CONTENTS Before using SAFETY PRECAUTIONS ............................................................................. 2 IMPORTANT SAFETY INSTRUCTIONS ...................................................... 4 IMPORTANT PRECAUTIONS ...................................................................... 9 EXEMPTION CLAUSES ............................................................................. 10 OTHER INFORMATION ............................................................................. 11...
Page 15
15 Before Using Others Indicators ..................................................................................................... 46 Before calling service personnel ................................................................. 47 Specifications .............................................................................................. 48 List of general specifications................................................................................ 48 Separately sold product...
Page 16
16 PreparationsChecking the package contents Please make sure that the following items are included in t he box, along with the main unit.If any item is missing, please contact the stor e immediately where you purchased theproduct. Note • The shape and number of supplied power cords vary depending on the product destination. • To maintain original performance, make sure to use supplied cables. Save Original Packing Materials The original shipping carton and packing materials will come in handy if you...

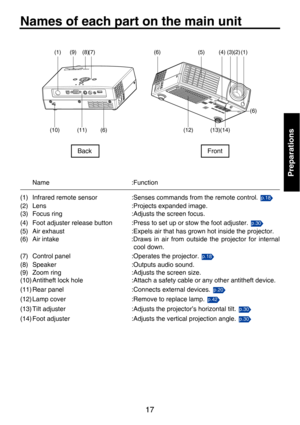

Page 17
17 Preparations Names of each part on the main unit Name:Function (1) Infrared remote sensor :Senses commands from the remote control. (2) Lens :Projects expanded image. (3) Focus ring :Adjusts the screen focus. (4) Foot adjuster release button :Press to set up or stow the foot adjuster. (5) Air exhaust :Expels air that has grown hot inside the projector. (6) Air intake :Draws in air from outside the projector for internal cool down. (7) Control panel :Operates the projector. (8) Speaker :Outputs...

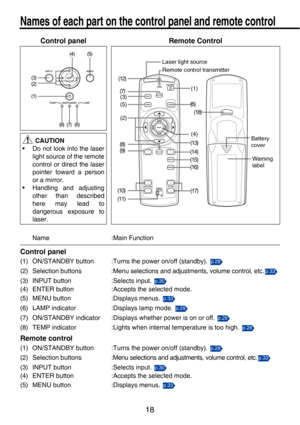

Page 18
18 Names of each part on the control panel and remote control Control panel Remote Control CAUTION • Do not look into the laser light source of the remote control or direct the laser pointer toward a person or a mirror. • Handling and adjusting other than described here may lead to dangerous exposure to laser. Name :Main Function Control panel (1) ON/STANDBY button :Turns the power on/off (standby). (2) Selection buttons :Menu selections and adjustments, volume control, etc. (3) INPUT button :Selects...
Page 19
19 Preparations Note • For the remainder of this manual, buttons are referred to as follows: Selection buttons ⇒ ; ENTER button ⇒ Name :Main Function (6) LASER button :Shows a laser pointer. (7) AUTO SET button :Sets up analog input from computer. (8) R-CLICK button :Functions as right-click of a mouse. (9) PAGE- button :Goes back PowerPoint ® slides. (10) KEYSTONE + / - button :Adjusts keystone distortion. (11) Remote control ON/OFF switch :Swi tches on/off the remote control. (12) Laser...
Page 20
20 Label locations Parts on the rear panel Caution - use of controls or adjustments or per formance of procedures other than those specified herein may result in hazardous radiation exposure. Name :Main Function (1) Infrared remote sensor :Senses commands from the remote control. (2) SERVICE :Firmware update. (3) COMPUTER IN terminal :Input analog RGB signal from a computer or other source, or a component video signal (Y/P B/PR) from video equipment. (4) S-VIDEO terminal :Input S video signals from...
