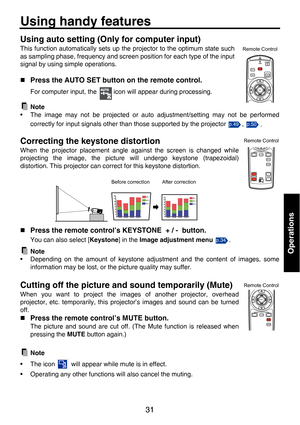

Page 31
31 Operations Using handy features Using auto setting (Only for computer input) This function automatically sets up the projector to the optimum state such as sampling phase, frequency and screen position for each type of the input signal by using simple operations. „ Press the AUTO SET button on the remote control. For computer input, the icon will appear during processing. Note • The image may not be projected or auto adjustment/setting may not be performed correctly for input signals other than...
Page 32
32 Using handy features (continued) Freezing the image (Freeze) Projected image can be frozen. This function is used to pause video during a presentation, etc. „ Press the FREEZE button on the remote control. The picture pauses. (The Freeze function is released when pressing the FREEZE button again.) Note • The icon will appear while freeze is in effect. • Other operation will also release the freeze. • Although an image is frozen on the projector, the pictures are running on the video or other...
Page 33
33 Operations Using the menus You can call up on-screen menus, and make adjustments and settings using the operation buttons on the control panel (main unit side) and remote control , . How to use the menus The menu shown below is for operation instructions purposes and might differ from the actual display. p.18p.19 1. Press the MENU button. The Image adjustment menu appears. 2. Select a Category 3. Adjustments & Settings Select a category by using . There are following 4 categories. 5....
Page 34
34 Using the menus (continued) Image adjustment menu Use this menu to set or adjust image-related items. Items that can be set or adjusted are marked with “Yes”, and those that cannot are marked with “No”. (When an item is masked, it indicates that you cannot select for the current input.) *1: [Tint] can be displayed and adjusted only when the video signal is [NTSC] or [NTSC4.43]. Item DescriptionComputer (D-SUB) Video USB RGB Y/PB/PR VolumeDecrease or increase the Volume with .Yes Yes Yes Yes Picture...
Page 35
35 Operations Display setting menu Note •[Display effect] None: displays screen without special effects. Wipe: screen scrolls in from the top or bottom. Dissolve: adds dissolve effect to screen. Cover: screen overlaps previous image • If you use the screen size setting function on commercial video software, broadcast or cable-broadcasting programs to display images with the varying aspect ratio except for the purpose of your private viewing and listening, it may infringe the copyright protected by the...
Page 36
36 Using the menus (continued) Default setting menu Note •Set Fan mode to [High] when the altitude is 600m (2,000 ft.) or higher, however, do not set Fan mode to [High] when using the projector at a lower altitude. • Note that if [Power on] is set to [Auto], then if the power is supplied when restored after a power outage, the projector will come on. Item Description RGB Y/PB/PRVideo USB Projection modeSets projection mode in accordance with Placement Styles. (Standard) (Rear) Yes Yes Yes Yes...
Page 37
37 Operations Displaying Information (Status display) Note • The mode of supported RGB signals is shown. •[Firmware version] shows the version of the projector’s internal control program. This version is referred to for customer service, etc. • Displays [Lamp time] as a measure of when the lamp should be replaced. (Cannot be used as a counter of guaranteed lamp time.) When the displayed time approaches 2,000 hours, consult with a dealer about getting replacement for:TLPLP20 (sold separately). Item...
Page 38
38 Using USB Memory Connect the USB memory to the projector and select USB input Press INPUT button to select USB source. Plug the USB memory to the USB port. Note • USB HDD or hub is not supported. • If Quick Start is set to On and the source other than USB memory is input, the slideshow will automatically play back when USB memory is plugged in. After that if the source is switched to USB, the first slide may not be displayed or the slideshow may be ended. File View Mode 1When Quick Start sets to On...
Page 39
39 Operations Slideshow Mode / Display of movie files Slideshow Mode / Display of movie files • Quick Start When the projector sets to the USB input and “Quick start” to “On” , the slideshow starts with JPEG files in the root folder of the USB memory. • Start from file view mode When a JPEG file is selected and press the button in the file view mode, slideshow starts from the selected JPEG file. Movie files can also be played by this operation. • Movie file is not played in slideshow even a movie...
Page 40
40 Using USB Memory (continued) Exit Slideshow / Stop playing movie file Press button to exit slideshow when slideshow is in operation or to stop playing movie file when the movie file is playing back. Note • With USB memory function, the projector may not accept any operations for a short time after the movie file is played back. In this state, please wait for a while without performing any operations. • There is no sound output during slideshow. When playing back the movie file, the sound will be...
