Page 21

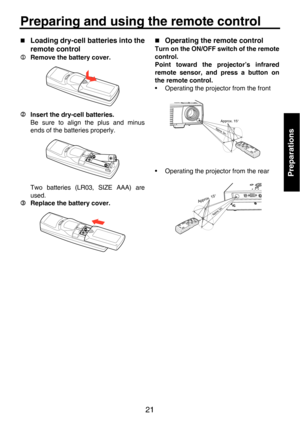

21 Preparations Preparing and using the remote control „Loading dry-cell batteries into the remote control 1Remove the battery cover. 2 Insert the dry-cell batteries. Be sure to align the plus and minus ends of the batteries properly. Two batteries (LR03, SIZE AAA) are used. 3 Replace the battery cover. „ Operating the remote control Turn on the ON/OFF switch of the remote control. Point toward the projector’s infrared remote sensor, and press a button on the remote control. • Operating the projector...
Page 22
22 Preparing and using the remote control (Continued) Dry-cell batteries • Before using the batteries, be sure to obs erve the Safety Precautions described in previous pages. • Remove batteries from remote contro l when not using for extended periods. • If the remote control stops working, or if its range decreases, replace all the batteries with new ones. • Keep the batteries away from the reach of children. Batteries are choking hazards and can be very dangerous if swallowed. If the batteries are...
Page 23

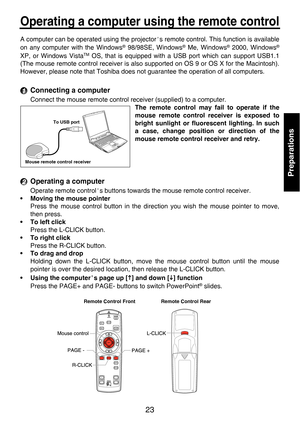

23 Preparations Operating a computer using the remote control A computer can be operated using the projector's remote control. This function is available on any computer with the Windows® 98/98SE, Windows® Me, Windows® 2000, Windows® XP, or Windows VistaTM OS, that is equipped with a USB port which can support USB1.1 (The mouse remote control receiver is also s upported on OS 9 or OS X for the Macintosh). However, please note that Toshiba does not guarantee the operation of all computers. Connecting...
Page 24

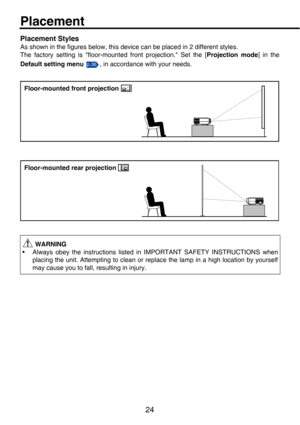

24 Placement Placement Styles As shown in the figures below, this device can be placed in 2 different styles. The factory setting is floor-mounted front projection. Set the [Projection mode] in the Default setting menu , in accordance with your needs. WARNING • Always obey the instructions listed in IMPORTANT SAFETY INSTRUCTIONS when placing the unit. Attempting to clean or repl ace the lamp in a high location by yourself may cause you to fall, resulting in injury. p.36 Floor-mounted front projection...
Page 25

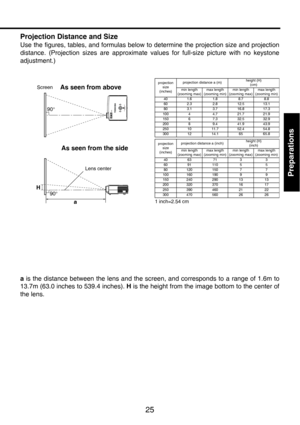

25 Preparations Projection Distance and Size Use the figures, tables, and formulas below to determine the projection size and projection distance. (Projection sizes are approximate values for full-size picture with no keystone adjustment.) a is the distance between the lens and the scree n, and corresponds to a range of 1.6m to 13.7m (63.0 inches to 539.4 inches). H is the height from the image bottom to the center of the lens. 1 inch=2.54 cm ScreenAs seen from above 90° As seen from the side a 90°H...
Page 26

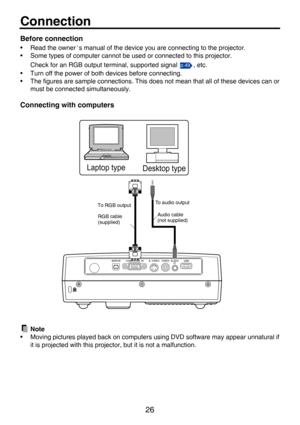

26 Connection Before connection • Read the owner's manual of the device you are connecting to the projector. • Some types of computer cannot be us ed or connected to this projector. Check for an RGB output terminal, supported signal , etc. • Turn off the power of both devices before connecting. • The figures are sample connections. This do es not mean that all of these devices can or must be connected simultaneously. Connecting with computers Note • Moving pictures played back on computer s using...
Page 27

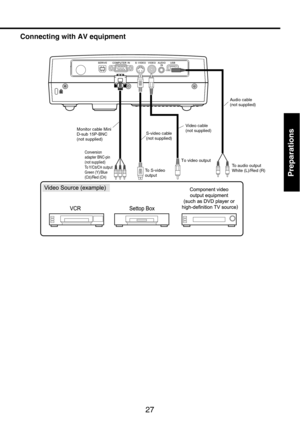

27 Preparations Connecting with AV equipment Monitor cable Mini D-sub 15P-BNC (not supplied)S-video cable (not supplied) Audio cable (not supplied) To S-video output Conversion adapter BNC-pin (not supplied) To Y/C B/CR output Green (Y)/Blue (C B)/Red (CR) Video cable (not supplied) To audio output White (L)/Red (R) To video output
Page 28

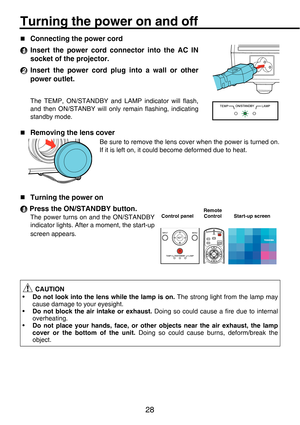

28 OperationsTurning the power on and off „Connecting the power cord Insert the power cord connector into the AC IN socket of the projector. Insert the power cord plug into a wall or other power outlet. The TEMP, ON/STANDBY and LAMP indicator will flash, and then ON/STANBY will only remain flashing, indicating standby mode. „ Removing the lens cover Be sure to remove the lens cover when the power is turned on. If it is left on, it could become deformed due to heat. „ Turning the power on Press the...
Page 29

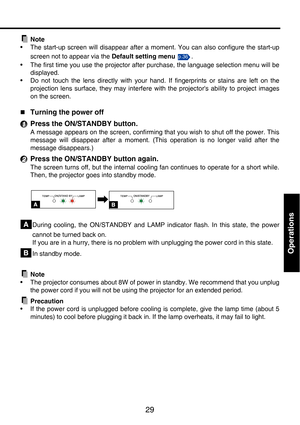

29 Operations Note • The start-up screen will disappear after a moment. You can also configure the start-up screen not to appear via the Default setting menu . • The first time you use the projector after purchase, the language selection menu will be displayed. • Do not touch the lens directly with your hand. If fingerprints or stains are left on the projection lens surface, they may interfere with the projectors ability to project images on the screen. „ Turning the power off Press the ON/STANDBY...
Page 30

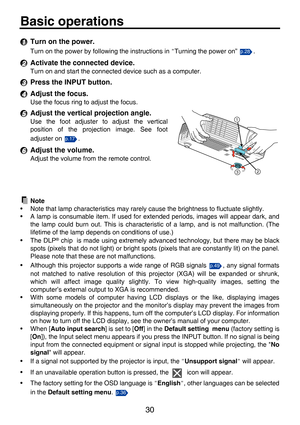

30 Basic operations Turn on the power. Turn on the power by following the instructions in "Turning the power on” . Activate the connected device. Turn on and start the connected device such as a computer. Press the INPUT button. Adjust the focus. Use the focus ring to adjust the focus. Adjust the vertical projection angle. Use the foot adjuster to adjust the vertical position of the projection image. See foot adjuster on . Adjust the volume. Adjust the volume from the remote control. Note • Note...
