Toshiba Projector Tdp P9 User Manual

41
Operations
4Backing up the data
Toshiba recommends that you back up the data saved in the memory PC card, the USB
memory, and in the memory card onto your computer before use. (Toshiba assumes no
liability for losses incurred by data lost through the use of this projector.)
5JPEG files
• Supported file extensions are .jpg and .JPG.
• Some JPEG files such as interlaced JPEG are not supported. Maximum resolution is
4096 x 2246.
6Movie files
The following are the supported Movie files and Maximum...

42
MaintenanceAbout lamp
The product’s light source is a mercury lamp that lights at increased internal pressure. Be sure
to fully understand the following characteristics of the lamp and handle it with extreme care.
• The lamp may burst with a loud noise due to impact or deterioration, or fail to light at the
expiration of its life.
• How long it takes before the lamp bursts or the life expires may vary greatly by lamp.
Some may burst shortly after first use.
• Burst is likely to happen if the lamp is...

43
Maintenance
Lamp replacement (Continued)
Unplug power cord.
Wait until lamp is sufficiently cooled.
Wait for at least 1 hour.
Remove the lamp cover.
Loosen the screw, raise the lamp cover with your
fingers as shown to remove the lamp cover. Use
care to avoid any damage to nails and/or tip of your
finger(s). If you have any difficulty in removal, you
can use a screwdriver or any other smaller tool for
your convenience.
Pull out the lamp.
Loosen the two lamp locking screws, pull up the
handle, and...

44

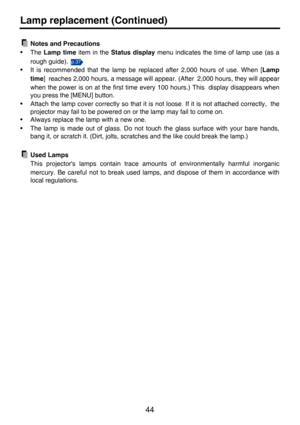

Lamp replacement (Continued)
Notes and Precautions
•The Lamp time item in the Status display menu indicates the time of lamp use (as a
rough guide).
• It is recommended that the lamp be replaced after 2,000 hours of use. When [Lamp
time] reaches 2,000 hours, a message will appear. (After 2,000 hours, they will appear
when the power is on at the first time every 100 hours.) This display disappears when
you press the [MENU] button.
• Attach the lamp cover correctly so that it is not loose. If it is not...

45
Maintenance
Lens and main unit cleaning
„Lens cleaning
• Clean the lens with a commercially available blower and/or lens
cleaner.
• The lens is easily scratched, so do not rub it with hard objects, or
strike it.
„
Main unit cleaning
• Clean the main unit after unplugging the power
cord.
• Wipe dirt off the main unit gently with a soft cloth.
• Do not wipe the main unit with a damp cloth. Doing
so may allow water to get inside, resulting in an
electric shock or failure.
• Do not use benzene, thinner...

46
OthersIndicators
F2: Flash 2Hz State/ Problems Icon/ Messages Close MessagesLED Indicators
TEMP LAMP
Environment overheat On
Fan lock
System error F2 F2
Lamp life time  The lamp life is ending.  Press any key
Lamp error On

47
Others
Before calling service personnel
If you think something is wrong, check the followings before contacting customer service.
Please see Indicators  as well.
.
If This Happens Check
No power• Is the power cord plugged in? Is it connected to the projector?
• Is the lamp cover open?
Power is lost
during use• Is the ambient temperature high?
• Is the air intake or air exhaust blocked?
No picture• Is the projector turned on?
• Are the connections set up correctly?  ,
• Are all the connected devices...

48
Specifications
„List of general specifications
Note
• This model complies with the above specifications.
• Designs and specifications are subject to change without notice.
• This model may not be compatible with features and/or specifications that may be added
in the future.
„
Separately sold product
Replacement Lamp: Model TLPLP20.
Item Specification
Consumption Power 230W
Weight 1.3kg
External Dimensions
(including protruding parts)210 x 76 x 170 (W x H x D, mm)
Cabinet material Mg Alloy...

49
Others
„List of supported signals (RGB signals)
This projector supports the following RGB signals. Note, however, that depending on the
computer model, the screen may show flicker or streaking. Please adjust the projector if
this happens.
Note
• Signals whose resolution exceeds the native resolution (1024 x 768 pixels) will be
compressed. For this reason, some information may be lost, or image quality may be
affected.Compatibility Resolution H-Sync [KHz] V-Sync [Hz]
VGA 640 x 480 31.5 59.9
37.9 72.8...

50
Specifications (Continued)
„List of supported signals (Video, S-Video signals)
Signal Horizontal Frequency (kHz) Vertical Frequency (Hz)
480i 15.8 kHz 60 Hz
480p 31.5 kHz 60 Hz
576i 15.6 kHz 50 Hz
576p 31.3 kHz 50 Hz
720p 45.0 kHz 60 Hz
720p 37.5 kHz 50 Hz
1080i 33.8 kHz 60 Hz
1080i 28.1 kHz 50 Hz
