Christie Projector Roadie 4K35 User Manual

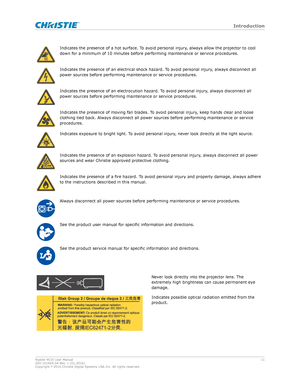

Indicates the presence of a hot surface. To avoid personal injury, always allow the projector to cool
down for a minimum of 10 minutes before performing maintenance or service procedures. Indicates the presence of an electrical shock hazard. To avoid personal injury, always disconnect all
power sources before performing maintenance or service procedures. Indicates the presence of an electrocution hazard. To avoid personal injury, always disconnect all
power sources before performing maintenance or...

Indicates thermal radiation emitted from the product
ma
y cause burns. This label warns of a cross-connection hazard when installing multiple
projectors at once. A fire hazard exists if a lamp power supply interlock
cable is connected to a different projector than its lamp power cables.
F

or more information, see Adjust the projector tilt and level in the
Installation and Setup chapter

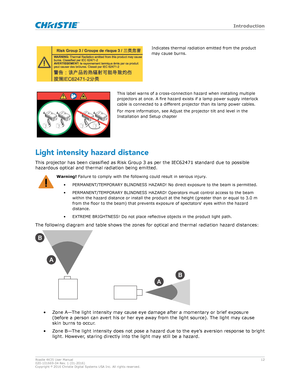

Light intensity hazard distance
This projector has been classified as Risk Group 3 as per the IEC62471 standard due to...

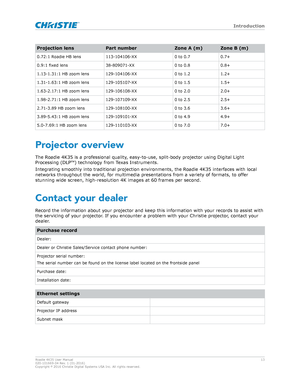

Projection lens
Part numberZone A (m) Zone B (m)
0.72:1 Roadie HB lens 113-104106-XX0 to 0.70.7+
0.9:1 fixed lens 38-809071-XX0 to 0.80.8+
1.13-1.31:1 HB zoom lens 129-104106-XX 0 to 1.21.2+
1.31-1.63:1 HB zoom lens 129-105107-XX 0 to 1.51.5+
1.63-2.17:1 HB zoom lens 129-106108-XX 0 to 2.02.0+
1.98-2.71:1 HB zoom lens 129-107109-XX 0 to 2.52.5+
2.71-3.89 HB zoom lens 129-108100-XX0 to 3.63.6+
3.89-5.43:1 HB zoom lens 129-109101-XX 0 to 4.94.9+
5.0-7.69:1 HB zoom lens 129-110103-XX 0 to 7.07.0+Projector...

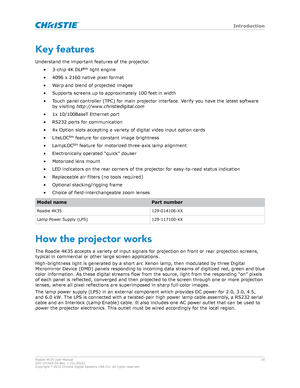

Key features
Understand the important features of the projector .

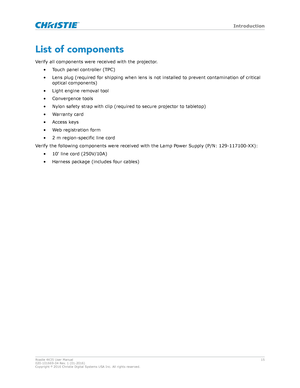

List of components
V erify all components were received with the projector.

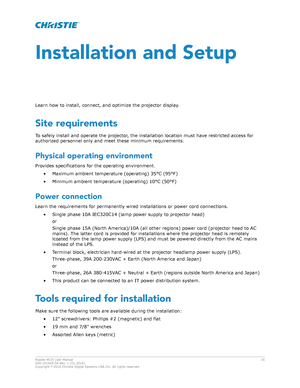

Installation and Setup
Learn how to install, connect, and optimiz e the projector display.
Site requirements
To safely install and operate the projector, the installation location must have restricted access for
authorized personnel only and meet these minimum requirements.
Physical operating environment
Provides specifications for the operating environment.

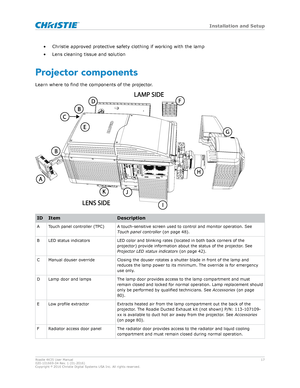

ID Item
Description
G Shroud (optional) Covers the motorized lens mount assembly (two-pieces).
H Projection lens A variety of lenses can be used with the Roadie 4K35. See  Accessories
(on page  80).
I Air filter cover and air filter Filters the intake air before it circulates through the front compartment to cool the main electronics. See Replacingthelightengineairfilter

(on
page 57).
J Input panel Provides a variety of ports for connecting external devices. See
Connectingdevices

(on page...

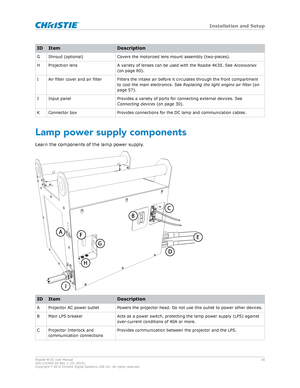

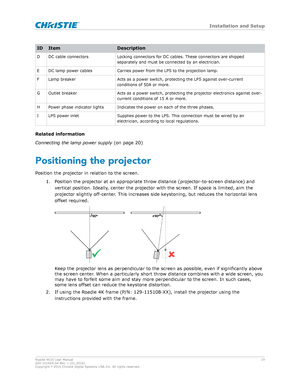

ID Item
Description
D DC cable connectors Locking connectors for DC cables. These connectors are shipped
separ ately and must be connected by an electrician.
E DC lamp power cables Carries power from the LPS to the projection lamp.
F Lamp breaker Acts as a power switch, protecting the LPS against over-current
conditions of 50A or more.
G Outlet breaker Acts as a power switch, protecting the projector electronics against o ver-
current conditions of 15 A or more.
H Power phase indicator lights Indicates...

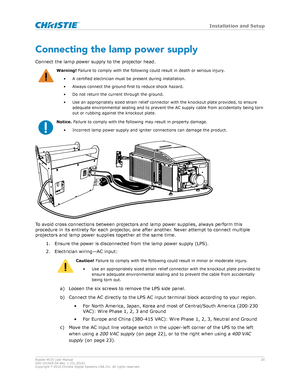

Connecting the lamp power supply
Connect the lamp power supply to the projector head. Warning!
F ailure to comply with the following could result in death or serious injury .
