Christie Projector Roadie 4K35 User Manual

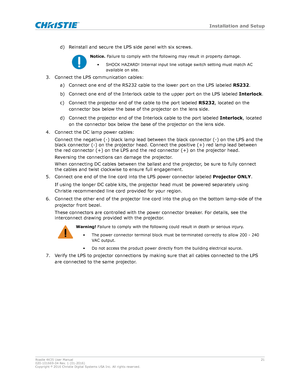

d) Reinstall and secure the LPS side panel with six screws.
Notice. Failure to comply with the following may result in property damage.

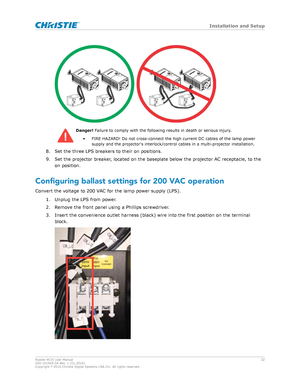

Danger! F
ailure to comply with the following results in death or serious injury .

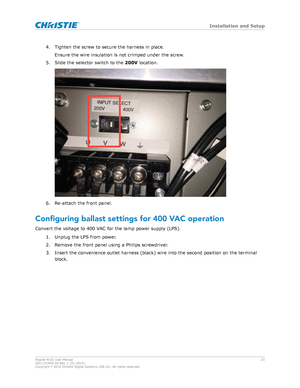

4. Tighten the screw to secure the harness in place.
Ensure the wire insulation is not crimped under the screw .
5. Slide the selector switch to the  200V location. 6. Re-attach the front panel.
Configuring
 ballast settings for 400 VAC operation
Convert the voltage to 400 VAC for the lamp power supply (LPS). 1. Unplug the LPS from power.
2. Remove the front panel using a Philips screwdriver.
3. Insert the convenience outlet harness (black) wire into the second position on the terminalblock. Installation...

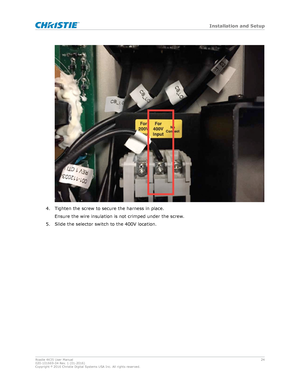

4. Tighten the screw to secure the harness in place.
Ensure the wire insulation is not crimped under the screw .
5. Slide the selector switch to the 400V location. Installation and Setup
Roadie 4K35 User Manual
24
020-101669-04 R
 ev. 1 (01-2016)
Copyright

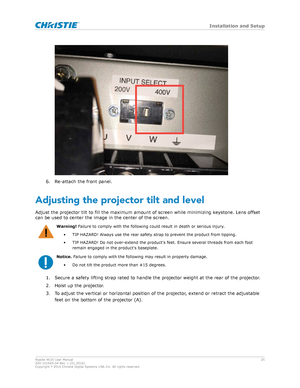

6. Re-attach the front panel.
Adjusting the pr ojector tilt and level
Adjust the projector tilt to fill the maximum amount of screen while minimizing k eystone. Lens offset
can be used to center the image in the center of the screen. Warning!
F
 ailure to comply with the following could result in death or serious injury .

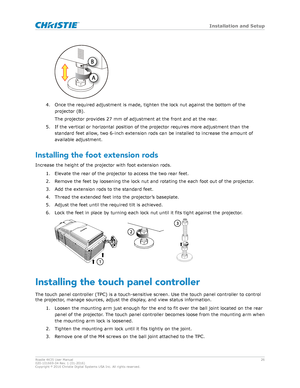

4. Once the required adjustment is made, tighten the lock nut against the bottom of the
projector (B).
The projector pro
vides 27 mm of adjustment at the front and at the rear.
5. If the vertical or horizontal position of the projector requires more adjustment than the standard feet allow, two 6-inch extension rods can be installed to increase the amount of
available adjustment.
Installing the foot extension rods Increase the height of the projector with foot extension rods. 1. Elevate the rear of the...

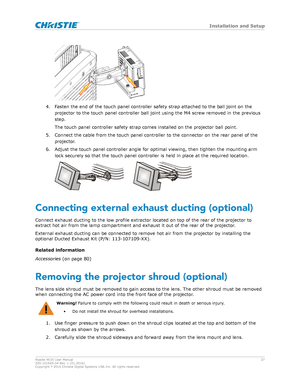

4. Fasten the end of the touch panel controller safety strap attached to the ball joint on the
projector to the touch panel controller ball joint using the M4 screw remo ved in the previous
step.
The touch panel controller safety strap comes installed on the projector ball point.
5. Connect the cable from the touch panel controller to the connector on the rear panel of the projector.
6. Adjust the touch panel controller angle for optimal viewing, then tighten the mounting arm lock securely so that the...

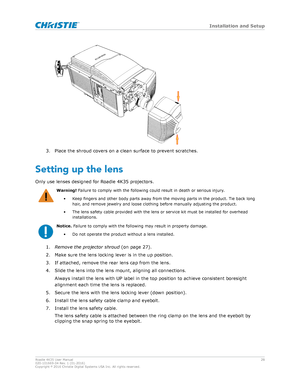

3. Place the shroud covers on a clean surface to prevent scratches.
Setting up the lens Only use lenses designed for
Roadie 4K35 projectors. Warning!
F
 ailure to comply with the following could result in death or serious injury .

8.
Calibratethelensmotors   (on page 63).
Related information
Workingwithlenses  (on page 46)
Removingtheprojectorshroud(optional)  (on page 27)

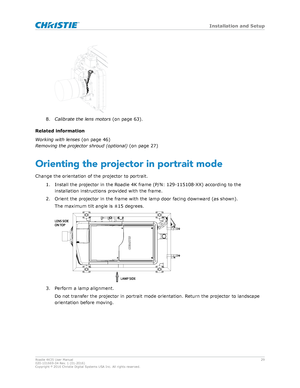

Orienting the projector in portrait mode Change the orientation of the projector to portrait. 1. Install the projector in the Roadie 4K frame (P/N: 129-115108-XX) according to theinstallation instructions provided with the frame.
2. Orient the projector in the frame with the lamp door facing downward (as shown). The maximum tilt angle is

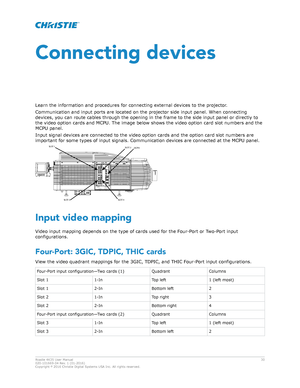

Connecting devices
Learn the information and procedures for connecting external devices to the projector .
Communication and input ports are located on the projector side input panel. When connecting
devices, you can route cables through the opening in the frame to the side input panel or directly to
the video option cards and MCPU. The image below shows the video option card slot numbers and the
MCPU panel.
Input signal devices are connected to the video option cards and the option card slot numbers...
