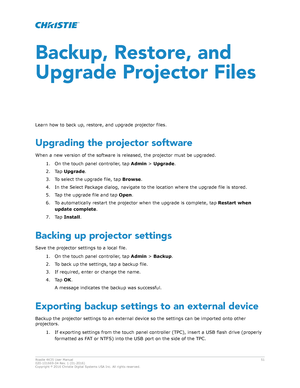

Christie Projector Roadie 4K35 User Manual

Backup, Restore, and
Upgrade Pr
ojector Files
Learn how to back up, restore, and upgrade projector files. Upgrading the projector software
When a new version of the software is released, the projector must be upgraded. 1. On the touch panel controller, tap  Admin > Upgrade .
2. Tap  Upgrade .
3. To select the upgrade file, tap  Browse.
4. In the Select Package dialog, navigate to the location where the upgrade file is stored.
5. Tap the upgrade file and tap  Open.
6. To automatically restart the...

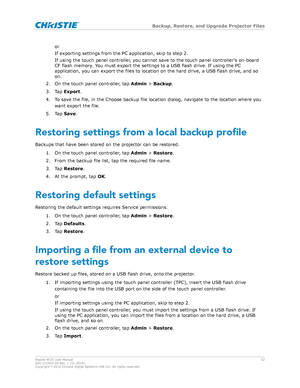

or
If exporting settings from the PC application, skip to step 2.
If using the touch panel controller
, you cannot save to the touch panel controller's on-board
CF flash memory. You must export the settings to a USB flash drive. If using the PC
application, you can export the files to location on the hard drive, a USB flash drive, and so
on.
2. On the touch panel controller, tap  Admin > Backup .
3. Tap  Export.
4. To save the file, in the Choose backup file location dialog, navigate to the location...

4. From the Choose file to restore dialog, navigate to the location where the file is stored.
5.
Tap the file to select it.
6. Tap  Open. Backup, Restore, and Upgrade Projector Files
Roadie 4K35 User Manual
53
020-101669-04 R
 ev. 1 (01-2016)

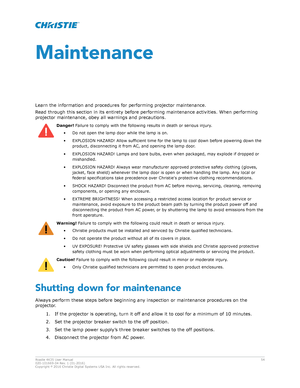

Copyright

Maintenance
Learn the information and procedures for performing projector maintenance.
R
ead through this section in its entirety before performing maintenance activities. When performing
projector maintenance, obey all warnings and precautions. Danger! F

ailure to comply with the following results in death or serious injury .

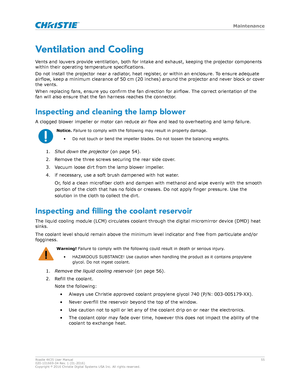

Ventilation and Cooling
V ents and louvers provide ventilation, both for intake and exhaust, keeping the projector components
within their operating temperature specifications.
Do not install the projector near a radiator, heat register, or within an enclosure. To ensure adequate
airflow, keep a minimum clearance of 50 cm (20 inches) around the projector and never block or cover
the vents.
When replacing fans, ensure you confirm the fan direction for airflow. The correct orientation of the
fan will also...

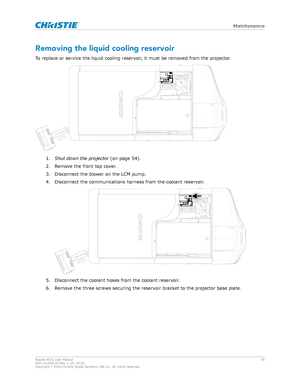

Removing the liquid cooling reservoir
T o replace or service the liquid cooling reservoir, it must be removed from the projector. 1.
Shutdowntheprojector  (on page
 54).
2. Remove the front top cover.
3. Disconnect the blower on the LCM pump.
4. Disconnect the communications harness from the coolant reservoir. 5. Disconnect the coolant hoses from the coolant reservoir.
6.

Remove the three screws securing the reservoir bracket to the projector base plate. Maintenance
Roadie 4K35 User Manual
56...

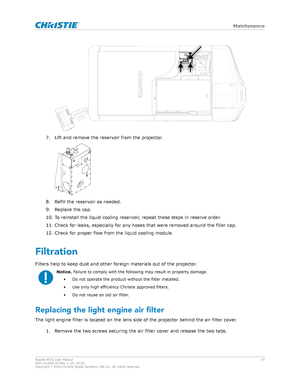

7. Lift and remove the reservoir from the projector.
8. Refill the reservoir as needed.
9.
Replace the cap.
10. To reinstall the liquid cooling reservoir, repeat these steps in reserve order.
11. Check for leaks, especially for any hoses that were removed around the filler cap.
12. Check for proper flow from the liquid cooling module.
Filtration Filters help to keep dust and other foreign materials out of the projector. Notice. F
ailure to comply with the following may result in property damage.

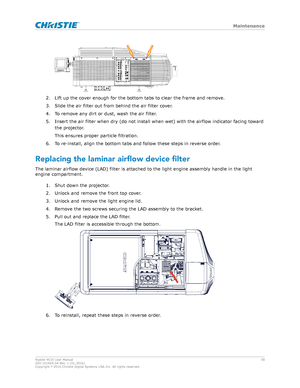

2. Lift up the cover enough for the bottom tabs to clear the frame and remove.
3. Slide the air filter out from behind the air filter cover.
4. To remove any dirt or dust, wash the air filter.
5. Insert the air filter when dry (do not install when wet) with the airflow indicator facing toward the projector.
This ensures proper particle filtration.
6. To re-install, align the bottom tabs and follow these steps in reverse order.
Replacing the laminar airflow device filter The laminar airflow device (LAD)...

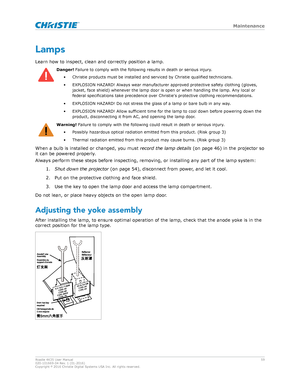

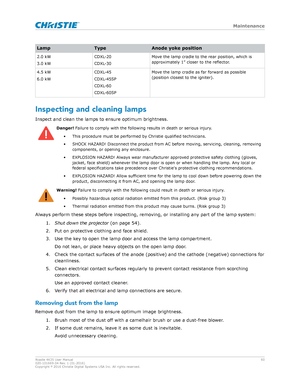

Lamps
Learn how to inspect, clean and correctly position a lamp .Danger! F

ailure to comply with the following results in death or serious injury .

Lamp
TypeAnode yoke position
2.0 kW
3.0 kW CDXL-20
CD
XL-30 Move the lamp cradle to the rear position, which is
appro
ximately 1” closer to the reflector.
4.5 kW
6.0 kW CDXL-45
CD

XL-45SP
CDXL-60
CDXL-60SP Move the lamp cradle as far forward as possible
(position closest to the igniter). Inspecting and cleaning lamps
Inspect and clean the lamps to ensure optimum brightness. Danger! F

ailure to comply with the following results in death or serious injury .
