Christie Projector Roadie 4K35 User Manual

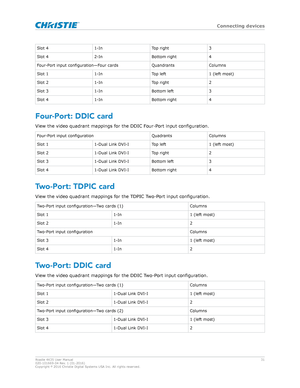

Slot 4
1-InTop right3
Slot 4 2-InBottom right4
Four-Port input configuration

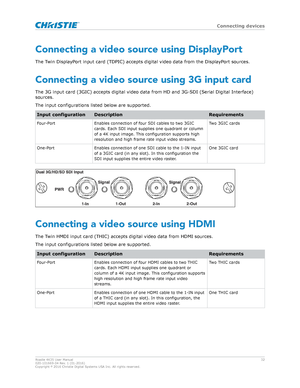

Connecting a video source using DisplayPort
The T win DisplayPort input card (TDPIC) accepts digital video data from the DisplayPort sources.
Connecting a video source using 3G input card The 3G input card (3GIC) accepts digital video data from HD and 3G- SDI (Serial Digital Interface)
sources.
The input configurations listed below are supported. Input configuration Description
Requirements
Four-Port Enables connection of four SDI cables to two 3GIC
cards. Each SDI input supplies one quadr

ant or...

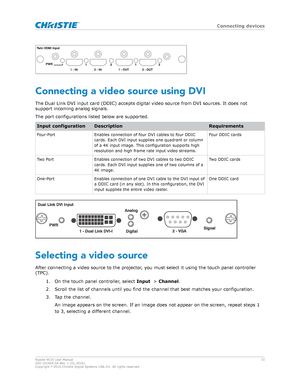

Connecting a video source using DVI
The Dual Link DVI input card (DDIC) accepts digital video source from DVI sources. It does not
support incoming analog signals.
The port configur
ations listed below are supported.Input configuration Description
Requirements
Four-Port Enables connection of four DVI cables to four DDIC
cards. Each DVI input supplies one quadr

ant or column
of a 4K input image. This configuration supports high
resolution and high frame rate input video streams. Four DDIC cards
Two Port...

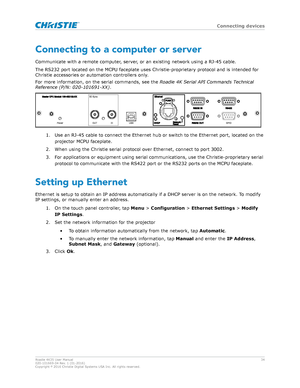

Connecting to a computer or server
Communicate with a remote computer
, server, or an existing network using a RJ-45 cable.
The RS232 port located on the MCPU faceplate uses Christie-proprietary protocol and is intended for
Christie accessories or automation controllers only.
For more information, on the serial commands, see the  Roadie4KSerialAP,CommandsTechnical
Reference(P/N:020-10191-XX) .1. Use an RJ-45 cable to connect the Ethernet hub or switch to the Ethernet port, located on the...

Adjusting the Image
Adjust the projector image.
Selecting the scr
een image rotation
The projector supports front projection, rear projection, front projection in verted, and rear projection
inverted.
1. On the touch panel controller, tap  Menu > Configuration  >  Screen Image Orientation  .
2. Select the required orientation from the list.
Maximizing light output To ensure optimal operation, use LampLOC to adjust the lamp position whenever a new lamp is
installed or changes in the projector orientation...

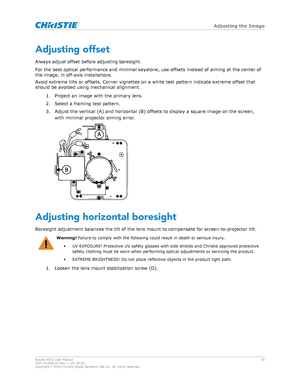

Adjusting offset
Alw ays adjust offset before adjusting boresight.
For the best optical performance and minimal keystone, use offsets instead of aiming at the center of
the image, in off-axis installations.
Avoid extreme tilts or offsets. Corner vignettes on a white test pattern indicate extreme offset that
should be avoided using mechanical alignment.
1. Project an image with the primary lens.
2. Select a framing test pattern.
3. Adjust the vertical (A) and horizontal (B) offsets to display a square...

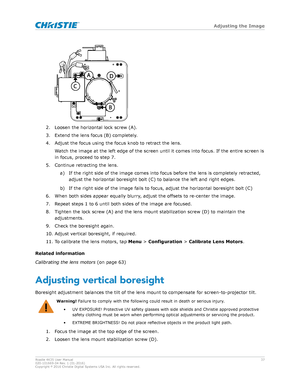

2. Loosen the horizontal lock screw (A).
3.
Extend the lens focus (B) completely.
4. Adjust the focus using the focus knob to retract the lens. Watch the image at the left edge of the screen until it comes into focus. If the entire screen is
in focus, proceed to step 7.
5. Continue retracting the lens. a) If the right side of the image comes into focus before the lens is completely retracted,adjust the horizontal boresight bolt (C) to balance the left and right edges.
b) If the right side of the image...

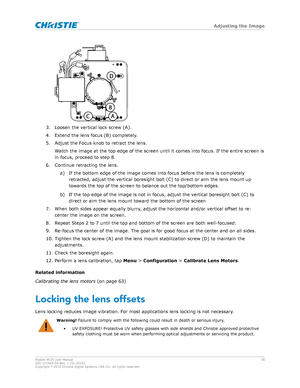

3. Loosen the vertical lock screw (A).
4.
Extend the lens focus (B) completely.
5. Adjust the Focus knob to retract the lens. Watch the image at the top edge of the screen until it comes into focus. If the entire screen is
in focus, proceed to step 8.
6. Continue retracting the lens. a) If the bottom edge of the image comes into focus before the lens is completelyretracted, adjust the vertical boresight bolt (C) to direct or aim the lens mount up
towards the top of the screen to balance out the...

Notice. Failure to comply with the following may result in property damage.

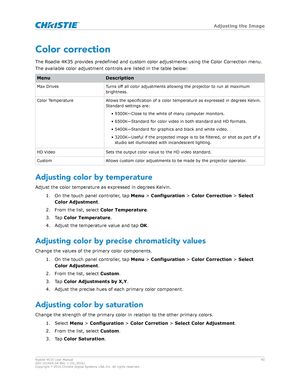

Color correction
The  Roadie 4K35 provides predefined and custom color adjustments using the Color Correction menu.
The available color adjustment controls are listed in the table below: Menu
Description
Max Drives Turns off all color adjustments allowing the projector to run at maximum
brightness.
Color Temperature Allows the specification of a color temperature as expressed in degrees Kelvin.
Standard settings are:
