Christie Projector Roadie 4K35 User Manual

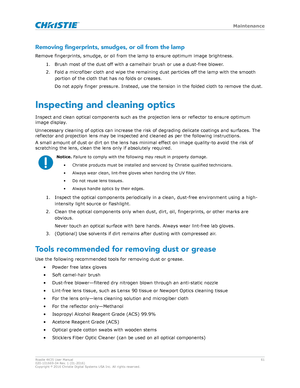

Removing fingerprints, smudges, or oil from the lamp
Remove fingerprints, smudge, or oil from the lamp to ensure optimum image brightness.
1. Brush most of the dust off with a camelhair brush or use a dust-free blower.
2. Fold a microfiber cloth and wipe the remaining dust particles off the lamp with the smoothportion of the cloth that has no folds or creases.
Do not apply finger pressure. Instead, use the tension in the folded cloth to remove the dust.
Inspecting and cleaning optics Inspect and clean...

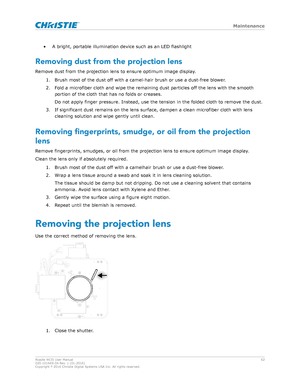

2. Disengage the carabiner from the eyebolt on the front face of the projector to detach the lens
safet y cable, if installed.
3. Attach a large lens cap to the front of the lens to avoid damage.
4. Remove the lens from the lens mount by sliding it outwards.
5. Release the lens locking lever (up position).
6. Pull the lens straight out and attach a small lens cap to the rear of the lens to avoid damage.
7. Attach the lens safety cable between the ring clamp on the lens and the eyebolt. The lens safety...

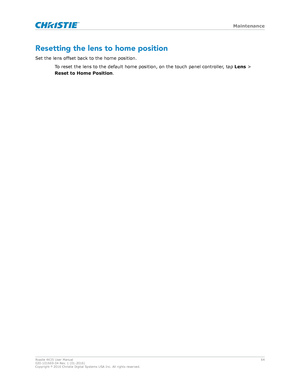

Resetting the lens to home position
Set the lens offset back to the home position. T
o reset the lens to the default home position, on the touch panel controller , tap Lens >
Reset to Home Position . Maintenance
Roadie 4K35 User Manual
64
020-101669-04 R
 ev. 1 (01-2016)
Copyright

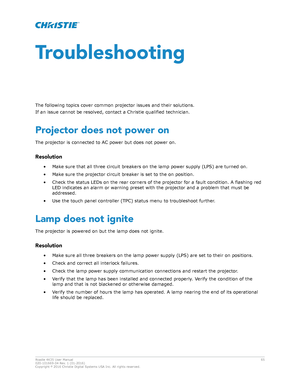

Troubleshooting
The following topics co ver common projector issues and their solutions.
If an issue cannot be resolved, contact a Christie qualified technician.
Projector does not power onThe projector is connected to AC power but does not power on.
Resolution

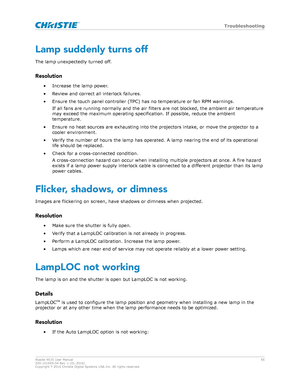

Lamp suddenly turns off
The lamp unexpectedly turned off .
Resolution

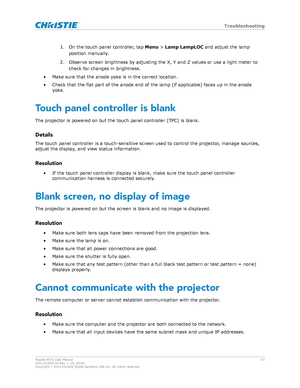

1. On the touch panel controller, tap
Menu > Lamp LampLOC and adjust the lamp
position manually .
2. Observe screen brightness by adjusting the X, Y and Z values or use a light meter to check for changes in brightness.

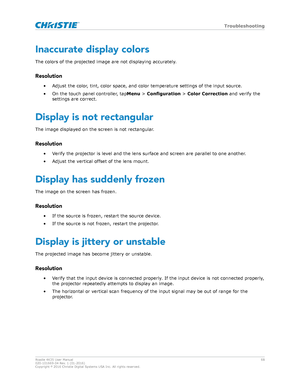

Inaccurate display colors
The colors of the projected image are not displa ying accurately.
Resolution

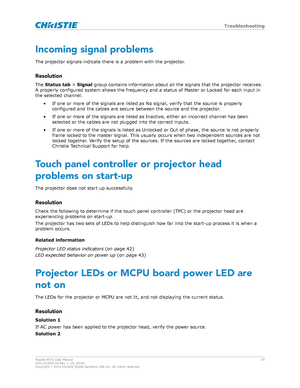

Incoming signal problems
The projector signals indicate there is a problem with the projector .
Resolution The  Status tab >  Signal group contains information about all the signals that the projector receiv es.
A properly configured system shows the frequency and a status of Master or Lock ed for each input in
the selected channel.

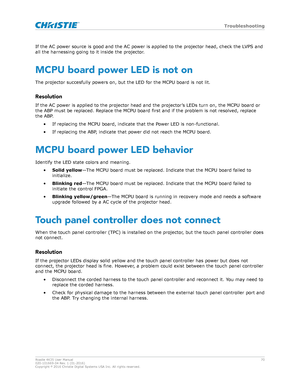

If the AC power source is good and the AC power is applied to the projector head, check the L
VPS and
all the harnessing going to it inside the projector .
MCPU board power LED is not on
The projector succesfully powers on, but the LED for the MCPU board is not lit.
Resolution If the AC power is applied to the projector head and the projector
