4. Adjust the hue of each primary color by using more or less of it in relation to the other
primary colors.

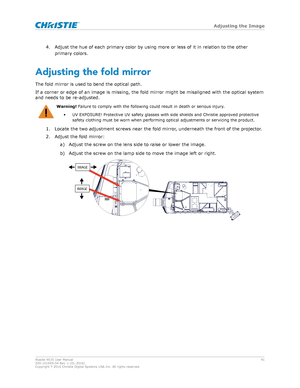

Adjusting the fold mirr
or
The fold mirror is used to bend the optical path.
If a corner or edge of an image is missing, the fold mirror might be misaligned with the optical system
and needs to be re-adjusted. Warning!
F
 ailure to comply with the following could result in death or serious injury .

Operation
Learn how to oper ate the projector.

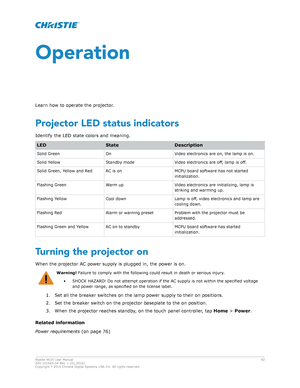

Projector LED status indicators
Identify the LED state colors and meaning. LED
StateDescription
Solid Green OnVideo electronics are on, the lamp is on.
Solid Yellow Standby modeVideo electronics are off, lamp is off.
Solid Green, Yellow and Red AC is on MCPU board software has not started
initialization.
Flashing Green Warm upVideo electronics are initializing, lamp is
striking and w

arming up.
Flashing Yellow Cool downLamp is off, video electronics and...

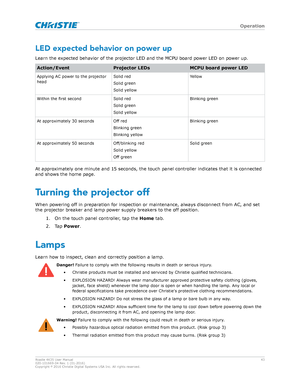

LED expected behavior on power up
Learn the expected beha vior of the projector LED and the MCPU board power LED on power up .Action/Event
Projector LEDsMCPU board power LED
Applying AC power to the projector
head Solid red
Solid green
Solid y

ellow Yellow
Within the first second Solid red
Solid green
Solid y

ellow Blinking green
At approximately 30 seconds Off red Blinking green
Blinking y

ellow Blinking green
At approximately 50 seconds Off/blinking red Solid y
ellow
Off green Solid greenAt...

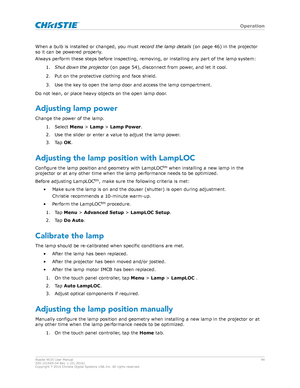

When a bulb is installed or changed, you must
recordthelampdetails (on page  46) in the projector
so it can be powered properly.
Always perform these steps before inspecting, removing, or installing any part of the lamp system:
1.Shutdowntheprojector  (on page 54), disconnect from power, and let it cool.
2. Put on the protective clothing and face shield.
3. Use the key to open the lamp door and access the lamp compartment.
Do not lean, or place heavy objects on the open lamp door.
Adjusting lamp...

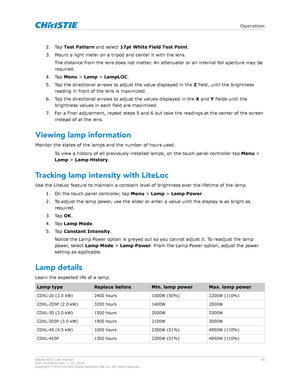

2. Tap
Test Pattern  and select 17pt White Field Test Point .
3. Mount a light meter on a tripod and center it with the lens.
The distance from the lens does not matter. An attenuator or an internal foil aperture may be
required.
4. Tap  Menu > Lamp  > LampLOC .
5. Tap the directional arrows to adjust the value displayed in the  Z field, until the brightness
reading in front of the lens is maximized.
6. Tap the directional arrows to adjust the values displayed in the  X and Y fields until the
brightness...

Lamp type
Replace before Min. lamp power Max. lamp power
CDXL-60 (6.0 kW) 600 hours2750W (46)6600W (110)
CDXL-60SP 800 hours2750W (46) 6600W (110)Recording new lamp information
Christie recommends choosing a distinct and descriptiv e name for every individual lamp. The lamp
serial number is an alphanumeric, user-defined field.
1. On the touch panel controller, tap  Menu > Lamp  > Change Lamp .
2. Enter a  Lamp Type,  Serial Number , and Hours Used .
3. Tap Apply Lamp Change .
4. Tap Continue.
Adding...

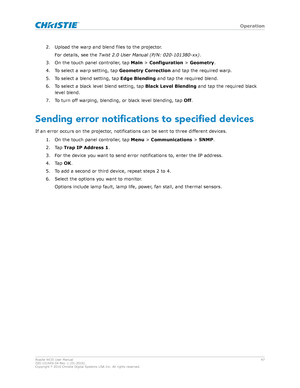

2. Upload the warp and blend files to the projector.
F or details, see the  Twist2.0UserManual(P/N:020-101380-xx) .
3. On the touch panel controller, tap  Main > Configuration >  Geometry.
4. To select a warp setting, tap  Geometry Correction and tap the required warp.
5. To select a blend setting, tap  Edge Blending and tap the required blend.
6. To select a black level blend setting, tap  Black Level Blending and tap the required black
level blend.
7. To turn off warping, blending, or black level...

Menus
Use the projector menus to adjust projector settings and view status information. T
ouch panel controller
Use the touch panel controller (TPC) to control the projector, manage sources, adjust the display, and
view status information.
The touch panel controller is a touch-sensitive screen. The touch panel controller is mounted on the
rear of the projector and can be adjusted to improve the touch panel controller viewing angle. A side
USB port can be used to download log files and install software...

Tab
Description

Menu
Description
