Part Names
9
Part Names

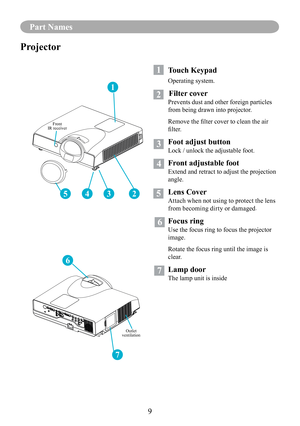

Projector
1 Touch Keypad
Operating system.
        Filter cover
Prevents dust and other foreign particles
from being drawn into projector.
Remove	the	filter	cover	to	clean	the	air
filter.
  Foot adjust button
Lock / unlock the adjustable foot.
 Front adjustable foot
Extend and retract to adjust the projection
angle.
 Lens Cover
Attach when not using to protect the lens
from becoming dirty or damaged
.
 Focus ring
Use the focus ring to focus the projector
image.
Rotate the...

10
Part Names
18 VOLUME + / -
Sound louder or lower.
9 MENU
Display or hide the OSD main menu
11 0 AUTO
Automatically adjust the setting to match
the current input.
1 1  (POWER)
Power On / Off.
112 BLANK
Blank the projected image. The time of
Blank mode can be set in 15 minutes, 30
minutes or 60 minutes. The projector will
shut down automatically after passing each
set time.

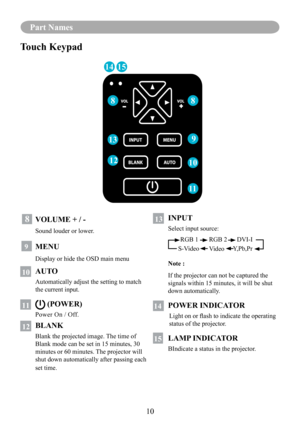

Touch Keypad
11 3 INPUT
Select input source:
Note :
If the projector can not be captured the
signals within 15 minutes, it...

11
Part Names

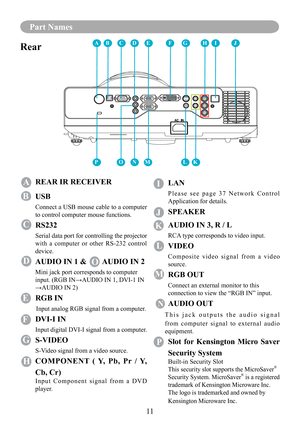

Rear
A REAR IR RECEIVER
B USB
Connect a USB mouse cable to a computer
to control computer mouse functions.
C RS232
Serial data port for controlling the projector
with  a  computer  or  other  RS-232  control
device.
D AUDIO IN 1 & O AUDIO IN 2
Mini jack port corresponds to computer
input.	(RGB	IN→AUDIO	IN	1,	DVI-1	IN
→AUDIO	IN	2)
E RGB IN
Input analog RGB signal from a computer.
F DVI-I IN
Input digital DVI-I signal from a computer.
G S-VIDEO
S-Video signal from a video source.
H...

Setting Up
12
Setting Up
When installed against a wall, leave about 20cm (7.9in.) between the p\
rojector and the wall.

52126.0
113.0
100.0
87.0
74.0
63.6
6070 8090100
Distance(cm)
Image size(inch)
Arrangement
1. Before installation, make sure that the projector is turned off and the power cord is disconnected.
2.  Do not set up and move the projector, while it is hot.
3.    The distance between the projector and screen determines the actual image size. Refer to the table
below to determine the screen...

13
Setting Up

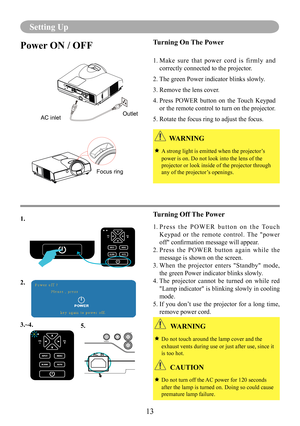

Power ON / OFFTurning On The Power
1.  Make  sure  that  power  cord  is  firmly  and
correctly connected to the projector.
2. The green Power indicator blinks slowly.
3. Remove the lens cover.
4.   Press  POWER  button  on  the  Touch  Keypad
or the remote control to turn on the projector.
5. Rotate the focus ring to adjust the focus.
Turning Off The Power
1.   P r e s s   t h e   P O W E R   b u t t o n   o n   t h e   To u c h
Keypad  or  the  remote  control.  The  "power...

14
Setting Up
Setting Up The Projector

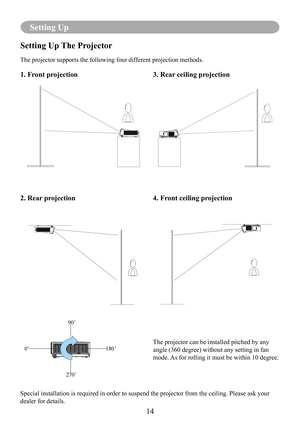

The projector supports the following four different projection methods.
1. Front projection
2. Rear projection3. Rear ceiling projection
4. Front ceiling projection
Special installation is required in order to suspend the projector from \
the ceiling. Please ask your
dealer for details.
0˚
180˚
270˚ 90˚The projector can be installed pitched by any
angle (360 degree) without any setting in fan
mode. As for rolling it must be within 10 degree.

15
Setting Up
Ceiling Mounted Installation Guide
Attach	ceiling	mount	at	four-suspension	bracket	fixing	points	when	suspending	from	a	ceiling.
Special installation is required in order to suspend the projector from \
the ceiling. Please ask your
dealer for details.
Security Anchor
The product is equipped with security anchor and PIN
LOCK (See page 33 for detials) functions to help prevent
unauthorized removal of the projector.MAX M4x8 mm For Mounting
WARNING
►Do	not	grasp	the	security	anchor	to...

16
Setting Up
Adjusting The Projector’s Elevation

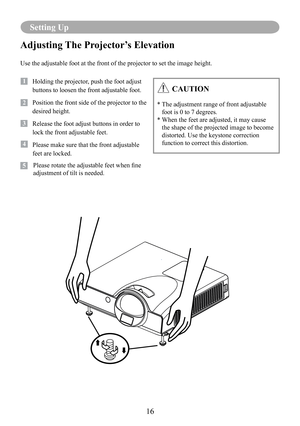

Use the adjustable foot at the front of the projector to set the image h\
eight.
1   Holding the projector, push the foot adjust
buttons to loosen the front adjustable foot.
12   Position the front side of the projector to the
desired height.
3   Release the foot adjust buttons in order to
lock the front adjustable feet.
14   Please make sure that the front adjustable
feet are locked.
									 Please	rotate	the	adjustable	feet	when	fine
adjustment...

17
Setting Up
Before starting, make sure that the projector and computer are both turn\
ed off.
Connect the computer
Connect the computer cable from the computer to the projector's RGB IN o\
r DVI-I IN.
Connect a computer cable from the MONITOR OUT to an external monitor to view the
signal on RGB IN or DVI-I IN. Tighten the screw on all connectors.

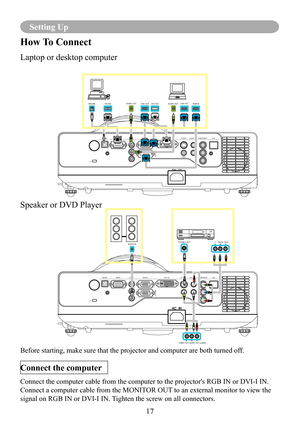

How To Connect
Laptop or desktop computer
AUDI O OU TMOUSERS-232A UDI O OU TDVI OUTVGA OUTVGA OUTRGB IN
AUDI O IN
VIDEO OUT A UDIO OUT (L)& (R )
S-VID...

18
Setting Up
How To Connect
Laptop or desktop computer

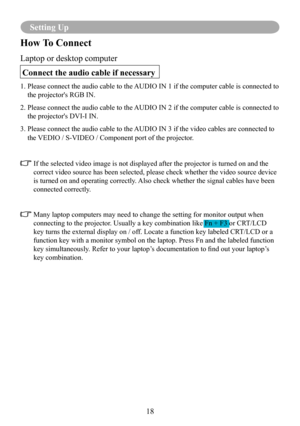

 Connect the audio cable if necessary
1.  Please connect the audio cable to the AUDIO IN 1 if the computer cable is connected to
the projector's RGB IN.
2.    Please connect the audio cable to the AUDIO IN 2 if the computer cable is connected to
the projector's DVI-I IN.
3.   Please connect the audio cable to the AUDIO IN 3 if the video cables are connected to
the VEDIO / S-VIDEO / Component port of the projector.

  If the selected...
