MENU
Advanced Menu

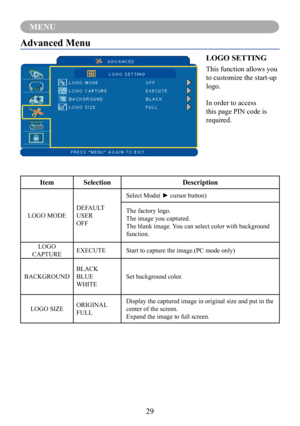

LOGO SETTING
This function allows you
to customize the start-up
logo.
In order to access
this page PIN code is
required.

Item Selection Description
LOGO MODEDEFAULT
USER
OFF Select	Mode(	►	cursor	button)
The factory logo.
The image you captured.
The blank image. You can select color with background
function.
LOGO
CAPTURE EXECUTE
Start to capture the image.(PC mode only)
BACKGROUND BLACK
BLUE
WHITESet background color.
LOGO SIZE ORIGINAL
FULL Display the captured image in...

30
MENU
NOTE	 ►You	can	capture	an	image	only	in	computer	mode.
	 ►The	area	that	can	be	captured	is	512	x	384	dots.
Advanced Menu

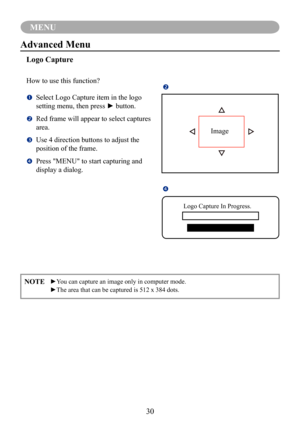

Logo Capture
How to use this function?
		 Select Logo Capture item in the logo
setting	menu,	then	press	►	button.
		 Red frame will appear to select captures
area.
		 Use 4 direction buttons to adjust the
position of the frame.
		 Press "MENU" to start capturing and
display a dialog. 

Logo Capture In Progress.

31
MENU
Presentation Menu
Step:
1.			Use	the	▲	/▼buttons
to select an item.
2.			 Use 	the 	◄ 	/ 	► 	buttons
to select an item or
adjust the value.
Item Selection Description
AUTO CEILINGOFF / ONAutomatically invert the image when the projector is turned
upside down, i.e. when the projector is mounted on the
ceiling.
FRONT EXECUTENormal projection mode.
CEILING EXECUTEMirror the image vertically, only for the projector mounted
upside down.
REAR EXECUTEMirror the image horizontally, only for...

32
MENU
NOTE
►		The	replacement	warning	message	is	set	to	appear	after	about	4000	hours	of	lamp	use	in	order
to maintain the initial brightness. When replacement message appears, replace the lamp with a
new one as soon as possible, even if the lamp is still workable.
Presentation Menu

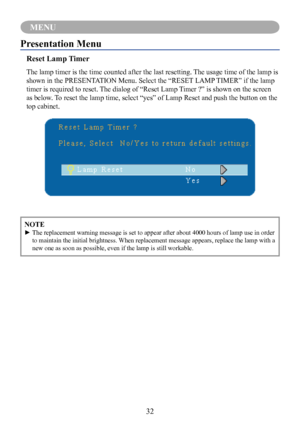

Reset Lamp Timer
The lamp timer is the time counted after the last resetting. The usage time of the lamp is
shown in the PRESENTATION Menu. Select the “RESET LAMP TIMER” if the lamp
timer is required to reset. The...

33
MENU

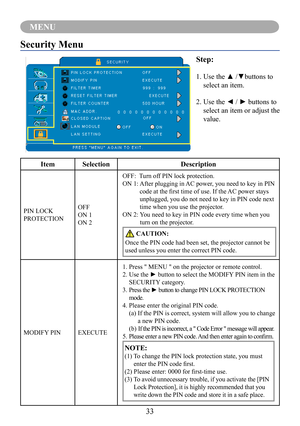

Security Menu
Step:
1.			Use	the	▲	/▼buttons	to
select an item.
2.			 Use	the	◄	/	►	buttons	to
select an item or adjust the
value.
Item Selection Description
PIN LOCK
PROTECTIONOFF
ON 1
ON 2OFF:
   Turn off PIN lock protection.
ON 1:
After plugging in AC power, you need to key in PIN
code	at	the	first	time	of	use.	If	the	 AC	power	stays
unplugged, you do not need to key in PIN code next
time when you use the projector.
ON 2:    You need to key in PIN code every time when you
turn on...

34
MENU
Security Menu
Step:
1.			Use	the	▲	/▼buttons	to
select an item.
2.			 Use	the	◄	/	►	buttons	to
select an item or adjust the
value.

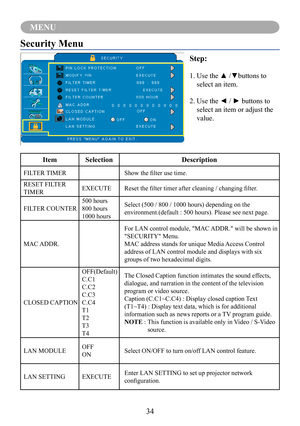

Item Selection Description
FILTER TIMER Show	the	filter	use	time.
RESET FILTER
TIMER EXECUTE
Reset	the	filter	timer	after	cleaning	/	changing	filter.
FILTER COUNTER 500 hours
800 hours
1000 hoursSelect (500 / 800 / 1000 hours) depending on the
environment.(default : 500 hours). Please see next page.
MAC ADDR. For LAN control module, "MAC ADDR." will be...

35
MENU
Security Menu
Step:
1.			Use	the	▲	/▼buttons	to
select an item.
2.			 Use	the	◄	/	►	buttons	to
select an item or adjust the
value.

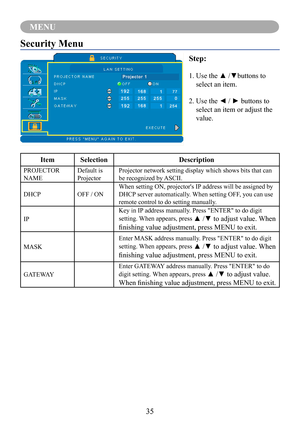

Item Selection Description
PROJECTOR
NAMEDefault is
ProjectorProjector network setting display which shows bits that can
be recognized by ASCII.
DHCP OFF / ONWhen setting ON, projector's IP address will be assigned by
DHCP server automatically. When setting OFF, you can use
remote control to do setting manually.
IP Key in IP address manually. Press...

36
MENU
NOTE
►	Please	reset	the	Filter	time	only	when	you	replace	the	filter.

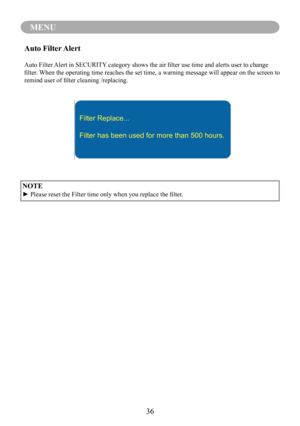

Auto Filter Alert
Auto	Filter	Alert	in	SECURITY 	category	shows	the	air	filter	use	time	and	alerts	user	to	change
filter.	 When	the 	operating	time 	reaches	the	set	time,	a 	warning	message 	will	appear	on	the	screen	to
remind	user	of	filter	cleaning	/replacing.
Filter Replace...
Filter has been used for more than 500 hours.

37
MENU

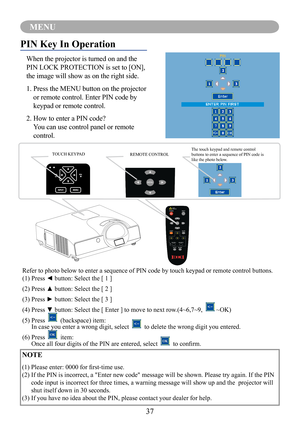

PIN Key In Operation
When the projector is turned on and the
PIN LOCK PROTECTION is set to [ON],
the image will show as on the right side.
1.  Press the MENU button on the projector
or remote control. Enter PIN code by
keypad or remote control.
2.    How to enter a PIN code?
You can use control panel or remote
control.
(1)	Press	◄	button:	Select	the	[	1	]
(2)	Press	▲	button:	Select	the	[	2	]
(3)	Press	►	button:	Select	the	[	3	]
(4)	Press	▼	button:	Select	the	[	Enter	]	to	move	to	next...

Network Control Software Application
38
Network Control Software Application

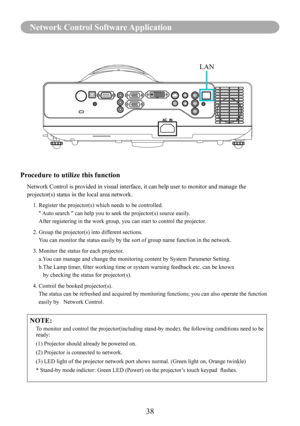

LAN
Procedure to utilize this function
Network Control is provided in visual interface, it can help user to mon\
itor and manage the
projector(s) status in the local area network.
1.   Register the projector(s) which needs to be controlled.
" Auto search " can help you to seek the projector(s) source easily.
After registering in the work group, you can start to control the projec\
tor.
2.   Group the projector(s)...
