Eiki Lc-Xsp2600 Multimedia Projector Owners Manual

19
Remote Control

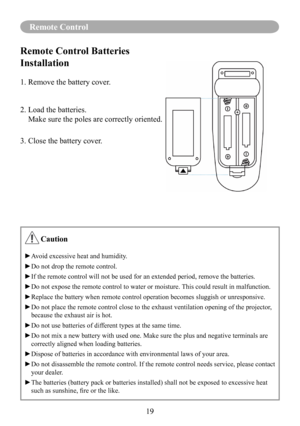

Remote Control Batteries
Installation
1. Remove the battery cover.
2. Load the batteries.
   Make sure the poles are correctly oriented.
3. Close the battery cover.
 Caution
►Avoid	excessive	heat	and	humidity.
►Do	not	drop	the	remote	control.
►	 If	the	remote	control	will	not	be	used	for	an	extended	period,	remove	the	batteries.
►	 Do	not	expose	the	remote	control	to	water	or	moisture.	 This	could	result	in	malfunction.
►	 Replace	the	battery	when	remote	control	operation	becomes...

Remote Control (Optional)

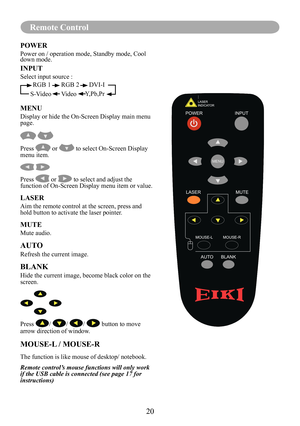

20
Remote Control
POWER
Power on / operation mode, Standby mode, Cool
down mode.
INPUT
Select input source :
MENU
Display or hide the On-Screen Display main menu
page.

Press  or  to select On-Screen Display
menu item.

Press  or  to select and adjust the
function of On-Screen Display menu item or value.
LASER
Aim the remote control at the screen, press and
hold button to activate the laser pointer.
MUTE
Mute audio.
AUTO
Refresh the current image.
BLANK
Hide the current...

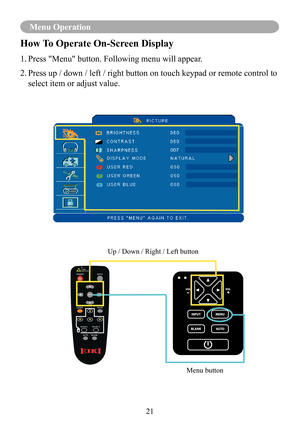

21
Menu Operation
How To Operate On-Screen Display
1.  Press "Menu" button. Following menu will appear.
2.   Press up / down / left / right button on touch keypad or remote control \
to
select item or adjust value.
Up / Down / Right / Left button
Menu button
007

MENU (PC Mode)

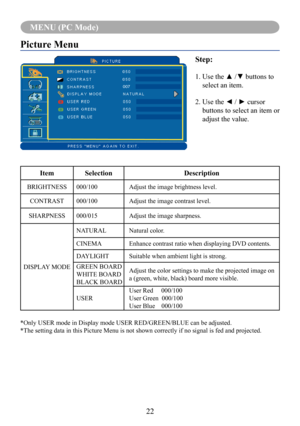

22
MENU (PC Mode)
Picture Menu
Step:
1.			Use	the	▲	/▼	buttons	to
select an item.
2.			 Use	the	◄	/	►	cursor
buttons to select an item or
adjust the value.
Item Selection Description
BRIGHTNESS000/100 Adjust the image brightness level.
CONTRAST 000/100 Adjust the image contrast level.
SHARPNESS 000/015 Adjust the image sharpness.
DISPLAY MODE NATURAL
Natural color.
CINEMA Enhance contrast ratio when displaying DVD contents.
DAYLIGHT Suitable when ambient light is strong.
GREEN BOARD...

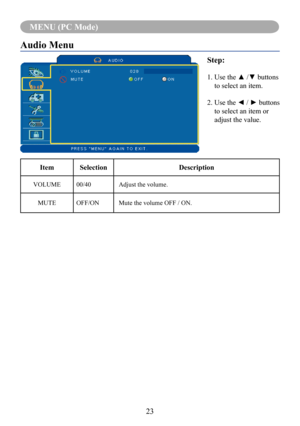

23
MENU (PC Mode)
Audio Menu
Step:
1.			Use	the	▲	/▼	buttons
to select an item.
2.			 Use 	the 	◄ 	/ 	► 	buttons
to select an item or
adjust the value.
Item Selection Description
VOLUME00/40Adjust the volume.
MUTE OFF/ON Mute the volume OFF / ON.

24
MENU (PC Mode)

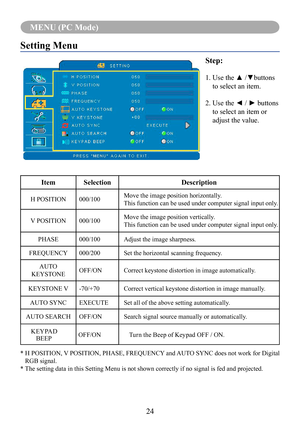

Setting Menu
Step:
1.			Use	the	▲	/▼buttons
to select an item.
2.			 Use	the	◄	/	►	buttons
to select an item or
adjust the value.
Item Selection Description
H POSITION000/100Move the image position horizontally.
This function can be used under computer signal input only.
V POSITION 000/100Move the image position vertically.
This function can be used under computer signal input only.
PHASE 000/100 Adjust the image sharpness.
FREQUENCY 000/200Set the horizontal scanning frequency....

MENU (Video Mode)

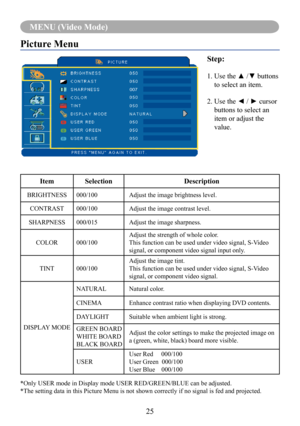

25
MENU (Video Mode)
Picture Menu
Step:
1.			Use	the	▲	/▼	buttons
to select an item.
2.			 Use	the	◄	/	►	cursor
buttons to select an
item or adjust the
value.
Item Selection Description
BRIGHTNESS000/100 Adjust the image brightness level.
CONTRAST 000/100 Adjust the image contrast level.
SHARPNESS 000/015 Adjust the image sharpness.
COLOR 000/100 Adjust the strength of whole color.
This function can be used under video signal, S-Video
signal, or component video signal input only....

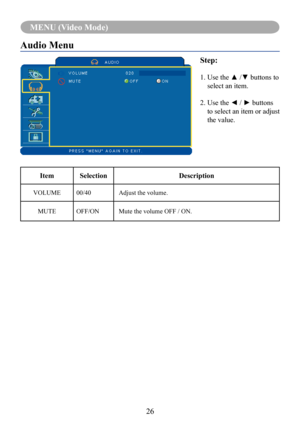

26
MENU (Video Mode)
Audio Menu
Step:
1.			Use	the	▲	/▼	buttons	to
select an item.
2.			 Use	the	◄	/	►	buttons
to select an item or adjust
the value.
Item Selection Description
VOLUME00/40Adjust the volume.
MUTE OFF/ON Mute the volume OFF / ON.

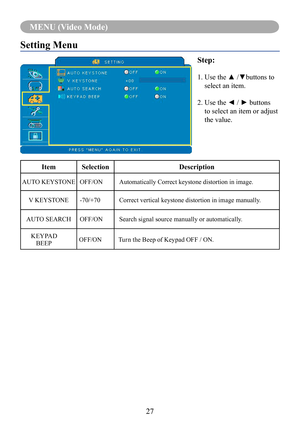

27
MENU (Video Mode)
Setting Menu
Step:
1.			Use	the	▲	/▼buttons	to
select an item.
2.			 Use	the	◄	/	►	buttons
to select an item or adjust
the value.
Item Selection Description
AUTO KEYSTONEOFF/ONAutomatically Correct keystone distortion in image.
V KEYSTONE  -70/+70Correct vertical keystone distortion in image manually.
AUTO SEARCH OFF/ONSearch signal source manually or automatically.
KEYPAD  BEEP OFF/ON
Turn the Beep of Keypad OFF / ON.

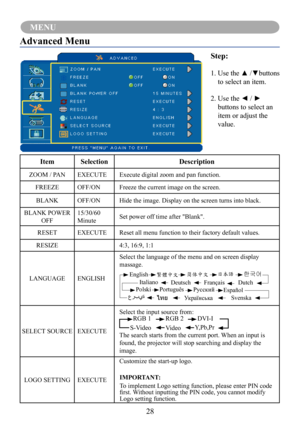

28
MENU
Advanced Menu
Step:
1.			Use 	the 	▲ 	/▼buttons
to select an item.
2.			 Use	the	◄	/	►
buttons to select an
item or adjust the
value.
Item Selection Description
ZOOM / PANEXECUTEExecute digital zoom and pan function.
FREEZE OFF/ONFreeze the current image on the screen.
BLANK OFF/ON Hide the image. Display on the screen turns into black.
BLANK POWER OFF 15/30/60
Minute
Set power off time after "Blank".
RESET EXECUTE Reset all menu function to their factory default values.
RESIZE 4:3,...
