Eiki Lc-Xsp2600 Multimedia Projector Owners Manual

59

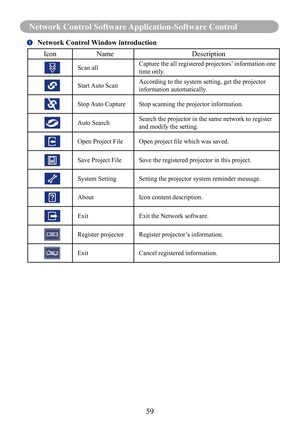

Network Control Software Application-Software Control
	Network Control Window introduction
Icon
Name Description
Scan allCapture the all registered projectors’ information one
time only.
Start Auto ScanAccording to the system setting, get the projector
information automatically.
Stop Auto Capture
Stop scanning the projector information.
Auto SearchSearch the projector in the same network to register
and modify the setting.
Open Project File
Open	project	file	which	was	saved.
Save Project FileSave...

60

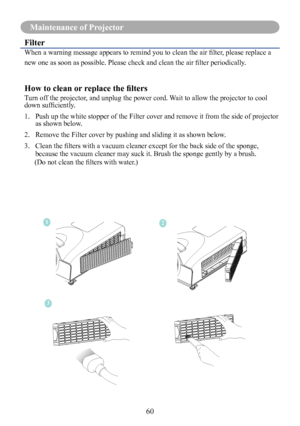

Maintenance of Projector
Filter
When	a	warning	message	appears	to	remind	you	to	clean	the	air	filter,	please	replace	a
new	one	as	soon	as	possible.	Please	check	and	clean	the	air	filter	periodically.
How to clean or replace the filters
Turn off the projector, and unplug the power cord. Wait to allow the projector to cool
down	sufficiently.
1.   Push up the white stopper of the Filter cover and remove it from the side of projector
as shown below.
2.    Remove the Filter cover by pushing and...

61

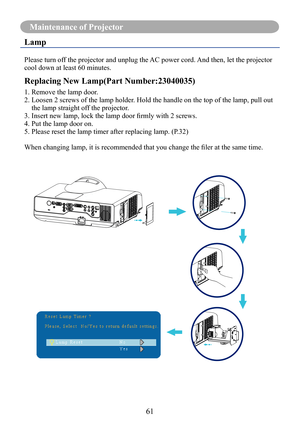

Maintenance of Projector
Lamp
Please turn off the projector and unplug the AC power cord. And then, let the projector
cool down at least 60 minutes.
Replacing New Lamp(Part Number:23040035)
1. Remove the lamp door.
2.  Loosen 2 screws of the lamp holder. Hold the handle on the top of the lamp, pull out
the lamp straight off the projector.
3.	Insert	new	lamp,	lock	the	lamp	door	firmly	with	2	screws.
4. Put the lamp door on.
5. Please reset the lamp timer after replacing lamp. (P.32)
When	changing...

62

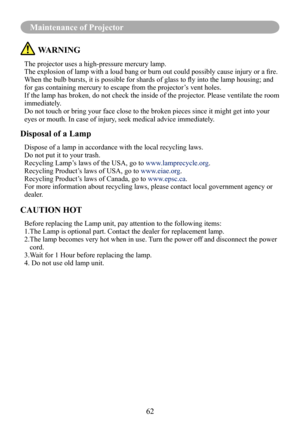

Maintenance of Projector
 WARNING
The projector uses a high-pressure mercury lamp.
The	explosion	of	lamp	with	a	loud	bang	or	burn	out	could	possibly	cause	injury	or	a	fire.
When	the	bulb	bursts,	it	is	possible	for	shards	of	glass	to	fly	into	the	lamp	housing;	and
for gas containing mercury to escape from the projector’s vent holes.
If the lamp has broken, do not check the inside of the projector. Please ventilate the room
immediately.
Do not touch or bring your face close to the broken pieces since...

63

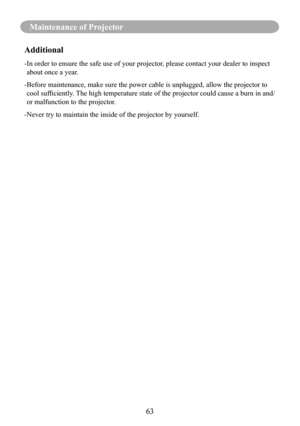

Maintenance of Projector
Additional
- In order to ensure the safe use of your projector, please contact your dealer to inspect
about once a year.
-  Before maintenance, make sure the power cable is unplugged, allow the pr\
ojector to
cool	sufficiently.	 The	high	temperature	state	of	the	projector	could	cause	a	burn	in	and/
or malfunction to the projector.
-Never try to maintain the inside of the projector by yourself.

64

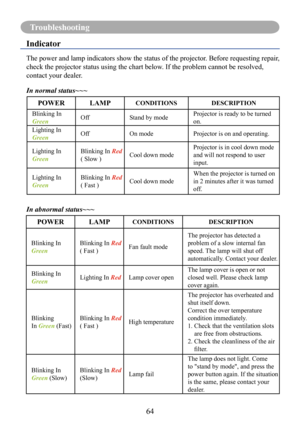

Troubleshooting
Indicator
The power and lamp indicators show the status of the projector. Before requesting repair,
check the projector status using the chart below. If the problem cannot be resolved,
contact your dealer.
In normal status~~~
POWERLAMPCONDITIONS DESCRIPTION
Blinking In
Green Off
Stand by mode Projector is ready to be turned
on.
Lighting In
Green Off
On mode Projector is on and operating.
Lighting In
Green Blinking In
Red
( Slow ) Cool down mode Projector is in cool down mode...

65

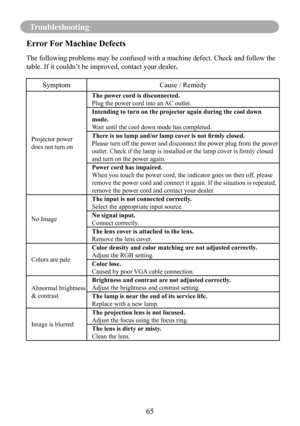

Troubleshooting
Error For Machine Defects
The following problems may be confused with a machine defect. Check and \
follow the
table. If it couldn’t be improved, contact your dealer.
SymptomCause / Remedy
Projector power
does not turn onThe power cord is disconnected.
Plug the power cord into an AC outlet.
Intending to turn on the projector again during the cool down
mode.
Wait until the cool down mode has completed.
There is no lamp and/or lamp cover is not firmly closed.
Please turn off the power...

66

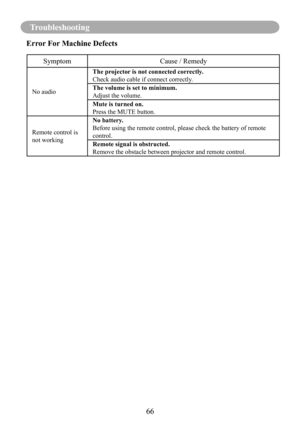

Troubleshooting
Error For Machine Defects
SymptomCause / Remedy
No audioThe projector is not connected correctly.
Check audio cable if connect correctly.
The volume is set to minimum.
Adjust the volume.
Mute is turned on.
Press the MUTE button.
Remote control is
not working No battery.
Before using the remote control, please check the battery of remote
control.
Remote signal is obstructed.
Remove the obstacle between projector and remote control.

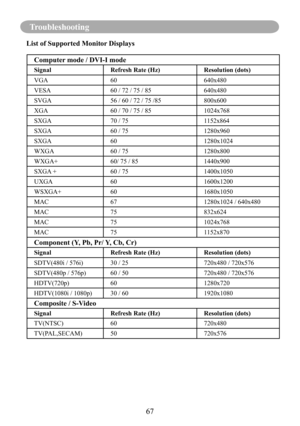

67
Troubleshooting
List of Supported Monitor Displays
Computer mode / DVI-I mode
SignalRefresh Rate (Hz) Resolution (dots)
VGA 60 640x480
VESA 60 / 72 / 75 / 85 640x480
SVGA 56 / 60 / 72 / 75 /85 800x600
XGA 60 / 70 / 75 / 85 1024x768
SXGA 70 / 75 1152x864
SXGA 60 / 75 1280x960
SXGA 60 1280x1024
WXGA 60 / 75 1280x800
WXGA+ 60/ 75 / 85 1440x900
SXGA + 60 / 75 1400x1050
UXGA 60 1600x1200
WSXGA+ 60 1680x1050
MAC 67 1280x1024 / 640x480
MAC 75 832x624
MAC 75 1024x768
MAC 75 1152x870
Component (Y, Pb, Pr/ Y,...

Appendix

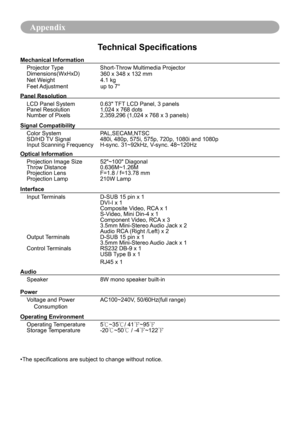

Technical Specifications
•The specifications are subject to change without notice. Mechanical InformationProjector Type Short-Throw Multimedia Projector
Dimensions(WxHxD) 360 x 348 x 132 mm
Net Weight 4.1 kg
Feet Adjustment up to 7°
Panel Resolution LCD Panel System 0.63" TFT LCD Panel, 3 panels
Panel Resolution 1,024 x 768 dots
Number of Pixels 2,359,296 (1,024 x 768 x 3 panels)
Signal Compatibility Color System PAL,SECAM,NTSC
SD/HD TV Signal 480i, 480p, 575i, 575p, 720p, 1080i and 1080p...
