Network Control Software Application-Software Control

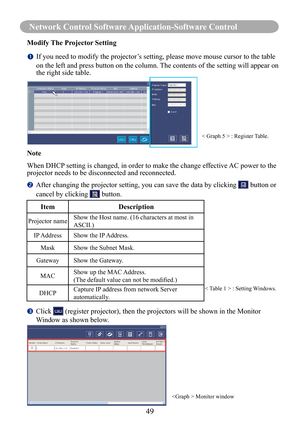

		Click  (register projector), then the projectors will be shown in the Monitor
Window as shown below.
 Monitor window
		 After changing the projector setting, you can save the data by clicking \
 button or
cancel by clicking
 button.
Item Description
Projector nameShow the Host name. (16 characters at most in
ASCII.)
IP Address Show the IP Address.
Mask Show the Subnet Mask.
Gateway Show the Gateway.
MAC Show up the MAC Address.
(The	default...

50
Network Control Software Application-Software Control

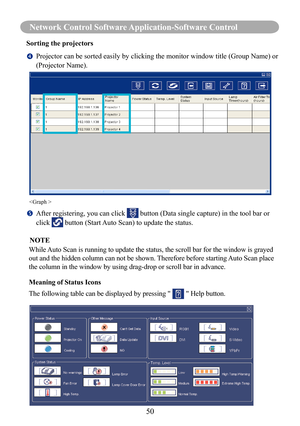

Sorting the projectors
		Projector can be sorted easily by clicking the monitor window title (Gr\
oup Name) or
(Projector Name).
		After registering, you can click  button (Data single capture) in the tool bar or
click
 button (Start Auto Scan) to update the status.
NOTE

While Auto Scan is running to update the status, the scroll bar for the window\
 is grayed
out and the hidden column can not be shown. Therefore before starting Auto Scan...

51
Network Control Software Application-Software Control
Delete
			 Select the registered projector in monitor window. Click mouse right key and select
"Delete" to erase the registered projector data.

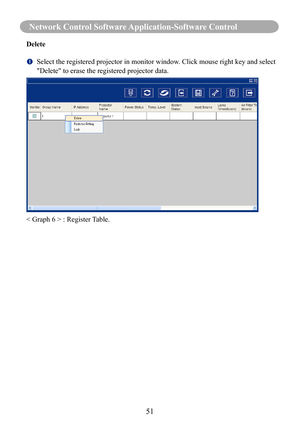

< Graph 6 > : Register Table.

52
Network Control Software Application-Software Control
Projector Setting (Setting for individual projector)
		Select the registered projector in monitor window. Click mouse right key and select
							 "projector	setting"	to	modify	the	registered	projector	data.	 After	finishing	the	setting,
you can save by clicking
 button or cancel by clicking  button.

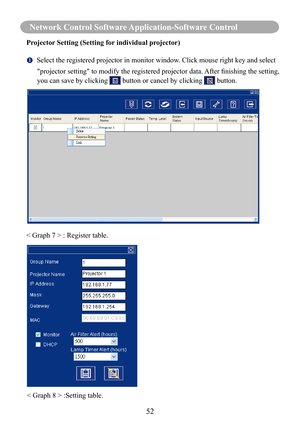

< Graph 7 > : Register table.
< Graph 8 > :Setting table.

53
Network Control Software Application-Software Control
System Setting (Setting for all projectors)

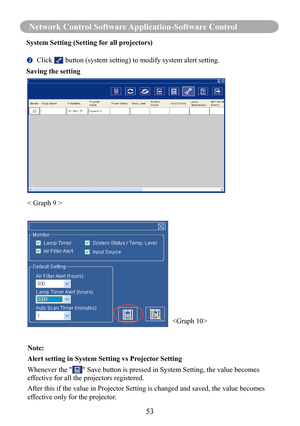

	Click  button (system setting) to modify system alert setting.
Saving the setting

< Graph 9 >Note:
Alert setting in System Setting vs Projector Setting
Whenever the "
" Save button is pressed in System Setting, the value becomes
effective for all the projectors registered.
After this if the value in Projector Setting is changed and saved, the v\
alue becomes
effective only for the projector.

54
Network Control Software Application-Software Control

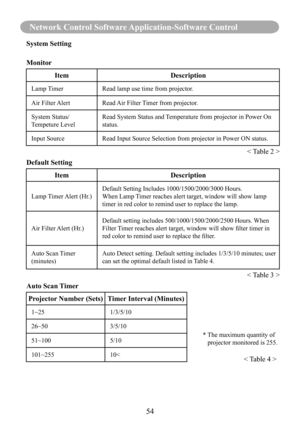

System Setting
Monitor
ItemDescription
Lamp TimerRead lamp use time from projector.
Air Filter Alert Read Air Filter Timer from projector.
System Status/
Tempeture Level Read System Status and Temperature from projector in Power On
status.
Input Source Read Input Source Selection from projector in Power ON status.
< Table 2 >
Default Setting
Item Description
Lamp Timer Alert (Hr.)Default Setting Includes 1000/1500/2000/3000 Hours.
When Lamp Timer...

55
Network Control Software Application-Software Control
Saving the Project File
Save	the	Configuration	above	as	Project	File	by	clicking	the	save	button	in	the	Tool	bar
in the Monitor window before closing Network Control Software.
If	it	is	not	saved,	all	the	configuration	above	will	be	lost.
From	next	time	after	starting	this	Network	Control	Software	the	configuration	can	be
recovered easily by opening the Project File.

56
Network Control Software Application-Software Control
Link(Controlling Projector)
		Select the registered projector in monitor window. Click mouse right key and select
"Link" to show the control panel table and the projector connecting stat\
us.

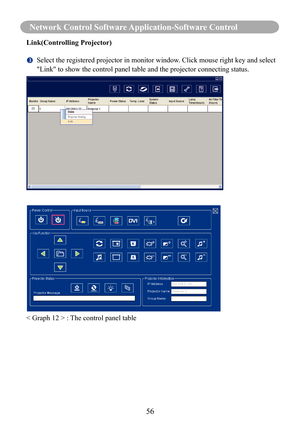

< Graph 12 > : The control panel table

57
Network Control Software Application-Software Control

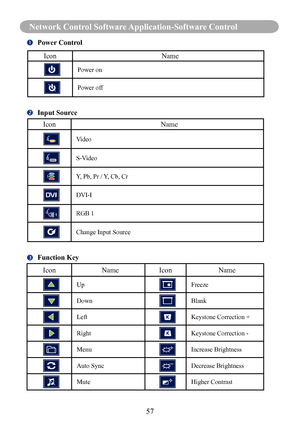

		Power Control
Icon
Name
Power on
Power off
		Input Source
Icon
Name
Video
S-Video
Y, Pb, Pr / Y, Cb, Cr
DVI-I
RGB 1
Change Input Source
		Function Key
Icon
NameIcon Name
UpFreeze
DownBlank
LeftKeystone Correction +
RightKeystone Correction -
MenuIncrease Brightness
Auto SyncDecrease Brightness
MuteHigher Contrast

58
Network Control Software Application-Software Control

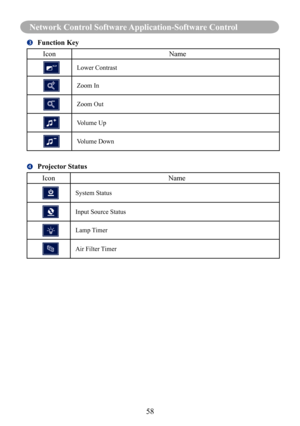

	Function Key
Icon
Name
Lower Contrast
Zoom In
Zoom Out
Volume Up
Volume Down
	Projector Status
Icon
Name
System Status
Input Source Status
Lamp Timer
Air Filter Timer
