Eiki Lc-Xsp2600 Multimedia Projector Owners Manual

Here you can view all the pages of manual Eiki Lc-Xsp2600 Multimedia Projector Owners Manual. The Eiki manuals for Projector are available online for free. You can easily download all the documents as PDF.

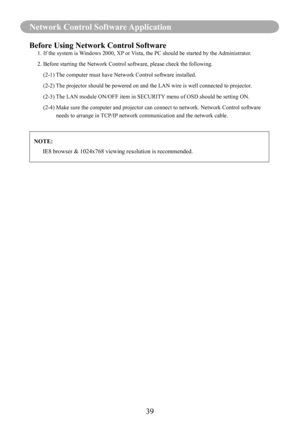

Page 41

39
Network Control Software Application
Before Using Network Control Software1. If the system is Windows 2000, XP or Vista, the PC should be started by the Administrator.
2.  Before starting the Network Control software, please check the following\
.
    (2-1) The computer must have Network Control software installed.
    (2-2)    The projector should be powered on and the LAN wire is well connected to\
 projector.
    (2-3)  The LAN module ON/OFF item in SECURITY menu of OSD should be setting ON....

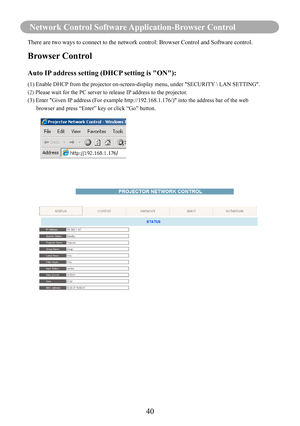

Page 42

40
Network Control Software Application-Browser Control
There are two ways to connect to the network control: Browser Control an\
d Software control.
Browser Control
Auto IP address setting (DHCP setting is "ON"):
(1) Enable DHCP from the projector on-screen-display menu, under "SECURITY  LAN SETTING".
(2) Please wait for the PC server to release IP address to the projector.
(3)            Enter "Given IP address (For example http://192.168.1.176/)" into the address bar of \
the...

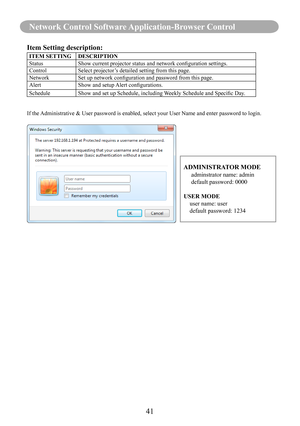

Page 43

41
Network Control Software Application-Browser Control
Item Setting description:
ITEM SETTINGDESCRIPTION
Status Show	current	projector	status	and	network	configuration	settings.
Control Select projector’s detailed setting from this page.
Network Set	up	network	configuration	and	password	from	this	page.
Alert Show	and	setup	Alert	configurations.
Schedule Show	and	set	up	Schedule,	including	 Weekly	Schedule	and	Specific	Day.
If the Administrative & User password is enabled, select your User Name and ent\...

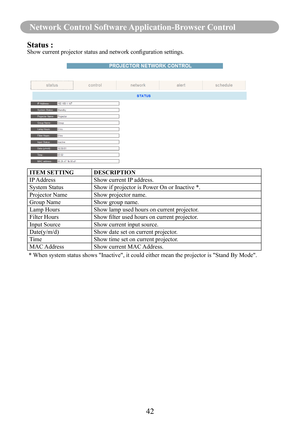

Page 44

42
Network Control Software Application-Browser Control
Status :Show	current	projector	status	and	network	configuration	settings.
ITEM SETTINGDESCRIPTION
IP Address Show current IP address.
System Status Show if projector is Power On or Inactive *.
Projector Name Show projector name.
Group Name Show group name.
Lamp Hours Show lamp used hours on current projector.
Filter Hours Show	filter	used	hours	on	current	projector.
Input Source Show current input source.
Date(y/m/d) Show date set on current...

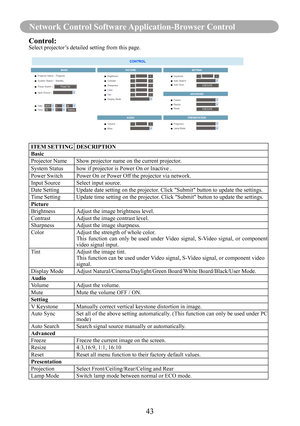

Page 45

43
Network Control Software Application-Browser Control
Control:Select projector’s detailed setting from this page.
ITEM SETTINGDESCRIPTION
Basic
Projector Name Show projector name on the current projector.
System Status  how if projector is Power On or Inactive .
Power Switch Power On or Power Off the projector via network.
Input Source Select input source.
Date Setting Update date setting on the projector. Click "Submit" button to update the settings.
Time Setting Update time setting on the...

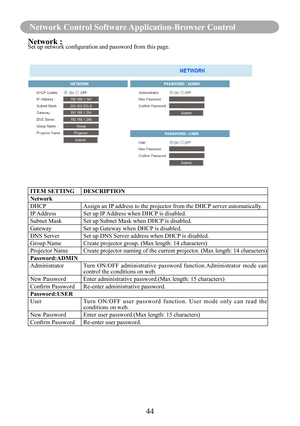

Page 46

44
Network Control Software Application-Browser Control
Network :Set	up	network	configuration	and	password	from	this	page.
ITEM SETTINGDESCRIPTION
Network
DHCP Assign an IP address to the projector from the DHCP server automatically.
IP Address Set up IP Address when DHCP is disabled.
Subnet Mask Set up Subnet Mask when DHCP is disabled.
Gateway Set up Gateway when DHCP is disabled.
DNS Server Set up DNS Server address when DHCP is disabled.
Group Name Create projector group. (Max length: 14 characters)...

Page 47

45
Network Control Software Application-Browser Control
Network :Set	up	network	configuration	and	password	from	this	page.ITEM SETTING DESCRIPTION
Network
DHCP Assign an IP address to the projector from the DHCP server automatically.
IP Address Set up IP Address when DHCP is disabled.
Subnet Mask Set up Subnet Mask when DHCP is disabled.
Gateway Set up Gateway when DHCP is disabled.
DNS Server Set up DNS Server address when DHCP is disabled.
Group Name Create projector group. (Max length: 14 characters)...

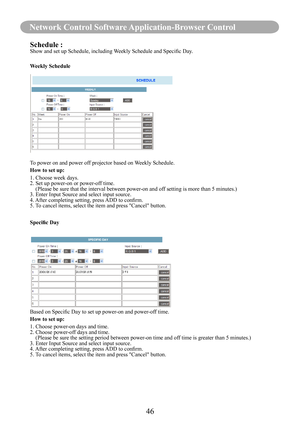

Page 48

46
Network Control Software Application-Browser Control
Schedule :Show	and	set	up	Schedule,	including	Weekly	Schedule	and	Specific	Day.
Weekly Schedule
To power on and power off projector based on Weekly Schedule.
How to set up:
1. Choose week days.
2. Set up power-on or power-off time.
    (  Please be sure that the interval between power-on and off setting is more than 5 minutes.)
3. Enter Input Source and select input source.
4.	 After	completing	setting,	press	 ADD	to	confirm.
5. To cancel items,...

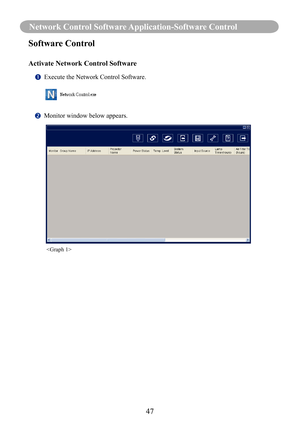

Page 49

47
Network Control Software Application-Software Control
Software Control
Activate Network Control Software
	Execute the Network Control Software.

		Monitor window below appears.

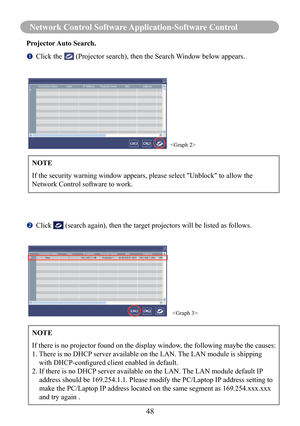

Page 50

48
Network Control Software Application-Software Control
Projector Auto Search.
		Click the  (Projector search), then the Search Window below appears.
		Click  (search again), then the target projectors will be listed as follows.
NOTE
If the security warning window appears, please select "Unblock" to allow\
 the
Network Control software to work.


NOTE
If there is no projector found on the display window, the following maybe the causes:
1.
  There is no DHCP server available on the LAN. The...
