vFocus ring sp. 15
vZoom ring sp. 15
vVertical lens shift
dial sp. 15
vStatus display indicator
sp. 52vHorizontal lens shift dial sp. 15
vLamp cover sp. 58
vSkip buttons sp. 18
vPower button
sp. 13, 16vPlay/Pause button
sp. 14, 17vBreak button
sp. 19vImage On/Off button
sp. 23 vSource button
sp. 38vStop button
sp. 16vVo l u m e
adjustment
buttons
sp. 15vImage On
indicator
sp. 53
vImage Off
indicator
sp. 13, 16, 53

10

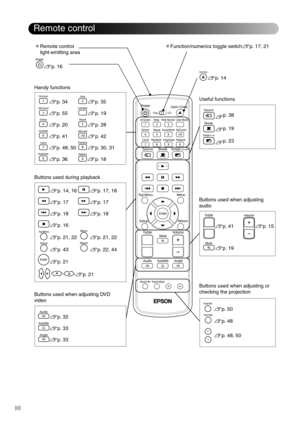

Remote control
vRemote control
light-emitting area
sp. 16vFunction/numerics toggle switchsp. 17, 21
sp. 14
sp. 34sp. 35
sp. 55sp. 19
sp. 20sp. 28
sp. 41sp. 42
sp. 48, 50sp. 30, 31
sp. 36sp. 18
sp. 41sp. 15
sp. 19
Handy functions
Buttons used when adjusting
audio
sp. 32
sp. 33
sp. 33
Buttons used when adjusting DVD
video
sp. 38
sp. 19
sp. 23
Useful functions
sp. 14, 16sp. 17, 18
sp. 17sp. 17
sp. 18sp. 18
sp. 16
sp. 21, 22sp. 21, 22
sp. 43sp. 22, 44
sp. 21
sp. 21
Buttons used during playback
sp. 50...

11
At the time of purchase, the batteries are not installed into the remote control.
Insert the batteries provided with this unit, before use.
A Push in the catch on the rear of the remote control, then lift it
upwards.
B Insert the batteries in their correct polarity.
C Close the battery cover.

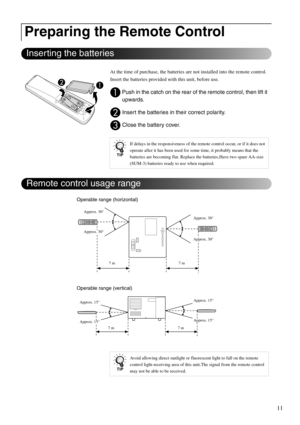

Preparing the Remote Control
If delays in the responsiveness of the remote control occur, or if it does not
operate after it has been used for some time, it probably means that the
batteries are becoming flat....

12

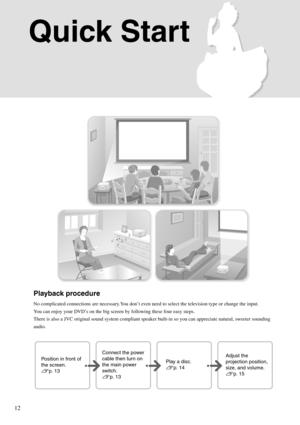

Quick Start
Playback procedure
No complicated connections are necessary.You don’t even need to select the television type or change the input.
You can enjoy your DVD’s on the big screen by following these four easy steps.
There is also a JVC original sound system compliant speaker built-in so you can appreciate natural, sweeter sounding
audio.
Position in front of
the screen.
s p. 13 Connect the power
cable then turn on
the main power
switch.
s
p. 13 Play a disc.
s
p. 14 Adjust the
projection...

13

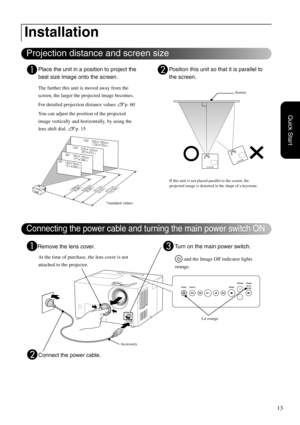

Quick Start
APlace the unit in a position to project the
best size image onto the screen.
The further this unit is moved away from the
screen, the larger the projected image becomes.
For detailed projection distance values sp. 60
You can adjust the position of the projected
image vertically and horizontally, by using the
lens shift dial. sp. 15
BPosition this unit so that it is parallel to
the screen.
Installation
Projection distance and screen size
*standard values
If this unit is not placed...

14

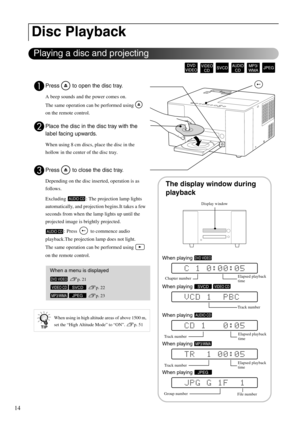

APress   to open the disc tray.
A beep sounds and the power comes on.
The same operation can be performed using
on the remote control.
BPlace the disc in the disc tray with the
label facing upwards.
When using 8 cm discs, place the disc in the
hollow in the center of the disc tray.
CPress   to close the disc tray.
Depending on the disc inserted, operation is as
follows.
Excluding  : The projection lamp lights
automatically, and projection begins.It takes a few
seconds from when the lamp...

15
Quick Start

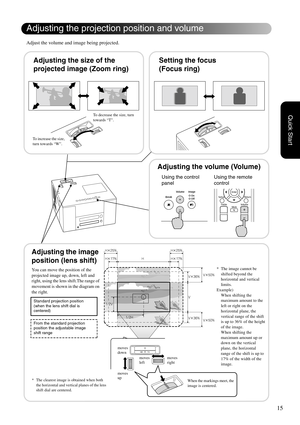

Adjust the volume and image being projected.
Adjusting the projection position and volume
Adjusting the size of the
projected image (Zoom ring)Setting the focus
(Focus ring)
Adjusting the image
position (lens shift)
You can move the position of the
projected image up, down, left and
right, using the lens shift.The range of
movement is shown in the diagram on
the right.
Adjusting the volume (Volume)
To increase the size,
turn towards “W”. To decrease the size, turn
towards “T”.
*...

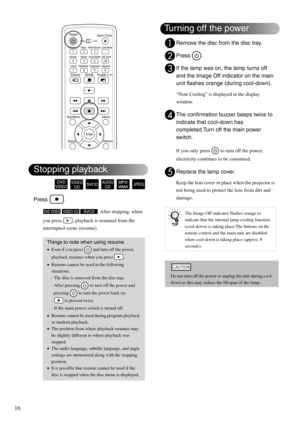

16
Press .
 After stopping, when
you press  , playback is resumed from the
interrupted scene (resume).
ARemove the disc from the disc tray.
BPress .
CIf the lamp was on, the lamp turns off
and the Image Off indicator on the main
unit flashes orange (during cool-down).
“Now Cooling” is displayed in the display
window.
DThe confirmation buzzer beeps twice to
indicate that cool-down has
completed.Turn off the main power
switch.
If you only press   to turn off the power,
electricity continues to be...

17
Quick Start

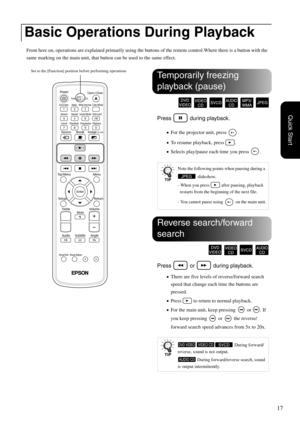

From here on, operations are explained primarily using the buttons of the remote control.Where there is a button with the
same marking on the main unit, that button can be used to the same effect.
Press   during playback.
•For the projector unit, press  .
•To resume playback, press  .
•Selects play/pause each time you press  .
Press   or   during playback.
•There are five levels of reverse/forward search
speed that change each time the buttons are
pressed.
•Press   to return to normal...

18

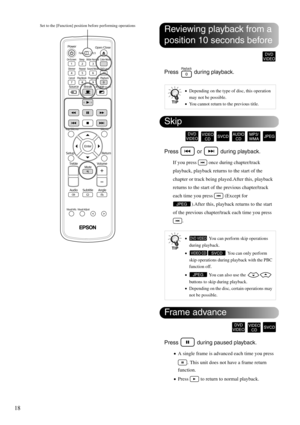

Press  during playback.
Press   or   during playback.
If you press   once during chapter/track
playback, playback returns to the start of the
chapter or track being played.After this, playback
returns to the start of the previous chapter/track
each time you press   (Except for
).After this, playback returns to the start
of the previous chapter/track each time you press
.
Press   during paused playback.
•A single frame is advanced each time you press
. This unit does not have a frame return...
