29

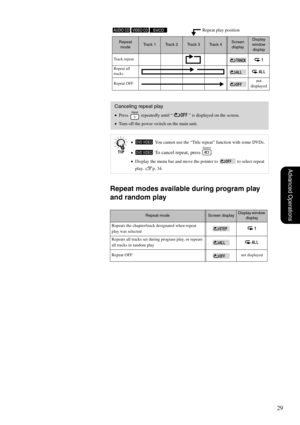

Advanced Operations
Repeat modes available during program play
and random play
Canceling repeat play
•Press   repeatedly until “ ” is displayed on the screen.
•Turn off the power switch on the main unit.
• You cannot use the “Title repeat” function with some DVDs.
•
 To cancel repeat, press .
•Display the menu bar and move the pointer to   to select repeat
play.
sp. 34
Repeat modeScreen displayDisplay window
display
Repeats the chapter/track designated when repeat
play was selected
Repeats all...

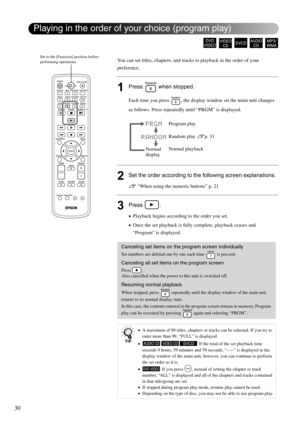

30
You can set titles, chapters, and tracks to playback in the order of your
preference.
1Press  when stopped.
Each time you press  , the display window on the main unit changes
as follows. Press repeatedly until “PRGM” is displayed.
2Set the order according to the following screen explanations.
s “When using the numeric buttons” p. 21
3Press .
•Playback begins according to the order you set.
•Once the set playback is fully complete, playback ceases and
“Program” is displayed.
Canceling set items on...

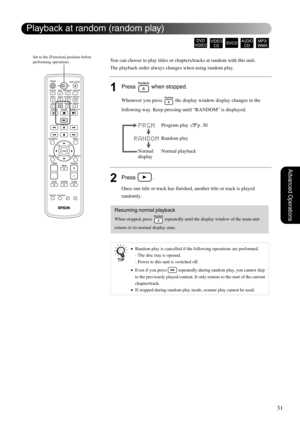

31
Advanced Operations
You can choose to play titles or chapters/tracks at random with this unit.
The playback order always changes when using random play.
1Press  when stopped.
Whenever you press   the display window display changes in the
following way. Keep pressing until “RANDOM” is displayed.

2Press .
Once one title or track has finished, another title or track is played
randomly.
Resuming normal playback
When stopped, press   repeatedly until the display window of the main unit
returns to its...

32

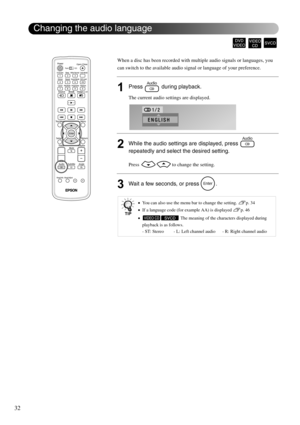

When a disc has been recorded with multiple audio signals or languages, you
can switch to the available audio signal or language of your preference.
1Press  during playback.
The current audio settings are displayed.
2While the audio settings are displayed, press
repeatedly and select the desired setting.
Press   to change the setting.
3Wait a few seconds, or press  .
•You can also use the menu bar to change the setting. sp. 34
•If a language code (for example AA) is displayed
sp. 46
• The meaning...

33
Advanced Operations

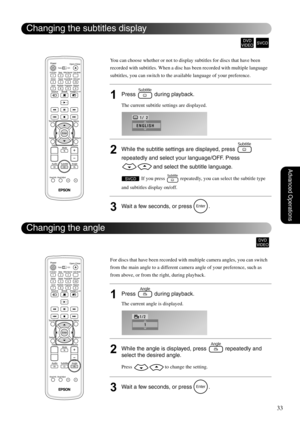

You can choose whether or not to display subtitles for discs that have been
recorded with subtitles. When a disc has been recorded with multiple language
subtitles, you can switch to the available language of your preference.
1Press  during playback.
The current subtitle settings are displayed.
2While the subtitle settings are displayed, press
repeatedly and select your language/OFF. Press
 and select the subtitle language.
 If you press   repeatedly, you can select the...

34

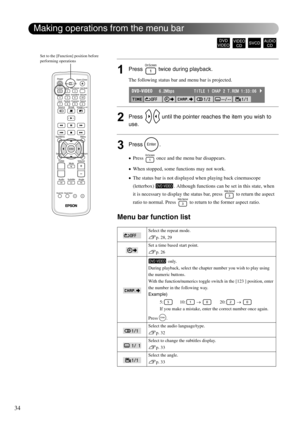

1Press   twice during playback.
The following status bar and menu bar is projected.
2Press   until the pointer reaches the item you wish to
use.
3Press .
•Press   once and the menu bar disappears.
•When stopped, some functions may not work.
•The status bar is not displayed when playing back cinemascope
(letterbox)  . Although functions can be set in this state, when
it is necessary to display the status bar, press   to return the aspect
ratio to normal. Press   to return to the former aspect...

35
Advanced Operations

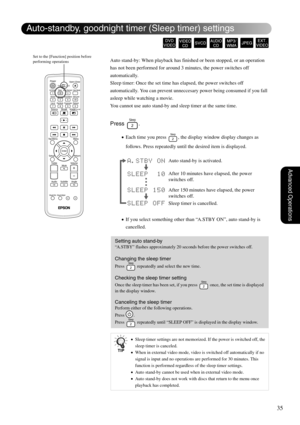

Auto stand-by: When playback has finished or been stopped, or an operation
has not been performed for around 3 minutes, the power switches off
automatically.
Sleep timer: Once the set time has elapsed, the power switches off
automatically. You can prevent unneccesary power being consumed if you fall
asleep while watching a movie.
You cannot use auto stand-by and sleep timer at the same time.
Press .
•Each time you press  , the display window display changes as
follows. Press...

36

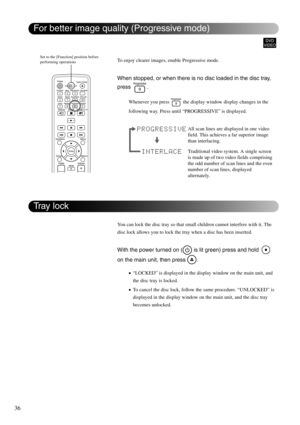

To enjoy clearer images, enable Progressive mode.
When stopped, or when there is no disc loaded in the disc tray,
press .
Whenever you press   the display window display changes in the
following way. Press until “PROGRESSIVE” is displayed.
You can lock the disc tray so that small children cannot interfere with it. The
disc lock allows you to lock the tray when a disc has been inserted.
With the power turned on (  is lit green) press and hold
on the main unit, then press  .
•“LOCKED” is displayed...

37
Advanced Operations

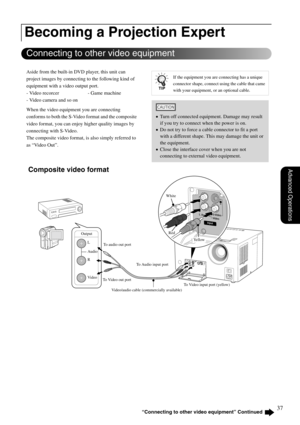

Aside from the built-in DVD player, this unit can
project images by connecting to the following kind of
equipment with a video output port.
- Video recorcer - Game machine
- Video camera and so on
When the video equipment you are connecting
conforms to both the S-Video format and the composite
video format, you can enjoy higher quality images by
connecting with S-Video.
The composite video format, is also simply referred to
as “Video Out”.
 Composite video format
Becoming a...

38

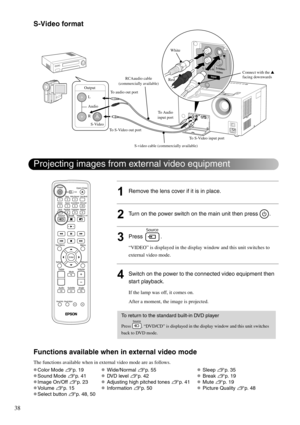

S-Video format
1Remove the lens cover if it is in place.
2Turn on the power switch on the main unit then press  .
3Press .
“VIDEO” is displayed in the display window and this unit switches to
external video mode.
4Switch on the power to the connected video equipment then
start playback.
If the lamp was off, it comes on.
After a moment, the image is projected.
Functions available when in external video mode
The functions available when in external video mode are as follows.
vColor Mode sp. 19 v...
