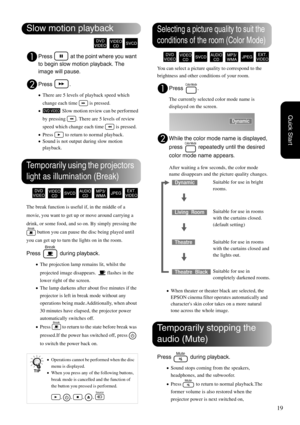

19
Quick Start
APress   at the point where you want
to begin slow motion playback. The
image will pause.
BPress .
•There are 5 levels of playback speed which
change each time   is pressed.
•  Slow motion review can be performed
by pressing  . There are 5 levels of review
speed which change each time   is pressed.
• Press   to return to normal playback.
• Sound is not output during slow motion
playback.
The break function is useful if, in the middle of a
movie, you want to get up or move around...

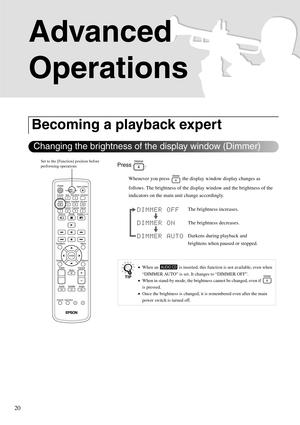

20
Advanced
Operations
Press .
Whenever you press   the display window display changes as
follows. The brightness of the display window and the brightness of the
indicators on the main unit change accordingly.
Becoming a playback expert
•When an   is inserted, this function is not available, even when
“DIMMER AUTO” is set. It changes to “DIMMER OFF”.
•When in stand-by mode, the brightness cannot be changed, even if
is pressed.
•Once the brightness is changed, it is remembered even after the main...

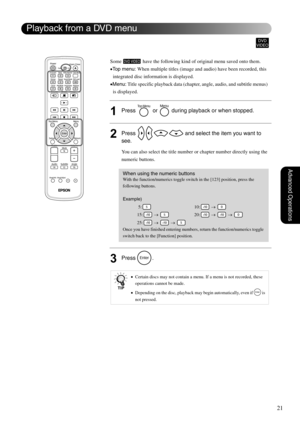

21
Advanced Operations
Some   have the following kind of original menu saved onto them.
•Top menu: When multiple titles (image and audio) have been recorded, this
integrated disc information is displayed.
•Menu: Title specific playback data (chapter, angle, audio, and subtitle menus)
is displayed.
1Press   or   during playback or when stopped.
2Press   and select the item you want to
see.
You can also select the title number or chapter number directly using the
numeric buttons.
3Press .
When using...

22

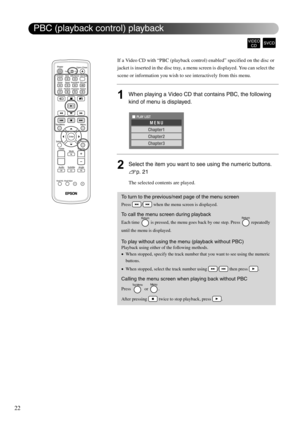

If a Video CD with “PBC (playback control) enabled” specified on the disc or
jacket is inserted in the disc tray, a menu screen is displayed. You can select the
scene or information you wish to see interactively from this menu.
1When playing a Video CD that contains PBC, the following
kind of menu is displayed.
2Select the item you want to see using the numeric buttons.
sp. 21
The selected contents are played.
To turn to the previous/next page of the menu screen
Press  /  when the menu screen is...

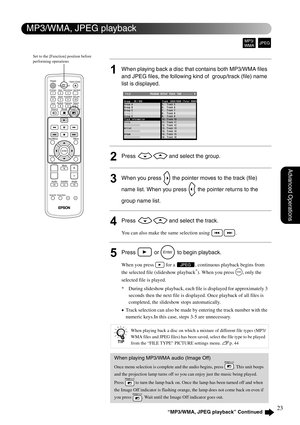

23
Advanced Operations
1When playing back a disc that contains both MP3/WMA files
and JPEG files, the following kind of  group/track (file) name
list is displayed.
2Press   and select the group.
3When you press   the pointer moves to the track (file)
name list. When you press   the pointer returns to the
group name list.
4Press   and select the track.
You can also make the same selection using  .
5Press   or   to begin playback.
When you press   for a  , continuous playback begins from
the selected...

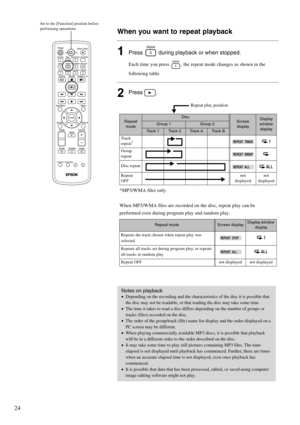

24
When you want to repeat playback
1Press   during playback or when stopped.
Each time you press  , the repeat mode changes as shown in the
following table.
2Press .
Notes on playback
•Depending on the recording and the characteristics of the disc it is possible that
the disc may not be readable, or that reading the disc may take some time.
•The time it takes to read a disc differs depending on the number of groups or
tracks (files) recorded on the disc.
•The order of the group/track (file) name...

25
Advanced Operations
Specifications of files that can be played
To playback a CD-R or CD-RW containing MP3/WMA or JPEG files with
this unit, the contents of the disc must conform to the following criteria.
MP3/WMA
File system: ISO9660 level 1 or level 2
Discs that have been recorded in the packet write (UDF) format cannot be
read.
Bitrate: MP3: 32 kbps - 320 kbps
WMA: 64 kbps - 160 kbps
Sampling frequency: 16 kHz, 22.05 kHz, 24 kHz, 32 kHz, 44.1 kHz, 48 kHz
Filename: Half width English characters...

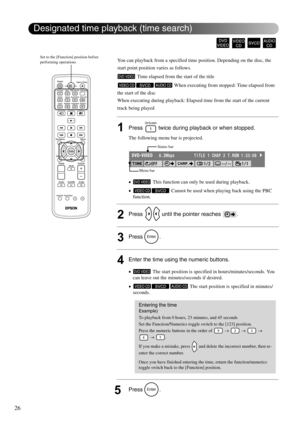

26
You can playback from a specified time position. Depending on the disc, the
start point position varies as follows.
 Time elapsed from the start of the title
 When executing from stopped: Time elapsed from
the start of the disc
When executing during playback: Elapsed time from the start of the current
track being played
1Press   twice during playback or when stopped.
The following menu bar is projected.
• This function can only be used during playback.
• Cannot be used when playing back using the...

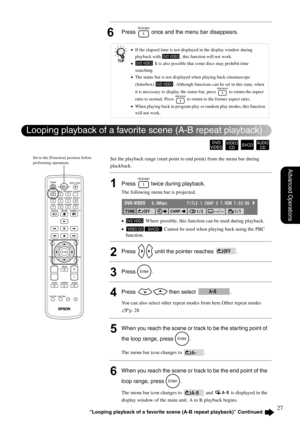

27
Advanced Operations
6Press   once and the menu bar disappears.
Set the playback range (start point to end point) from the menu bar during
plackback.
1Press  twice during playback.
The following menu bar is projected.
• Where possible, this function can be used during playback.
• Cannot be used when playing back using the PBC
function.
2Press   until the pointer reaches  .
3Press .
4Press  then select  .
You can also select other repeat modes from here.Other repeat modes
sp. 28
5When you reach the...

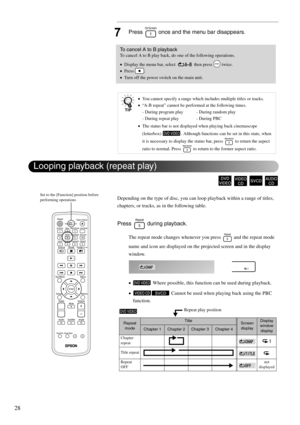

28
7Press   once and the menu bar disappears.
Depending on the type of disc, you can loop playback within a range of titles,
chapters, or tracks, as in the following table.
Press   during playback.
The repeat mode changes whenever you press   and the repeat mode
name and icon are displayed on the projected screen and in the display
window.
• Where possible, this function can be used during playback.
• Cannot be used when playing back using the PBC
function.
To cancel A to B playback
To cancel A to B...
