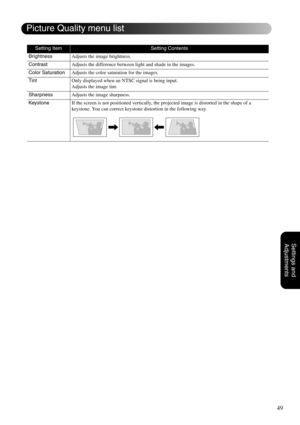

49
Settings and
Adjustments
Setting ItemSetting Contents
BrightnessAdjusts the image brightness.
ContrastAdjusts the difference between light and shade in the images.
Color SaturationAdjusts the color saturation for the images.
TintOnly displayed when an NTSC signal is being input.
Adjusts the image tint.
SharpnessAdjusts the image sharpness.
KeystoneIf the screen is not positioned vertically, the projected image is distorted in the shape of a
keystone. You can correct keystone distortion in the...

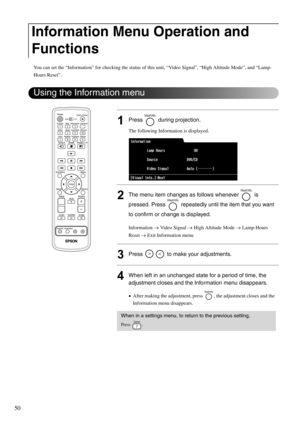

50
You can set the “Information” for checking the status of this unit, “Video Signal”, “High Altitude Mode”, and “Lamp-
Hours Reset”.
1Press  during projection.
The following Information is displayed.
2The menu item changes as follows whenever   is
pressed. Press   repeatedly until the item that you want
to confirm or change is displayed.
Information → Video Signal → High Altitude Mode → Lamp-Hours
Reset → Exit Information menu
3Press   to make your adjustments.
4When left in an unchanged state for a...

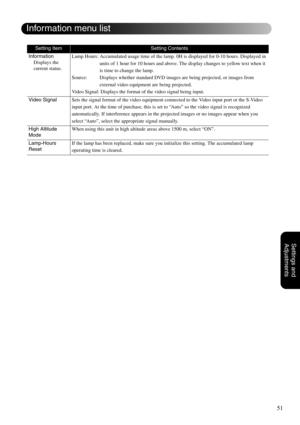

51
Settings and
Adjustments
Setting ItemSetting Contents
Information
Displays the
current status.Lamp Hours: Accumulated usage time of the lamp. 0H is displayed for 0-10 hours. Displayed in
units of 1 hour for 10 hours and above. The display changes to yellow text when it
is time to change the lamp.
Source: Displays whether standard DVD images are being projected, or images from
external video equipment are being projected.
Video Signal: Displays the format of the video signal being input.
Video...

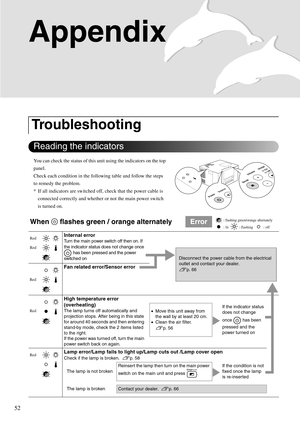

52
Appendix
You can check the status of this unit using the indicators on the top
panel.
Check each condition in the following table and follow the steps
to remedy the problem.
* If all indicators are switched off, check that the power cable is  connected correctly and whether  or not the main power switch
is turned on.
Troubleshooting
When   flashes green / orange alternatelyError : flashing green/orange alternately
 : lit    : flashing    : off
Internal error
Turn the main power switch off then on....

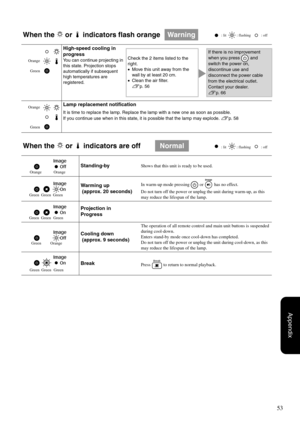

53
Appendix
When the   or   indicators flash orangeWarning : lit    : flashing    : off
High-speed cooling in
progress
You can continue projecting in
this state. Projection stops
automatically if subsequent
high temperatures are
registered.Check the 2 items listed to the
right.
•Move this unit away from the
wall by at least 20 cm.
•Clean the air filter.
sp. 56
If there is no improvement
when you press   and
switch the power on,
discontinue use and
disconnect the power cable
from the...

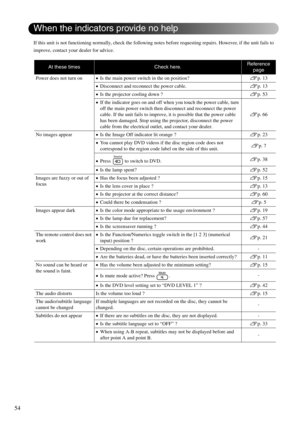

54
If this unit is not functioning normally, check the following notes before requesting repairs. However, if the unit fails to
improve, contact your dealer for advice.
At these timesCheck here.Reference
page
Power does not turn on•Is the main power switch in the on position?sp. 13
•Disconnect and reconnect the power cable.sp. 13
•Is the projector cooling down ?sp. 53
•If the indicator goes on and off when you touch the power cable, turn
off the main power switch then disconnect and reconnect the...

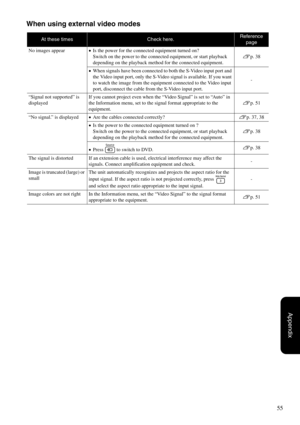

55
Appendix
When using external video modes
At these timesCheck here.Reference page
No images appear •Is the power for the connected equipment turned on?
Switch on the power to the connected  equipment, or start playback
depending on the playback method for the connected equipment. s
p. 38
• When signals have been connected to both the S-Video input port and
the Video input port, only the S-Video signal is available. If you want
to watch the image from the equipm ent connected to the Video input...

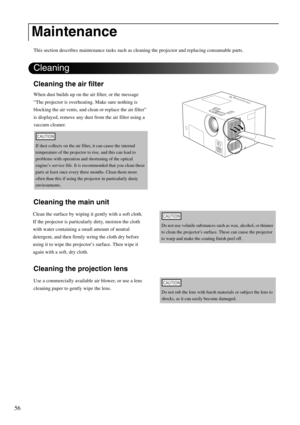

56
This section describes maintenance tasks such as cleaning the projector and replacing consumable parts.
Cleaning the air filter
When dust builds up on the air filter, or the message
“The projector is overheating. Make sure nothing is
blocking the air vents, and clean or replace the air filter”
is displayed, remove any dust from the air filter using a
vaccum cleaner.
Cleaning the main unit
Cleaning the projection lens
Maintenance
If dust collects on the air filter, it can cause the internal...

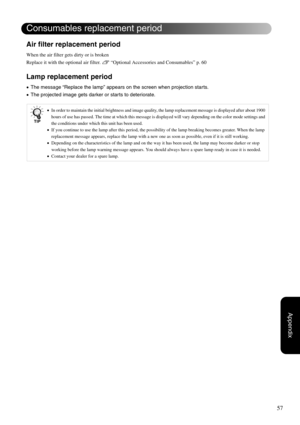

57
Appendix
Air filter replacement period
When the air filter gets dirty or is broken
Replace it with the optional air filter. s “Optional Accessories and Consumables” p. 60
Lamp replacement period
•The message “Replace the lamp” appears on the screen when projection starts.
•The projected image gets darker or starts to deteriorate.
•In order to maintain the initial brightness and image quality, the lamp replacement message is displayed after about 1900
hours of use has passed. The time at which this...

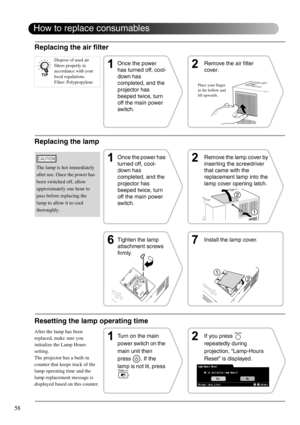

58
How to replace consumables
Replacing the air filter
Replacing the lamp
The lamp is hot immediately
after use. Once the power has
been switched off, allow
approximately one hour to
pass before replacing the
lamp to allow it to cool
thoroughly.
Once the power
has turned off, cool-
down has
completed, and the
projector has
beeped twice, turn
off the main power
switch.Remove the air filter
cover.
Once the power has
turned off, cool-
down has
completed, and the
projector has
beeped twice,...
