Epson Projector Emp Twd1 User Manual

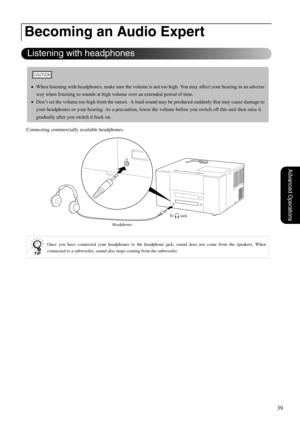

39
Advanced Operations
Connecting commercially available headphones.
Becoming an Audio Expert
•When listening with headphones, make sure the volume is not too high. You may affect your hearing in an adverse
way when listening to sounds at high volume over an extended period of time.
•Don’t set the volume too high from the outset.  A loud sound may be produced suddenly that may cause damage to
your headphones or your hearing. As a precaution, lower the volume before you switch off this unit then raise...

40

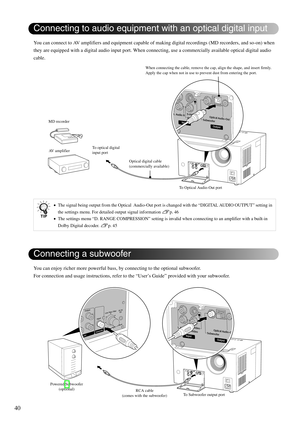

You can connect to AV amplifiers and equipment capable of making digital record ings (MD recorders, and so-on) when
they are equipped with a digital audio  input port. When connecting, use a commercially available optical digital audio
cable.
You can enjoy richer more powerful bass, by connecting to the optional subwoofer.
For connection and usage instructions, refer to th e “User’s Guide” provided with your subwoofer.
•The signal being output from the Optical  Audio-Out port  is changed with the...

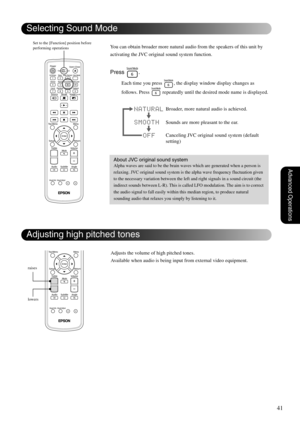

41
Advanced Operations
You can obtain broader more natural audio from the speakers of this unit by
activating the JVC original sound system function.
Press .
Each time you press  , the display window display changes as
follows. Press   repeatedly until the desired mode name is displayed.
Adjusts the volume of high pitched tones.
Available when audio is being input from external video equipment.
About JVC original sound system
Alpha waves are said to be the brain waves which are generated when a person...

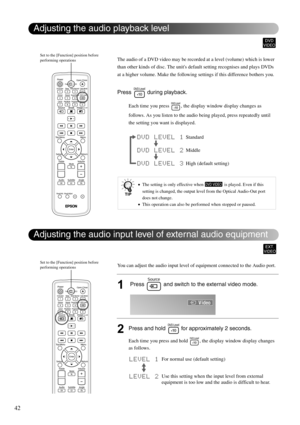

42
The audio of a DVD video may be recorded at a level (volume) which is lower
than other kinds of disc. The units default setting recognises and plays DVDs
at a higher volume. Make the following settings if this difference bothers you.
Press   during playback.
Each time you press  , the display window display changes as
follows. As you listen to the audio being played, press repeatedly until
the setting you want is displayed.
You can adjust the audio input level of equipment connected to the Audio...

43

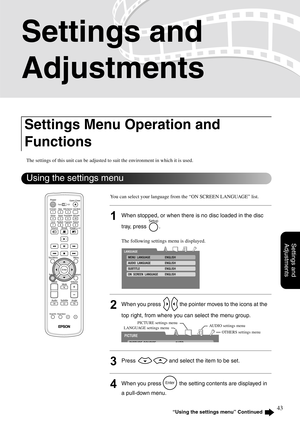

Settings and
Adjustments
Settings and
Adjustments
The settings of this unit can be adjusted to suit the environment in which it is used.
You can select your language from the “ON SCREEN LANGUAGE” list.
1When stopped, or when there is no disc loaded in the disc
tray, press  .
The following settings menu is displayed.
2When you press   the pointer moves to the icons at the
top right, from where you can select the menu group.
3Press   and select the item to be set.
4When you press   the setting...

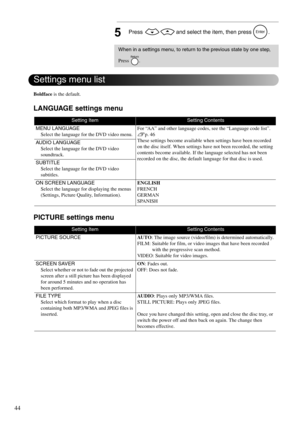

44
5Press   and select the item, then press  .
Boldface is the default.
LANGUAGE settings menu
PICTURE settings menu
When in a settings menu, to return to the previous state by one step,
Press .
Setting ItemSetting Contents
MENU LANGUAGE
Select the language for the DVD video menu.For “AA” and other language codes, see the “Language code list”.
sp. 46
These settings become available when settings have been recorded
on the disc itself. When settings have not been recorded, the setting
contents become...

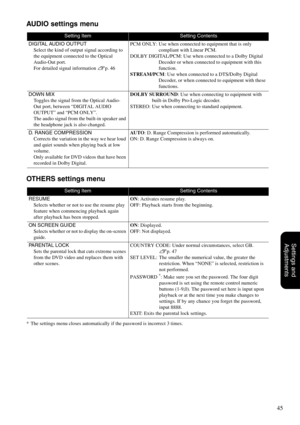

45
Settings and
Adjustments
AUDIO settings menu
OTHERS settings menu
* The settings menu closes automatically if the password is incorrect 3 times.
Setting ItemSetting Contents
DIGITAL AUDIO OUTPUT
Select the kind of output signal according to
the equipment connected to the Optical
Audio-Out port.
For detailed signal information sp. 46PCM ONLY: Use when connected to equipment that is only
compliant with Linear PCM.
DOLBY DIGITAL/PCM: Use when connected to a Dolby Digital
Decoder or when connected to...

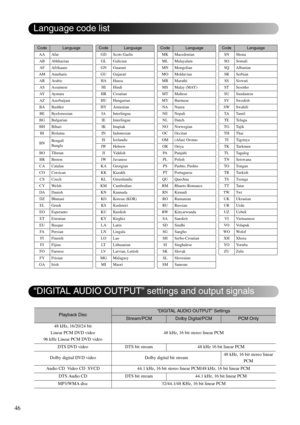

46
CodeLanguageCodeLanguageCodeLanguageCodeLanguage
AA Afar GD Scots Gaelic MK Macedonian SN Shona
AB Abkhazian GL Galician ML Malayalam SO Somali
AF Afrikaans GN Guarani MN Mongolian SQ Albanian
AM Ameharic GU Gujarati MO Moldavian SR Serbian
AR Arabic HA Hausa MR Marathi SS Siswati
AS Assamese HI Hindi MS Malay (MAY) ST Sesotho
AY Aymara HR Croatian MT Maltese SU Sundanese
AZ Azerbaijani HU Hungarian MY Burmese SV Swedish
BA Bashkir HY Armenian NA Nauru SW Swahili
BE Byelorussian IA Interlingua NE...

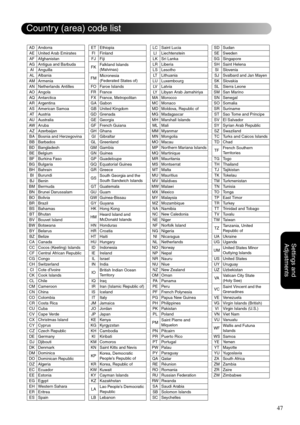

47
Settings and
Adjustments
AD Andorra ET Ethiopia LC Saint Lucia SD Sudan
AE United Arab Emirates FI Finland LI Liechtenstein SE Sweden
AF Afghanistan FJ Fiji LK Sri Lanka SG Singapore
AG Antigua and Barbuda
FKFalkland Islands
(Malvinas)LR Liberia SH Saint Helena
AI Anguilla LS Lesotho SI Slovenia
AL Albania
FMMicronesia
(Federated States of)LT Lithuania SJ Svalbard and Jan Mayen
AM Armenia LU Luxembourg SK Slovakia
AN Netherlands Antilles FO Faroe Islands LV Latvia SL Sierra Leone
AO Angola FR France...

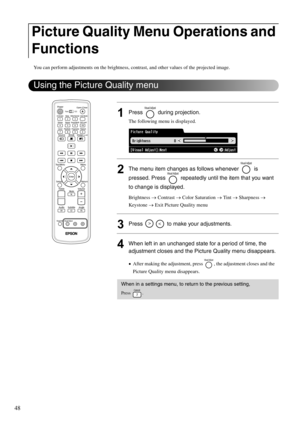

48
You can perform adjustments on the brightness, contrast, and other values of the projected image.
1Press  during projection.
The following menu is displayed.
2The menu item changes as follows whenever   is
pressed. Press   repeatedly until the item that you want
to change is displayed.
Brightness → Contrast → Color Saturation → Tint → Sharpness →
Keystone → Exit Picture Quality menu
3Press   to make your adjustments.
4When left in an unchanged state for a period of time, the
adjustment closes and...
