Epson Projector Emp Twd1 User Manual

59
Appendix

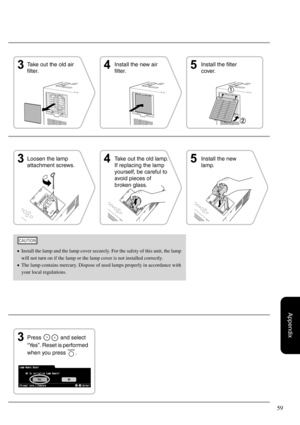

Take out the old air
filter.Install the new air
filter.Install the filter
cover.
Loosen the lamp
attachment screws.Take out the old lamp.
If replacing the lamp
yourself, be careful to
avoid pieces of
broken glass.Install the new
lamp.
•Install the lamp and the lamp cover securely. For the safety of this unit, the lamp
will not turn on if the lamp or the lamp cover is not installed correctly.
•The lamp contains mercury. Dispose of used lamps properly in accordance with
your local...

60

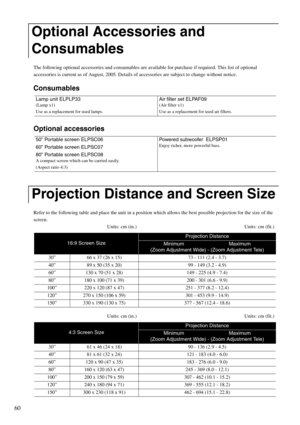

The following optional accessories and consumables are available for purchase if required. This list of optional
accessories is current as of August, 2005. Details of accessories are subject to change without notice.
Consumables
Optional accessories
Refer to the following table and place the unit in a position which allows the best possible projection for the size of the
screen.
Units: cm (in.) Units: cm (fit.)
Units: cm (in.) Units: cm (fit.)
Optional Accessories and
Consumables
Lamp unit ELPLP33...

61
Appendix
Pixelworks DNXTM IC is installed in this unit.
Composite Video/S-Video

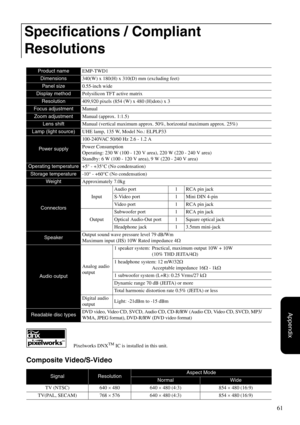

Specifications / Compliant
Resolutions
Product nameEMP-TWD1
Dimensions340(W) x 180(H) x 310(D) mm (excluding feet)
Pan el size0.55-inch wide
Display methodPolysilicon TFT active matrix
Resolution409,920 pixels (854 (W) x 480 (H)dots) x 3
Focus adjustmentManual
Zoom adjustmentManual (approx. 1:1.5)
Lens shiftManual (vertical maximum approx. 50%, horizontal maximum approx. 25%)
Lamp (light source)UHE lamp, 135 W, Model No.:...

62

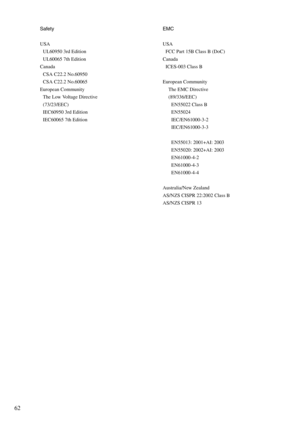

Safety
USAUL60950 3rd Edition
UL60065 7th Edition
Canada CSA C22.2 No.60950
CSA C22.2 No.60065
European Community The Low Voltage Directive
(73/23/EEC)
IEC60950 3rd Edition
IEC60065 7th Edition EMC
USA
FCC Part 15B Class B (DoC)
Canada ICES-003 Class B
European Community The EMC Directive
(89/336/EEC)EN55022 Class B
EN55024
IEC/EN61000-3-2
IEC/EN61000-3-3
EN55013: 2001+AI: 2003
EN55020: 2002+AI: 2003
EN61000-4-2
EN61000-4-3
EN61000-4-4
Australia/New Zealand
AS/NZS CISPR 22:2002 Class B
AS/NZS CISPR 13

63

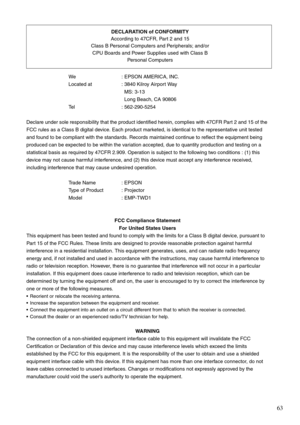

We : EPSON AMERICA, INC.
Located at : 3840 Kilroy Airport Way
MS: 3-13
Long Beach, CA 90806
Tel : 562-290-5254
Declare under sole responsibility that the product identified herein, complies with 47CFR Part 2 and 15 of the
FCC rules as a Class B digital device. Each product marketed, is identical to the representative unit tested
and found to be compliant with the standards. Records maintained continue to reflect the equipment being
produced can be expected to be within the variation accepted, due...

64

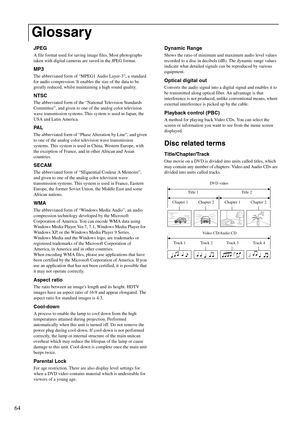

JPEG
