Lucent Technologies DEFINITY Enterprise Communication Server Release 8.2 Administrators Guide

DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
Features and technical reference
1237 Call Detail Recording
20
13–16 IXC code
17 Space
18–21 Access code used
22 Space
23–37 Dialed number
38 Space
39–43 Calling number
44 Space
45–59 Account code
60 Space
61–67 Authorization code
68 Space
69–71 ISDN NSV
72 Space
73 FRL
74 Space
75–77 Incoming circuit ID
78 Space
79–81 Outgoing circuit ID
82 Space
83 Feature flag
84 Carriage return
85 Line feed
Table 33. CDR Data Format —...

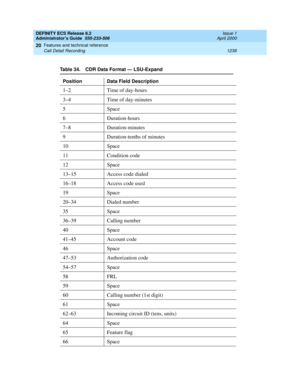

DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
Features and technical reference
1238 Call Detail Recording
20
Table 34. CDR Data Format — LSU-Expand
Position Data Field Description
1–2 Time of day-hours
3–4 Time of day-minutes
5 Space
6 Duration-hours
7–8 Duration-minutes
9 Duration-tenths of minutes
10 Space
11 Condition code
12 Space
13–15 Access code dialed
16–18 Access code used
19 Space
20–34 Dialed number
35 Space
36–39 Calling number
40 Space
41–45 Account code...

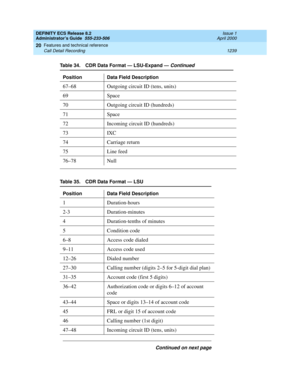

DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
Features and technical reference
1239 Call Detail Recording
20
67–68 Outgoing circuit ID (tens, units)
69 Space
70 Outgoing circuit ID (hundreds)
71 Space
72 Incoming circuit ID (hundreds)
73 IXC
74 Carriage return
75 Line feed
76–78 Null
Table 35. CDR Data Format — LSU
Position Data Field Description
1 Duration-hours
2-3 Duration-minutes
4 Duration-tenths of minutes
5 Condition code
6–8 Access code dialed
9–11 Access code...

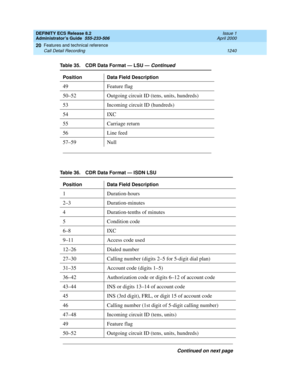

DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
Features and technical reference
1240 Call Detail Recording
20
49 Feature flag
50–52 Outgoing circuit ID (tens, units, hundreds)
53 Incoming circuit ID (hundreds)
54 IXC
55 Carriage return
56 Line feed
57–59 Null
Table 36. CDR Data Format — ISDN LSU
Position Data Field Description
1 Duration-hours
2–3 Duration-minutes
4 Duration-tenths of minutes
5 Condition code
6–8 IXC
9–11 Access code used
12–26 Dialed number
27–30...

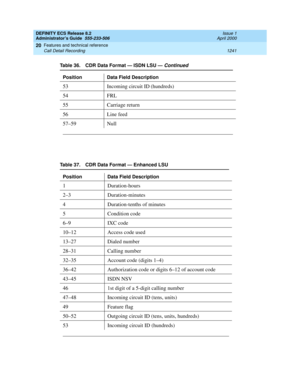

DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
Features and technical reference
1241 Call Detail Recording
20
53 Incoming circuit ID (hundreds)
54 FRL
55 Carriage return
56 Line feed
57–59 Null
Table 37. CDR Data Format — Enhanced LSU
Position Data Field Description
1 Duration-hours
2–3 Duration-minutes
4 Duration-tenths of minutes
5 Condition code
6–9 IXC code
10–12 Access code used
13–27 Dialed number
28–31 Calling number
32–35 Account code (digits 1–4)
36–42...

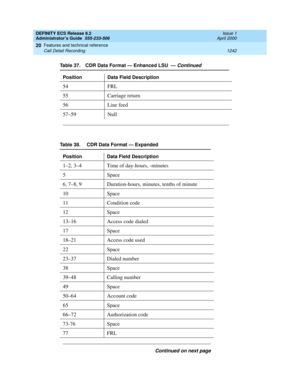

DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
Features and technical reference
1242 Call Detail Recording
20
54 FRL
55 Carriage return
56 Line feed
57–59 Null
Table 38.  CDR Data Format — Expanded
Position Data Field Description
1–2, 3–4 Time of day-hours, -minutes
5 Space
6, 7–8, 9 Duration-hours, minutes, tenths of minute
10 Space
11 Condition code
12 Space
13–16 Access code dialed
17 Space
18–21 Access code used
22 Space
23–37 Dialed number
38 Space
39–48 Calling...

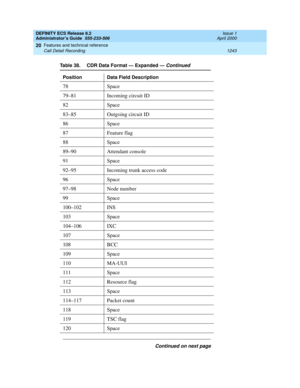

DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
Features and technical reference
1243 Call Detail Recording
20
78 Space
79–81 Incoming circuit ID
82 Space
83–85 Outgoing circuit ID
86 Space
87 Feature flag
88 Space
89–90 Attendant console
91 Space
92–95 Incoming trunk access code
96 Space
97–98 Node number
99 Space
100–102 INS
103 Space
104–106 IXC
107 Space
108 BCC
109 Space
110 MA-UUI
111 Space
112 Resource flag
113 Space
114–117 Packet count
118 Space
119 TSC flag...

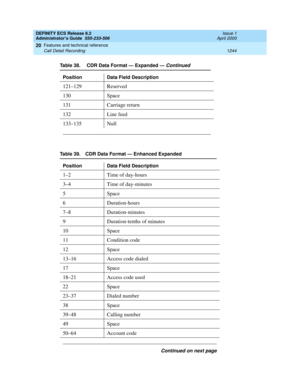

DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
Features and technical reference
1244 Call Detail Recording
20
121–129 Reserved
130 Space
131 Carriage return
132 Line feed
133–135 Null
Table 39. CDR Data Format — Enhanced Expanded
Position Data Field Description
1–2 Time of day-hours
3–4 Time of day-minutes
5 Space
6 Duration-hours
7–8 Duration-minutes
9 Duration-tenths of minutes
10 Space
11 Condition code
12 Space
13–16 Access code dialed
17 Space
18–21 Access code...

DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
Features and technical reference
1245 Call Detail Recording
20
65 Space
66–72 Authorization code
73 Space
74–75 Time in queue
76 Space
77 FRL
78 Space
79–81 Incoming circuit ID
82 Space
83–85 Outgoing circuit ID
86 Space
87 Feature flag
88 Space
89–90 Attendant console
91 Space
92–95 Incoming TAC
96 Space
97–98 Node number
99 Space
100–102 ISDN NSV
103 Space
104–107 IXC code
108 Space
109 BCC
110 Space
111 MA-UUI
112...

DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
Features and technical reference
1246 Call Detail Recording
20
113 Resource flag
114 Space
115–118 Packet count
119 Space
120 TSC flag
121 Space
122–123 Bandwidth
124 Space
125–130 ISDN CC (digits 1–6)
131–135 ISDN CC (digits 7–11)/PPM count (1–5)
136–146 Reserved for future use
147 Carriage return
148 Line feed
149–151 Null
Table 40. CDR Data Format — Unformatted
Position Data Field Description
1–2 Time of day-hours
3–4...
