Lucent Technologies DEFINITY Enterprise Communication Server Release 8.2 Administrators Guide

DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
Features and technical reference
1277 Call Detail Recording
20

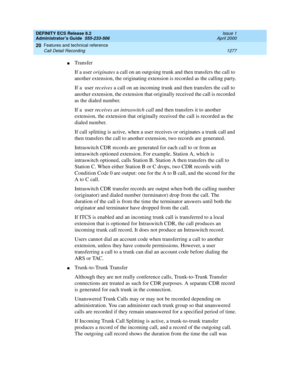

nTransfer
If a user originates a call on an outgoing trunk and then transfers the call to
another extension, the originating extension is recorded as the calling party.
If a  user receives a call on an incoming trunk and then transfers the call to
another extension, the extension that originally received the call is recorded
as the dialed number.
If a  user...

DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
Features and technical reference
1278 Call Forwarding
20

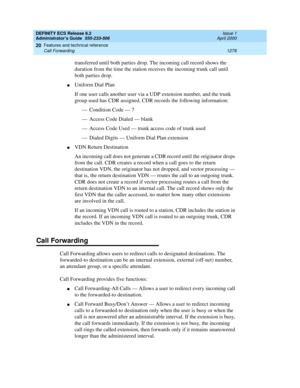

transferred until both parties drop. The incoming call record shows the
duration from the time the station receives the incoming trunk call until
both parties drop.
nUniform Dial Plan
If one user calls another user via a UDP extension number, and the trunk
group used has CDR assigned, CDR records the following information:
— Condition Code — 7
— Access Code Dialed...

DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
Features and technical reference
1279 Call Forwarding
20

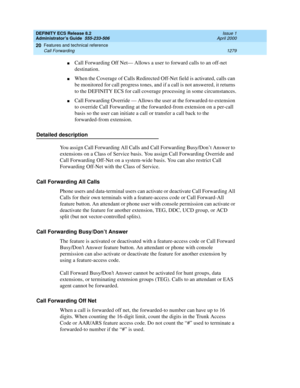

nCall Forwarding Off Net— Allows a user to forward calls to an off-net
destination.
nWhen the Coverage of Calls Redirected Off-Net field is activated, calls can
be monitored for call progress tones, and if a call is not answered, it returns
to the DEFINITY ECS for call coverage processing in some circumstances.
nCall Forwarding Override — Allows the user at the...

DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
Features and technical reference
1280 Call Forwarding
20

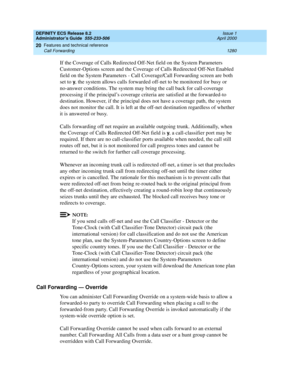

If the Coverage of Calls Redirected Off-Net field on the System Parameters
Customer-Options screen and the Coverage of Calls Redirected Off-Net Enabled
field on the System Parameters - Call Coverage/Call Forwarding screen are both
set to
y, the system allows calls forwarded off-net to be monitored for busy or
no-answer conditions. The system may bring the call...

DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
Features and technical reference
1281 Call Forwarding
20

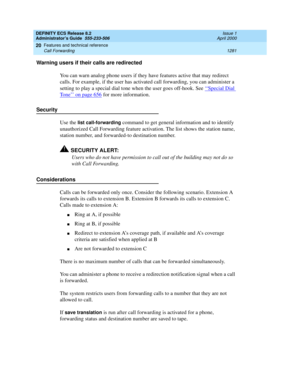

Warning users if their calls are redirected
You can warn analog phone users if they have features active that may redirect
calls. For example, if the user has activated call forwarding, you can administer a
setting to play a special dial tone when the user goes off-hook. See ‘‘
Special Dial
Tone’’ on page 656 for more information.
Security
Use the
list...

DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
Features and technical reference
1282 Call Forwarding
20

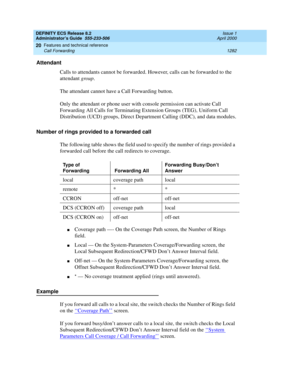

Attendant
Calls to attendants cannot be forwarded. However, calls can be forwarded to the
attendant group.
The attendant cannot have a Call Forwarding button.
Only the attendant or phone user with console permission can activate Call
Forwarding All Calls for Terminating Extension Groups (TEG), Uniform Call
Distribution (UCD) groups, Direct Department Calling (DDC),...

DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
Features and technical reference
1283 Call Forwarding
20

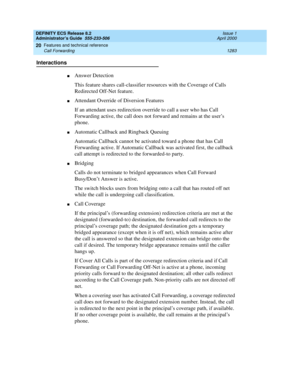

Interactions
nAnswer Detection
This feature shares call-classifier resources with the Coverage of Calls
Redirected Off-Net feature.
nAttendant Override of Diversion Features
If an attendant uses redirection override to call a user who has Call
Forwarding active, the call does not forward and remains at the user’s
phone.
nAutomatic Callback and Ringback Queuing...

DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
Features and technical reference
1284 Call Forwarding
20
nCall Detail Recording
When a call is forwarded to an off-net number, the call is recorded in CDR
records as a call from the forwarding station. When the Coverage of Calls
Redirected Off-Net field is
y, a CDR record is generated only after the call
has actually been answered off net.
If forced entry of account codes is required, calls cannot be forwarded to...

DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
Features and technical reference
1285 Call Forwarding
20
nExpert Agent Selection
Agents logged in with EAS enabled cannot activate or deactivate Call
Forwarding. The physical extension where the EAS agent is logged in can
be forwarded, but the EAS agent must first log out. Then, the phone can be
forwarded.
nHold
If any party is on hold when a forwarded-to call routes off net, that call
does not undergo call...

DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
Features and technical reference
1286 Call Forwarding
20

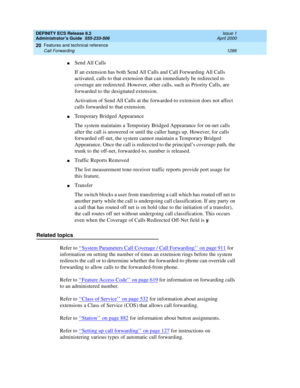

nSend All Calls
If an extension has both Send All Calls and Call Forwarding All Calls
activated, calls to that extension that can immediately be redirected to
coverage are redirected. However, other calls, such as Priority Calls, are
forwarded to the designated extension.
Activation of Send All Calls at the forwarded-to extension does not affect
calls forwarded to...
