Lucent Technologies DEFINITY Enterprise Communication Server Release 8.2 Administrators Guide

DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
Features and technical reference
1297 Call-by-Call Service Selection
20
Figure Notes
Using Country Protocol 1, you integrate services and features such as
MEGACOM, ACCUNET, and INWATS onto a single ISDN-PRI trunk group with
flexible assignment of trunks to each service or feature. Calls such as an incoming
800 Service call that requires through-switching as an Outgoing WATS call can be
routed via the same facility. See...

DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
Features and technical reference

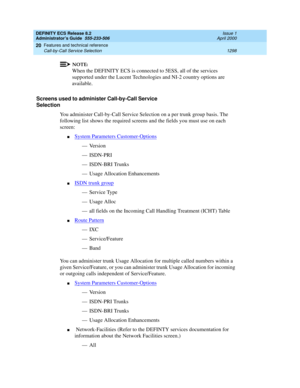

1298 Call-by-Call Service Selection
20
NOTE:
When the DEFINITY ECS is connected to 5ESS, all of the services
supported under the Lucent Technologies and NI-2 country options are
available.
Screens used to administer Call-by-Call Service
Selection
You administer Call-by-Call Service Selection on a per trunk group basis. The
following list shows the required screens and the fields you must...

DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
Features and technical reference

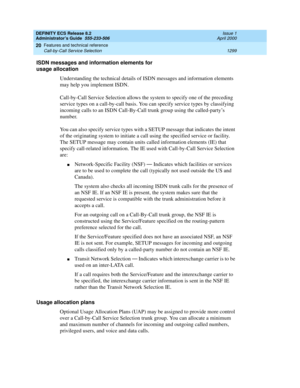

1299 Call-by-Call Service Selection
20
ISDN messages and information elements for
usage allocation
Understanding the technical details of ISDN messages and information elements
may help you implement ISDN.
Call-by-Call Service Selection allows the system to specify one of the preceding
service types on a call-by-call basis. You can specify service types by classifying
incoming calls to...

DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
Features and technical reference

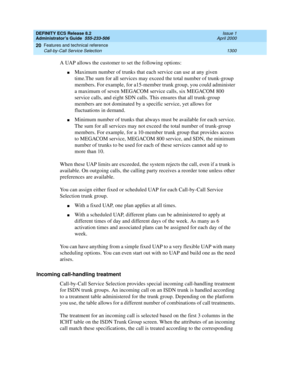

1300 Call-by-Call Service Selection
20
A UAP allows the customer to set the following options:
nMaximum number of trunks that each service can use at any given
time.The sum for all services may exceed the total number of trunk-group
members. For example, for a15-member trunk group, you could administer
a maximum of seven MEGACOM service calls, six MEGACOM 800
service calls, and eight SDN...

DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
Features and technical reference

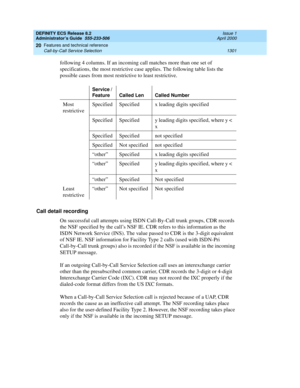

1301 Call-by-Call Service Selection
20
following 4 columns. If an incoming call matches more than one set of
specifications, the most restrictive case applies. The following table lists the
possible cases from most restrictive to least restrictive.
Call detail recording
On successful call attempts using ISDN Call-By-Call trunk groups, CDR records
the NSF specified by the call’s NSF IE....

DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
Features and technical reference

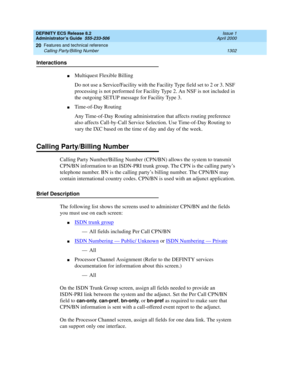

1302 Calling Party/Billing Number
20
Interactions
nMultiquest Flexible Billing
Do not use a Service/Facility with the Facility Type field set to 2 or 3. NSF
processing is not performed for Facility Type 2. An NSF is not included in
the outgoing SETUP message for Facility Type 3.
nTime-of-Day Routing
Any Time-of-Day Routing administration that affects routing preference
also affects...

DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
Features and technical reference

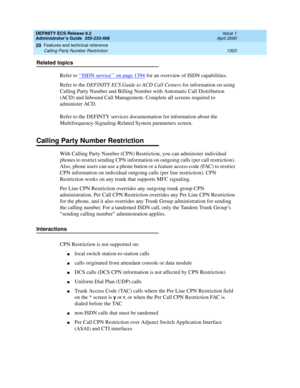

1303 Calling Party Number Restriction
20
Related topics
Refer to ‘‘
ISDN service’’ on page 1394 for an overview of ISDN capabilities.
Refer to the DEFINITY ECS Guide to ACD Call Centers for information on using
Calling Party Number and Billing Number with Automatic Call Distribution
(ACD) and Inbound Call Management. Complete all screens required to
administer ACD.
Refer to the DEFINTY...

DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
Features and technical reference

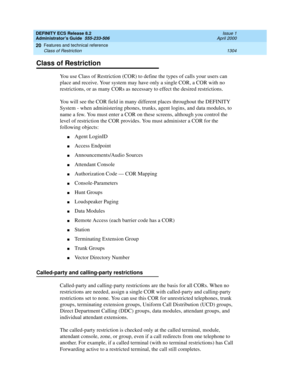

1304 Class of Restriction
20
Class of Restriction
You use Class of Restriction (COR) to define the types of calls your users can
place and receive. Your system may have only a single COR, a COR with no
restrictions, or as many CORs as necessary to effect the desired restrictions.
You will see the COR field in many different places throughout the DEFINITY
System - when administering...

DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
Features and technical reference

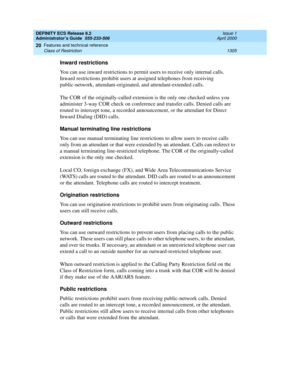

1305 Class of Restriction
20
Inward restrictions
You can use inward restrictions to permit users to receive only internal calls.
Inward restrictions prohibit users at assigned telephones from receiving
public-network, attendant-originated, and attendant-extended calls.
The COR of the originally-called extension is the only one checked unless you
administer 3-way COR check on conference...

DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
Features and technical reference

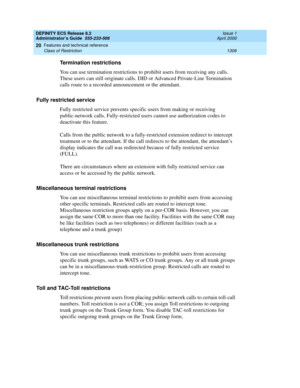

1306 Class of Restriction
20
Termination restrictions
You can use termination restrictions to prohibit users from receiving any calls.
These users can still originate calls. DID or Advanced Private-Line Termination
calls route to a recorded announcement or the attendant.
Fully restricted service
Fully restricted service prevents specific users from making or receiving
public-network...
