Lucent Technologies DEFINITY Enterprise Communication Server Release 8.2 Administrators Guide

DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
Features and technical reference

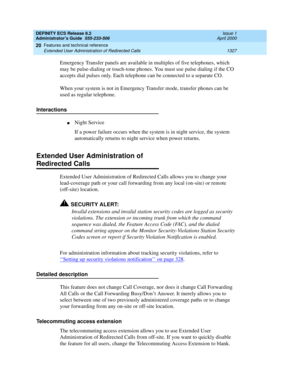

1327 Extended User Administration of Redirected Calls
20
Emergency Transfer panels are available in multiples of five telephones, which
may be pulse-dialing or touch-tone phones. You must use pulse dialing if the CO
accepts dial pulses only. Each telephone can be connected to a separate CO.
When your system is not in Emergency Transfer mode, transfer phones can be
used as regular...

DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
Features and technical reference

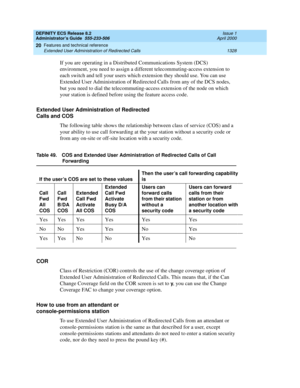

1328 Extended User Administration of Redirected Calls
20
If you are operating in a Distributed Communications System (DCS)
environment, you need to assign a different telecommuting-access extension to
each switch and tell your users which extension they should use. You can use
Extended User Administration of Redirected Calls from any of the DCS nodes,
but you need to dial the...

DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
Features and technical reference
1329 Extended User Administration of Redirected Calls
20
How to use from an off-site location
To use Extended User Administration of Redirected Calls from off-site, you must
first access the telecommuting-access extension. If you make the request via
Direct Inward Dialing (DID), you must precede the extension with the correct
public-network prefix. If you make the request via a trunk...

DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
Features and technical reference

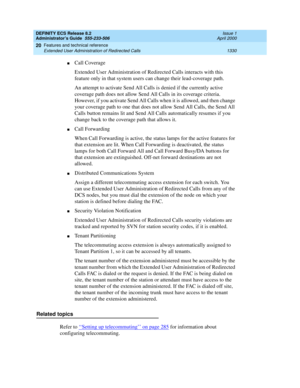

1330 Extended User Administration of Redirected Calls
20
nCall Coverage
Extended User Administration of Redirected Calls interacts with this
feature only in that system users can change their lead-coverage path.
An attempt to activate Send All Calls is denied if the currently active
coverage path does not allow Send All Calls in its coverage criteria.
However, if you activate Send All...

DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
Features and technical reference

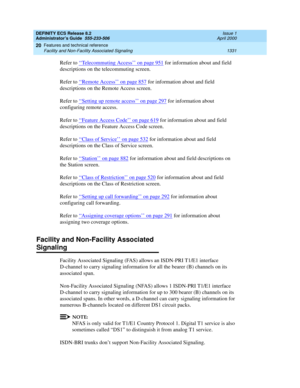

1331 Facility and Non-Facility Associated Signaling
20
Refer to ‘‘Telecommuting Access’’ on page 951 for information about and field
descriptions on the telecommuting screen.
Refer to ‘‘
Remote Access’’ on page 857 for information about and field
descriptions on the Remote Access screen.
Refer to ‘‘
Setting up remote access’’ on page 297 for information about
configuring remote access....

DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
Features and technical reference

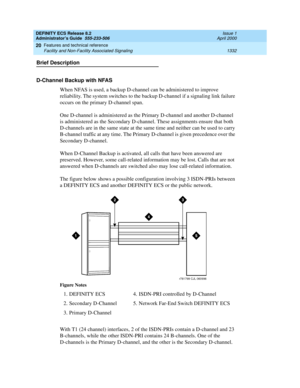

1332 Facility and Non-Facility Associated Signaling
20
Brief Description
D-Channel Backup with NFAS
When NFAS is used, a backup D-channel can be administered to improve
reliability. The system switches to the backup D-channel if a signaling link failure
occurs on the primary D-channel span.
One D-channel is administered as the Primary D-channel and another D-channel
is administered as the...

DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
Features and technical reference

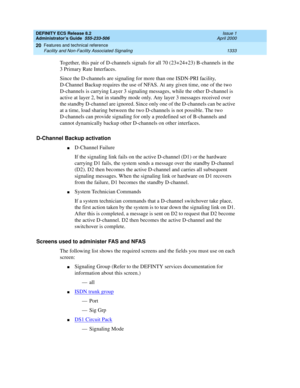

1333 Facility and Non-Facility Associated Signaling
20
Together, this pair of D-channels signals for all 70 (23+24+23) B-channels in the
3 Primary Rate Interfaces.
Since the D-channels are signaling for more than one ISDN-PRI facility,
D-Channel Backup requires the use of NFAS. At any given time, one of the two
D-channels is carrying Layer 3 signaling messages, while the other D-channel...

DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
Features and technical reference

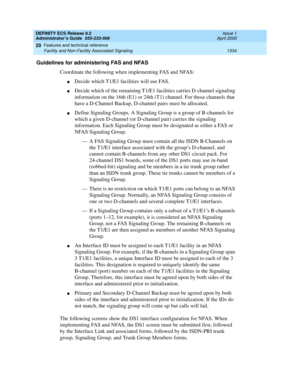

1334 Facility and Non-Facility Associated Signaling
20
Guidelines for administering FAS and NFAS
Coordinate the following when implementing FAS and NFAS:
nDecide which T1/E1 facilities will use FAS.
nDecide which of the remaining T1/E1 facilities carries D-channel signaling
information on the 16th (E1) or 24th (T1) channel. For those channels that
have a D-Channel Backup, D-channel pairs...

DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
Features and technical reference

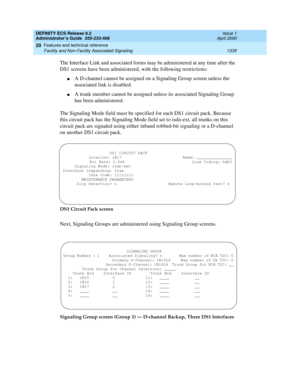

1335 Facility and Non-Facility Associated Signaling
20
The Interface Link and associated forms may be administered at any time after the
DS1 screens have been administered, with the following restrictions:
nA D-channel cannot be assigned on a Signaling Group screen unless the
associated link is disabled.
nA trunk member cannot be assigned unless its associated Signaling Group
has been...

DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
Features and technical reference

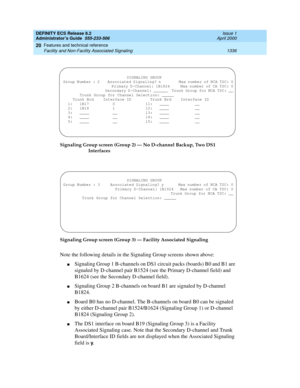

1336 Facility and Non-Facility Associated Signaling
20
Signaling Group screen (Group 2) — No D-channel Backup, Two DS1
Interfaces
Signaling Group screen (Group 3) — Facility Associated Signaling
Note the following details in the Signaling Group screens shown above:
nSignaling Group 1 B-channels on DS1 circuit packs (boards) B0 and B1 are
signaled by D-channel pair B1524 (see the Primary...
