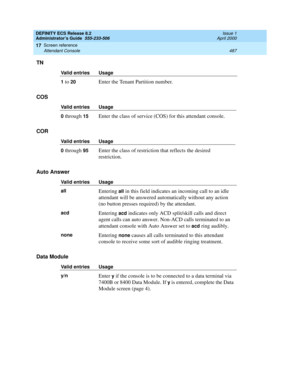

Lucent Technologies DEFINITY Enterprise Communication Server Release 8.2 Administrators Guide

DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
Screen reference
487 Attendant Console
17
TN
COS
COR
Auto Answer
Data Module
Valid entries Usage
1
 to 20Enter the Tenant Partition number.
Valid entries Usage
0
 through 15Enter the class of service (COS) for this attendant console.
Valid entries Usage
0
 through 95Enter the class of restriction that reflects the desired
restriction.
Valid entries Usage
all
Entering all in this field indicates an incoming call to an idle...

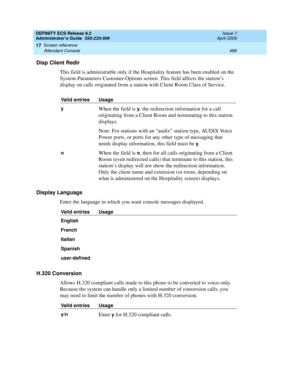

DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
Screen reference
488 Attendant Console
17
Disp Client Redir
This field is administrable only if the Hospitality feature has been enabled on the
System-Parameters Customer-Options screen. This field affects the station’s
display on calls originated from a station with Client Room Class of Service.
Display Language
Enter the language in which you want console messages displayed.
H.320 Conversion
Allows H.320 compliant calls...

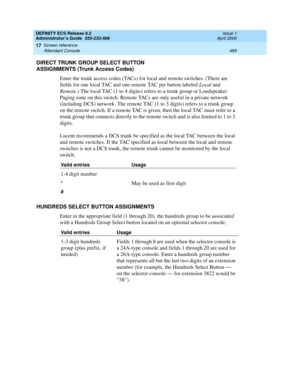

DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
Screen reference
489 Attendant Console
17
DIRECT TRUNK GROUP SELECT BUTTON
ASSIGNMENTS (Trunk Access Codes)
Enter the trunk access codes (TACs) for local and remote switches. (There are
fields for one local TAC and one remote TAC per button labeled Local and
Remote.) The local TAC (1 to 4 digits) refers to a trunk group or Loudspeaker
Paging zone on this switch. Remote TACs are only useful in a private network...

DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
Screen reference
490 Attendant Console
17

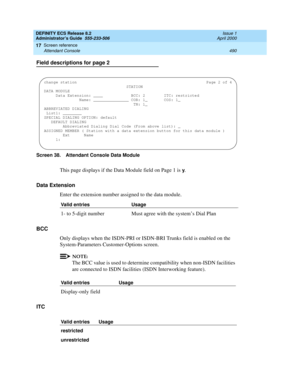

Field descriptions for page 2
Screen 38. Attendant Console Data Module
This page displays if the Data Module field on Page 1 is y.
Data Extension
Enter the extension number assigned to the data module.
BCC
Only displays when the ISDN-PRI or ISDN-BRI Trunks field is enabled on the
System-Parameters Customer-Options screen.
NOTE:
The BCC value is used to determine compatibility...

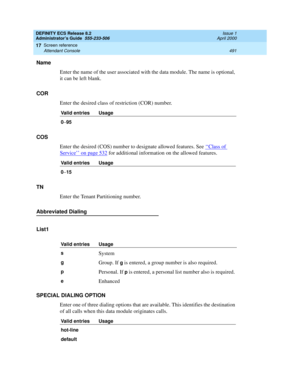

DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
Screen reference
491 Attendant Console
17
Name
Enter the name of the user associated with the data module. The name is optional,
it can be left blank.
COR
Enter the desired class of restriction (COR) number.
COS
Enter the desired (COS) number to designate allowed features. See ‘‘
Class of
Service’’ on page 532 for additional information on the allowed features.
TN
Enter the Tenant Partitioning number.
Abbreviated Dialing...

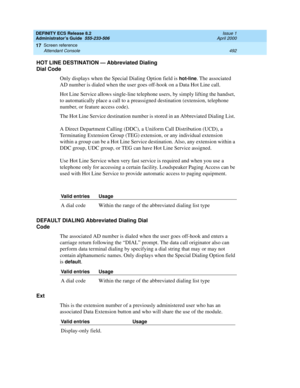

DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
Screen reference
492 Attendant Console
17
HOT LINE DESTINATION — Abbreviated Dialing
Dial Code
Only displays when the Special Dialing Option field is
hot-line. The associated
AD number is dialed when the user goes off-hook on a Data Hot Line call.
Hot Line Service allows single-line telephone users, by simply lifting the handset,
to automatically place a call to a preassigned destination (extension, telephone
number,...

DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
Screen reference
493 Attendant Console
17

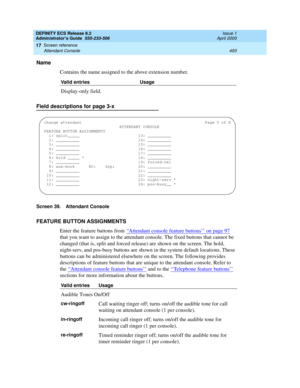

Name
Contains the name assigned to the above extension number.
Field descriptions for page 3-x
Screen 39. Attendant Console
FEATURE BUTTON ASSIGNMENTS
Enter the feature buttons from ‘‘
Attendant console feature buttons’’ on page 97
that you want to assign to the attendant console. The fixed buttons that cannot be
changed (that is, split and forced release) are shown on the screen....

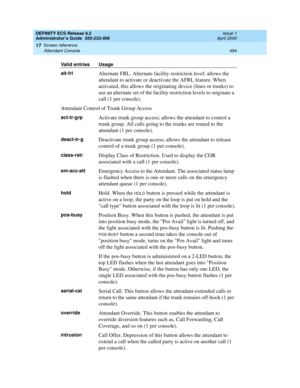

DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
Screen reference
494 Attendant Console
17
alt-frlAlternate FRL. Alternate facility restriction level; allows the
attendant to activate or deactivate the AFRL feature. When
activated, this allows the originating device (lines or trunks) to
use an alternate set of the facility restriction levels to originate a
call (1 per console).
Attendant Control of Trunk Group Access
act-tr-grpActivate trunk group access; allows the...

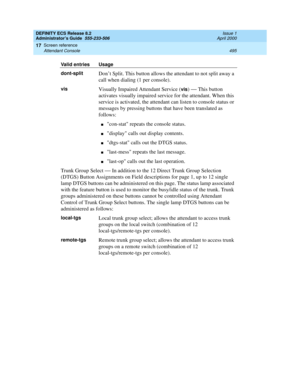

DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
Screen reference
495 Attendant Console
17
dont-splitDon’t Split. This button allows the attendant to not split away a
call when dialing (1 per console).
visVisually Impaired Attendant Service (vis) — This button
activates visually impaired service for the attendant. When this
service is activated, the attendant can listen to console status or
messages by pressing buttons that have been translated as
follows:
ncon-stat...

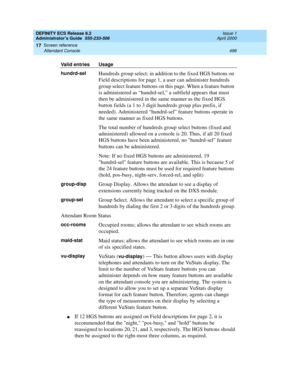

DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
Screen reference
496 Attendant Console
17
nIf 12 HGS buttons are assigned on Field descriptions for page 2, it is
recommended that the night, pos-busy, and hold buttons be
reassigned to locations 20, 21, and 3, respectively. The HGS buttons should
then be assigned to the right-most three columns, as required.
hundrd-selHundreds group select; in addition to the fixed HGS buttons on
Field descriptions for page 1, a user...
