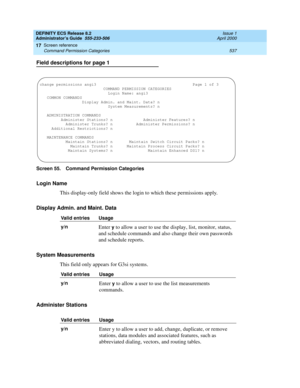

Lucent Technologies DEFINITY Enterprise Communication Server Release 8.2 Administrators Guide

DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
Screen reference
537 Command Permission Categories
17
Field descriptions for page 1
Screen 55. Command Permission Categories
Login Name
This display-only field shows the login to which these permissions apply.
Display Admin. and Maint. Data
System Measurements
This field only appears for G3si systems.
Administer Stations
Valid entries Usage
y/n
Enter y to allow a user to use the display, list, monitor, status,
and...

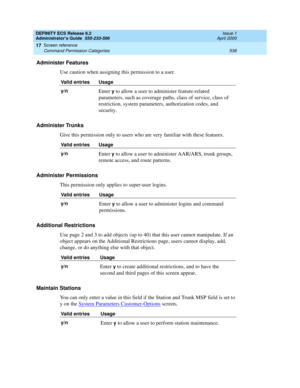

DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
Screen reference
538 Command Permission Categories
17
Administer Features
Use caution when assigning this permission to a user.
Administer Trunks
Give this permission only to users who are very familiar with these features.
Administer Permissions
This permission only applies to super-user logins.
Additional Restrictions
Use page 2 and 3 to add objects (up to 40) that this user cannot manipulate. If an
object appears on the...

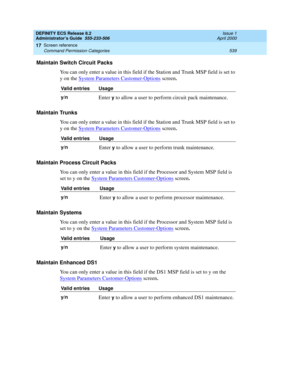

DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
Screen reference
539 Command Permission Categories
17
Maintain Switch Circuit Packs
You can only enter a value in this field if the Station and Trunk MSP field is set to
y on the System Parameters Customer-Options
 screen.
Maintain Trunks
You can only enter a value in this field if the Station and Trunk MSP field is set to
y on the System Parameters Customer-Options
 screen.
Maintain Process Circuit Packs
You can only...

DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
Screen reference
540 Console Parameters
17
Field descriptions for page 2
Screen 56. Command Permission Categories—Restricted Object List screen
Pages 2 and 3 of this screen are identical, and allow you to specify up to 40 objects
that this user cannot access. These pages do not appear unless you set both the
Administer Station and Additional Restrictions fields to y on page 1 of this screen.
If you want to limit a user’s...

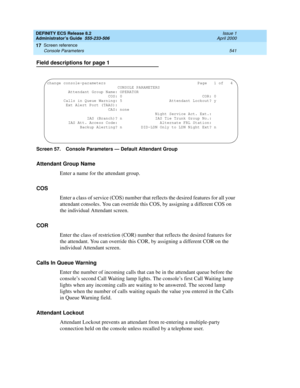

DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
Screen reference
541 Console Parameters
17
Field descriptions for page 1
Screen 57. Console Parameters — Default Attendant Group
Attendant Group Name
Enter a name for the attendant group.
COS
Enter a class of service (COS) number that reflects the desired features for all your
attendant consoles. You can override this COS, by assigning a different COS on
the individual Attendant screen.
COR
Enter the class of restriction...

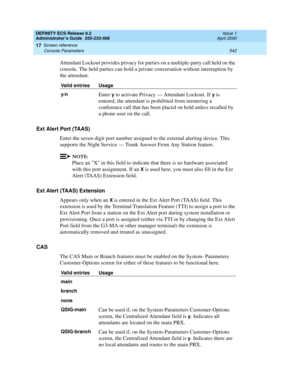

DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
Screen reference
542 Console Parameters
17
Attendant Lockout provides privacy for parties on a multiple-party call held on the
console. The held parties can hold a private conversation without interruption by
the attendant.
Ext Alert Port (TAAS)
Enter the seven-digit port number assigned to the external alerting device. This
supports the Night Service — Trunk Answer From Any Station feature.
NOTE:
Place an X in this...

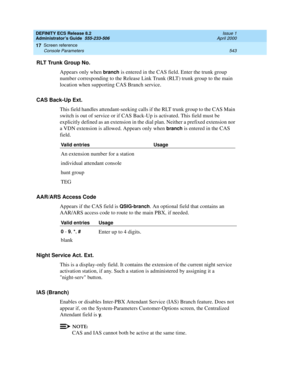

DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
Screen reference
543 Console Parameters
17
RLT Trunk Group No.
Appears only when
branch is entered in the CAS field. Enter the trunk group
number corresponding to the Release Link Trunk (RLT) trunk group to the main
location when supporting CAS Branch service.
CAS Back-Up Ext.
This field handles attendant-seeking calls if the RLT trunk group to the CAS Main
switch is out of service or if CAS Back-Up is activated. This...

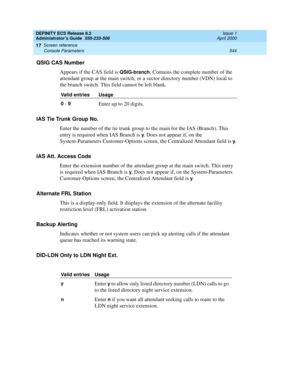

DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
Screen reference
544 Console Parameters
17
QSIG CAS Number
Appears if the CAS field is
QSIG-branch. Contains the complete number of the
attendant group at the main switch, or a vector directory number (VDN) local to
the branch switch. This field cannot be left blank.
IAS Tie Trunk Group No.
Enter the number of the tie trunk group to the main for the IAS (Branch). This
entry is required when IAS Branch is
y. Does not...

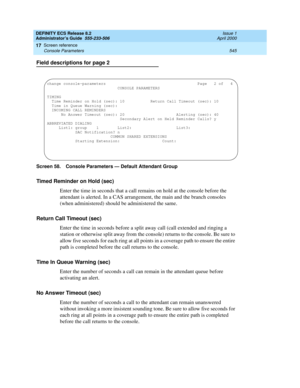

DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
Screen reference
545 Console Parameters
17
Field descriptions for page 2
Screen 58. Console Parameters — Default Attendant Group
Timed Reminder on Hold (sec)
Enter the time in seconds that a call remains on hold at the console before the
attendant is alerted. In a CAS arrangement, the main and the branch consoles
(when administered) should be administered the same.
Return Call Timeout (sec)
Enter the time in seconds...

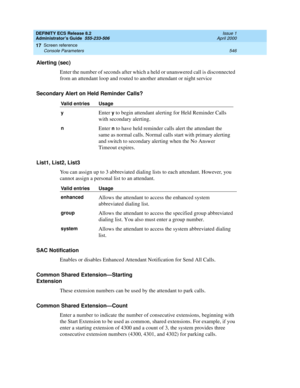

DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
Screen reference
546 Console Parameters
17
Alerting (sec)
Enter the number of seconds after which a held or unanswered call is disconnected
from an attendant loop and routed to another attendant or night service
Secondary Alert on Held Reminder Calls?
List1, List2, List3
You can assign up to 3 abbreviated dialing lists to each attendant. However, you
cannot assign a personal list to an attendant.
SAC Notification
Enables...
