Lucent Technologies DEFINITY Enterprise Communication Server Release 8.2 Administrators Guide

DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
Screen reference

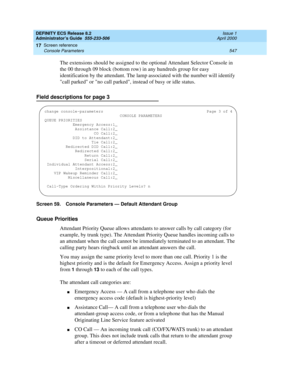

547 Console Parameters
17
The extensions should be assigned to the optional Attendant Selector Console in
the 00 through 09 block (bottom row) in any hundreds group for easy
identification by the attendant. The lamp associated with the number will identify
call parked or no call parked, instead of busy or idle status.
Field descriptions for page 3
Screen 59. Console Parameters — Default Attendant Group...

DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
Screen reference

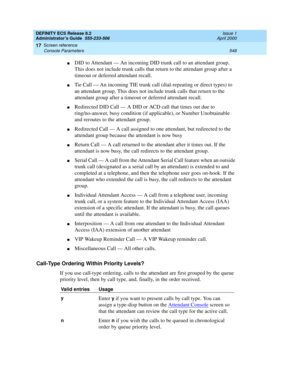

548 Console Parameters
17
nDID to Attendant — An incoming DID trunk call to an attendant group.
This does not include trunk calls that return to the attendant group after a
timeout or deferred attendant recall.
nTie Call — An incoming TIE trunk call (dial-repeating or direct types) to
an attendant group. This does not include trunk calls that return to the
attendant group after a timeout or deferred...

DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
Screen reference

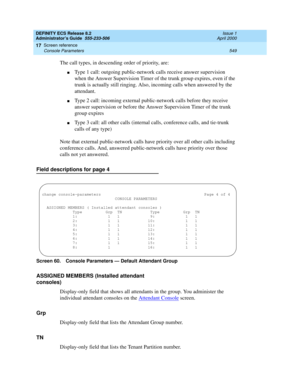

549 Console Parameters
17
The call types, in descending order of priority, are:
nType 1 call: outgoing public-network calls receive answer supervision
when the Answer Supervision Timer of the trunk group expires, even if the
trunk is actually still ringing. Also, incoming calls when answered by the
attendant.
nType 2 call: incoming external public-network calls before they receive
answer supervision or...

DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
Screen reference

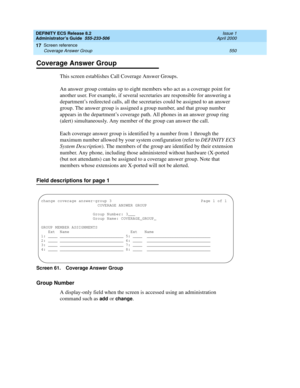

550 Coverage Answer Group
17
Coverage Answer Group
This screen establishes Call Coverage Answer Groups.
An answer group contains up to eight members who act as a coverage point for
another user. For example, if several secretaries are responsible for answering a
department’s redirected calls, all the secretaries could be assigned to an answer
group. The answer group is assigned a group number, and that...

DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
Screen reference
551 Coverage Path
17
Group Name
Enter the group name you want to use to identify this group.
Tip:
Enter the extension numbers that are group members. This allows a list
coverage answer group command to be used to list the phones that will be
alerted. The list command can be used in conjunction with the list station,
list coverage path, and list hunt group commands to determine stations
involved in call...

DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
Screen reference

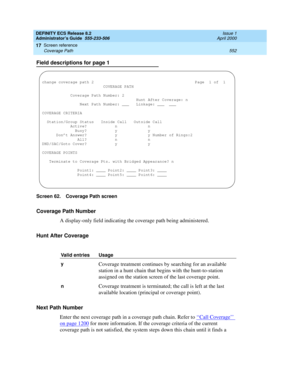

552 Coverage Path
17
Field descriptions for page 1
Screen 62. Coverage Path screen
Coverage Path Number
A display-only field indicating the coverage path being administered.
Hunt After Coverage
Next Path Number
Enter the next coverage path in a coverage path chain. Refer to ‘‘
Call Coverage’’
on page 1200 for more information. If the coverage criteria of the current
coverage path is not satisfied, the...

DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
Screen reference

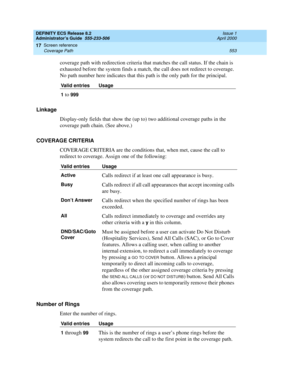

553 Coverage Path
17
coverage path with redirection criteria that matches the call status. If the chain is
exhausted before the system finds a match, the call does not redirect to coverage.
No path number here indicates that this path is the only path for the principal.
Linkage
Display-only fields that show the (up to) two additional coverage paths in the
coverage path chain. (See above.)
COVERAGE...

DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
Screen reference

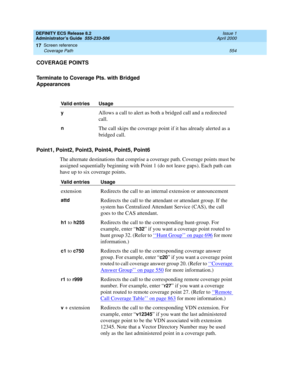

554 Coverage Path
17
COVERAGE POINTS
Terminate to Coverage Pts. with Bridged
Appearances
Point1, Point2, Point3, Point4, Point5, Point6
The alternate destinations that comprise a coverage path. Coverage points must be
assigned sequentially beginning with Point 1 (do not leave gaps). Each path can
have up to six coverage points.
Valid entries Usage
y
  Allows a call to alert as both a bridged call and a...

DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
Screen reference

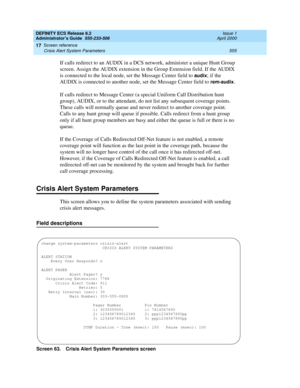

555 Crisis Alert System Parameters
17
If calls redirect to an AUDIX in a DCS network, administer a unique Hunt Group
screen. Assign the AUDIX extension in the Group Extension field. If the AUDIX
is connected to the local node, set the Message Center field to
audix; if the
AUDIX is connected to another node, set the Message Center field to
rem-audix.
If calls redirect to Message Center (a special...

DEFINITY ECS Release 8.2
Administrator’s Guide  555-233-506  Issue 1
April 2000
Screen reference

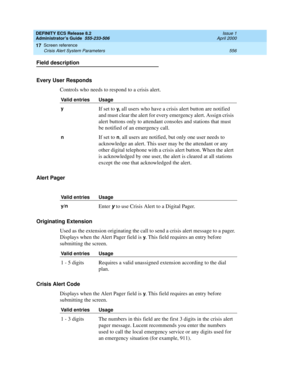

556 Crisis Alert System Parameters
17
Field description
Every User Responds
Controls who needs to respond to a crisis alert.
Alert Pager
Originating Extension
Used as the extension originating the call to send a crisis alert message to a pager.
Displays when the Alert Pager field is
y. This field requires an entry before
submitting the screen.
Crisis Alert Code
Displays when the Alert Pager field is
y....
