Mitel Sx 200 El/ml Technicians Handbook

Installation
171
Installation

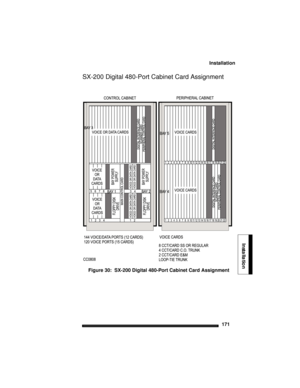

SX-200 Digital 480-Port Cabinet Card Assignment
Figure 30:  SX-200 Digital 480-Port Cabinet Card Assignment

Technician’s Handbook
172

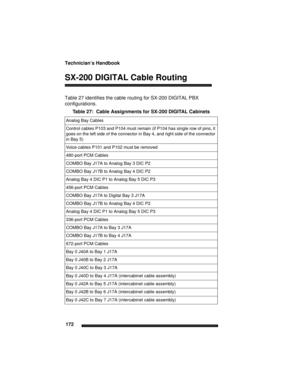

SX-200 DIGITAL Cable Routing
Table 27 identifies the cable routing for SX-200 DIGITAL PBX
configurations.
Table 27:  Cable Assignments for SX-200 DIGITAL Cabinets
Analog Bay Cables
Control cables P103 and P104 must remain (if P104 has single row of pins, it
goes on the left side of the connector in Bay 4, and right side of the connector
in Bay 5)
Voice cables P101 and P102 must be removed
480-port PCM Cables
COMBO Bay J17A to Analog Bay 3 DIC P2
COMBO Bay J17B to Analog Bay 4...

Installation
173
Installation

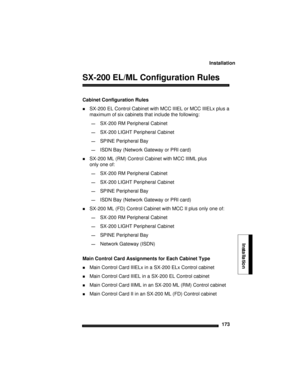

SX-200 EL/ML Configuration Rules
Cabinet Configuration Rules

SX-200 EL Control Cabinet with MCC IIIEL or MCC IIIELx plus a
maximum of six cabinets that include the following:
—SX-200 RM Peripheral Cabinet
—SX-200 LIGHT Peripheral Cabinet
—SPINE Peripheral Bay
—ISDN Bay (Network Gateway or PRI card)

SX-200 ML (RM) Control Cabinet with MCC IIIML plus
only one of:
—SX-200 RM Peripheral Cabinet
—SX-200 LIGHT Peripheral Cabinet
—SPINE Peripheral Bay
—ISDN Bay (Network Gateway...

Technician’s Handbook
174

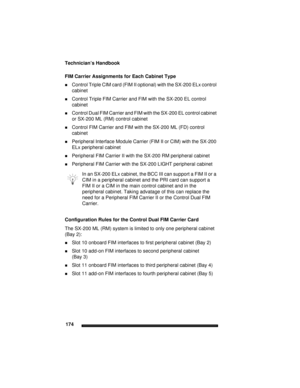

FIM Carrier Assignments for Each Cabinet Type

Control Triple CIM card (FIM II optional) with the SX-200 ELx control
cabinet

Control Triple FIM Carrier and FIM with the SX-200 EL control
cabinet

Control Dual FIM Carrier and FIM with the SX-200 EL control cabinet
or SX-200 ML (RM) control cabinet

Control FIM Carrier and FIM with the SX-200 ML (FD) control
cabinet

Peripheral Interface Module Carrier (FIM II or CIM) with the SX-200
ELx peripheral cabinet

Peripheral FIM...

Installation
175
Installation

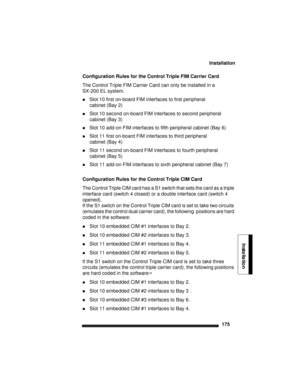

Configuration Rules for the Control Triple FIM Carrier Card
The Control Triple FIM Carrier Card can only be installed in a
SX-200 EL system.

Slot 10 first on-board FIM interfaces to first peripheral
cabinet (Bay 2)

Slot 10 second on-board FIM interfaces to second peripheral
cabinet (Bay 3)

Slot 10 add-on FIM interfaces to fifth peripheral cabinet (Bay 6)

Slot 11 first on-board FIM interfaces to third peripheral
cabinet (Bay 4)

Slot 11 second on-board FIM interfaces...

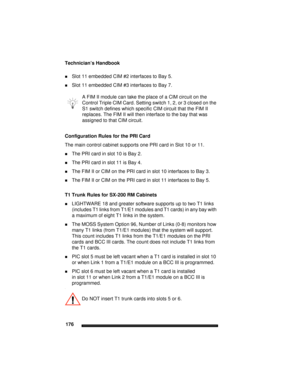

Technician’s Handbook
176

Slot 11 embedded CIM #2 interfaces to Bay 5.

Slot 11 embedded CIM #3 interfaces to Bay 7.
Configuration Rules for the PRI Card
The main control cabinet supports one PRI card in Slot 10 or 11.

The PRI card in slot 10 is Bay 2.

The PRI card in slot 11 is Bay 4.

The FIM II or CIM on the PRI card in slot 10 interfaces to Bay 3.

The FIM II or CIM on the PRI card in slot 11 interfaces to Bay 5.
T1 Trunk Rules for SX-200 RM Cabinets

LIGHTWARE 18 and greater software supports up...

Installation
177
Installation

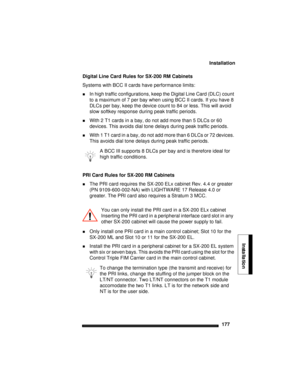

Digital Line Card Rules for SX-200 RM Cabinets
Systems with BCC II cards have performance limits:

In high traffic configurations, keep the Digital Line Card (DLC) count
to a maximum of 7 per bay when using BCC II cards. If you have 8
DLCs per bay, keep the device count to 84 or less. This will avoid
slow softkey response during peak traffic periods.

With 2 T1 cards in a bay, do not add more than 5 DLCs or 60
devices. This avoids dial tone delays during peak traffic...

Technician’s Handbook
178

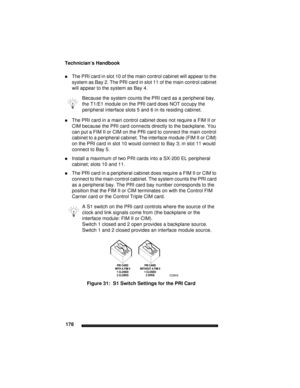

The PRI card in slot 10 of the main control cabinet will appear to the
system as Bay 2. The PRI card in slot 11 of the main control cabinet
will appear to the system as Bay 4.

The PRI card in a main control cabinet does not require a FIM II or
CIM because the PRI card connects directly to the backplane. You
can put a FIM II or CIM on the PRI card to connect the main control
cabinet to a peripheral cabinet. The interface module (FIM II or CIM)
on the PRI card in slot 10...

Installation
179
Installation

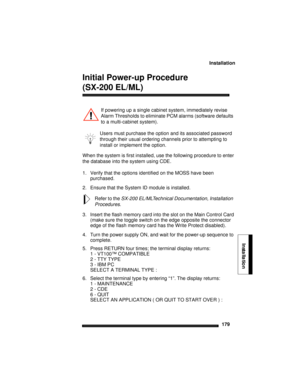

Initial Power-up Procedure
(SX-200 EL/ML)
When the system is first installed, use the following procedure to enter
the database into the system using CDE.
1. Verify that the options identified on the MOSS have been
purchased.
2. Ensure that the System ID module is installed.
3. Insert the flash memory card into the slot on the Main Control Card
(make sure the toggle switch on the edge opposite the connector
edge of the flash memory card has the Write Protect disabled)....

Technician’s Handbook
180

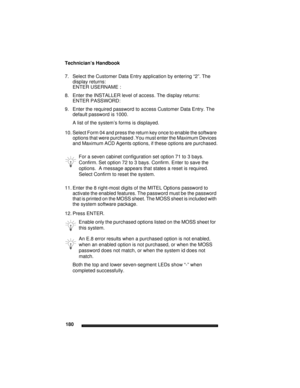

7. Select the Customer Data Entry application by entering “2”. The
display returns:
ENTER USERNAME :
8. Enter the INSTALLER level of access. The display returns:
ENTER PASSWORD:
9. Enter the required password to access Customer Data Entry. The
default password is 1000.
A list of the system’s forms is displayed.
10. Select Form 04 and press the return key once to enable the software
options that were purchased .You must enter the Maximum Devices
and Maximum ACD Agents...
