Mitel Sx 200 El/ml Technicians Handbook

Installation
221
Installation

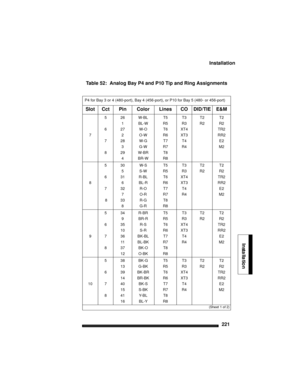

Table 52:  Analog Bay P4 and P10 Tip and Ring Assignments
P4 for Bay 3 or 4 (480-port), Bay 4 (456-port), or P10 for Bay 5 (480- or 456-port)
SlotCctPinColorLinesCODID/TIEE&M
526W-BLT5T3T2T2
1BL-WR5R3R2R2
627W-OT6XT4TR2
72O-WR6XT3RR2
728W-GT7T4E2
3G-WR7R4M2
829W-BRT8
4BR-WR8
530W-ST5T3T2T2
5S-WR5R3R2R2
631R-BLT6XT4TR2
86BL-RR6XT3RR2
732R-OT7T4E2
7O-RR7R4M2
 833R-GT8
8G-RR8
534R-BRT5T3T2T2
9BR-RR5R3R2R2
635R-ST6XT4TR2
10S-RR6XT3RR2
9736BK-BLT7T4E2
11BL-BKR7R4M2
837BK-OT8...

Technician’s Handbook
222

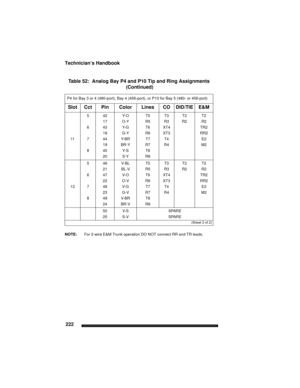

NOTE:For 2-wire E&M Trunk operation DO NOT connect RR and TR leads.
542Y- OT5T3T2T2
17O-YR5R3R2R2
643Y- GT6XT4TR2
18G-YR6XT3RR2
11744Y- B RT7T4E2
19BR-YR7R4M2
845Y- ST8
20S-YR8
546V-B LT5T3T2T2
21BL-VR5R3R2R2
647V-OT6XT4TR2
22O-VR6XT3RR2
12748V-GT7T4E2
23G-VR7R4M2
849V-BRT8
24BR-VR8
50V-SSPARE
25S-VSPARE
Table 52:  Analog Bay P4 and P10 Tip and Ring Assignments
 (Continued)
P4 for Bay 3 or 4 (480-port), Bay 4 (456-port), or P10 for Bay 5 (480- or 456-port)...

Installation
223
Installation

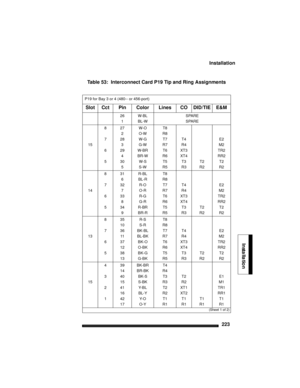

Table 53:  Interconnect Card P19 Tip and Ring Assignments
P19 for Bay 3 or 4 (480-- or 456-port)
SlotCctPinColorLinesCODID/TIEE&M
26W-BLSPARE
1BL-WSPARE
827W-OT8
2O-WR8
728W-GT7T4E2
153G-WR7R4M2
629W-BRT6XT3TR2
4BR-WR6XT4RR2
530W-ST5T3T2T2
5S-WR5R3R2R2
831R-BLT8
6BL-RR8
732R-OT7T4E2
147O-RR7R4M2
633R-GT6XT3TR2
8G-RR6XT4RR2
534R-BRT5T3T2T2
9BR-RR5R3R2R2
835R-ST8
10S-RR8
736BK-BLT7T4E2
1311BL-BKR7R4M2
637BK-OT6XT3TR2
12O-BKR6XT4RR2
538BK-GT5T3T2T2...

Technician’s Handbook
224

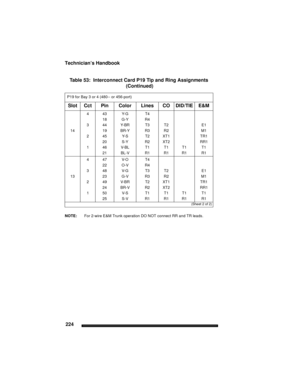

NOTE:For 2-wire E&M Trunk operation DO NOT connect RR and TR leads.
443Y- GT4
18G-YR4
344Y- B RT3T2E1
1419BR-YR3R2M1
245Y- ST2XT1TR1
20S-YR2XT2RR1
146V- B LT1T1T1T1
21BL-VR1R1R1R1
447V- OT4
22O-VR4
348V- GT3T2E1
1323G-VR3R2M1
249V-B RT2XT1TR1
24BR-VR2XT2RR1
150V-ST1T1T1T1
25S-VR1R1R1R1
Table 53:  Interconnect Card P19 Tip and Ring Assignments
 (Continued)
P19 for Bay 3 or 4 (480-- or 456-port)
SlotCctPinColorLinesCODID/TIEE&M
 (Sheet 2 of 2)

Installation
225
Installation

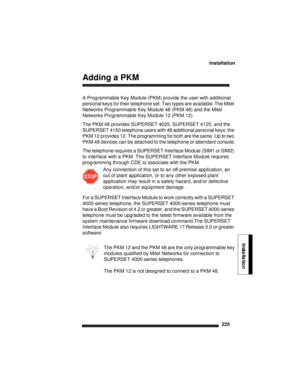

Adding a PKM
A Programmable Key Module (PKM) provide the user with additional
personal keys for their telephone set. Two types are available: The Mitel
Networks Programmable Key Module 48 (PKM 48) and the Mitel
Networks Programmable Key Module 12 (PKM 12).
The PKM 48 provides SUPERSET 4025, SUPERSET 4125, and the
SUPERSET 4150 telephone users with 48 additional personal keys; the
PKM 12 provides 12. The programming for both are the same. Up to two
PKM 48 devices can be...

Technician’s Handbook
226
The SUPERSET 4025 telephone requires a power adapter for the
SUPERSET Interface Module connection. The unpowered power
adapter plugs into the interface module’s power jack.

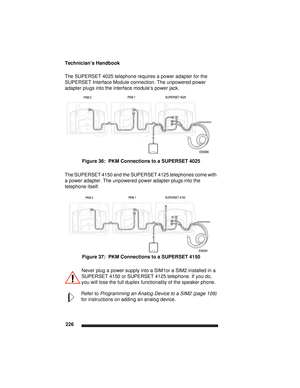

Figure 36:  PKM Connections to a SUPERSET 4025
The SUPERSET 4150 and the SUPERSET 4125 telephones come with
a power adapter. The unpowered power adapter plugs into the
telephone itself.
Figure 37:  PKM Connections to a SUPERSET 4150
Never plug a power supply into a SIM1or a SIM2 installed in a
SUPERSET...

Installation
227
Installation
PKM to an Attendant Console

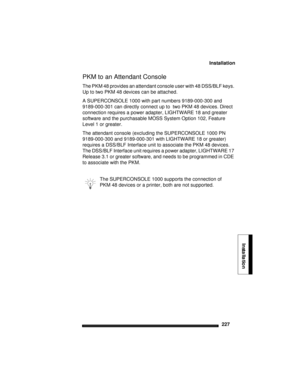

The PKM 48 provides an attendant console user with 48 DSS/BLF keys.
Up to two PKM 48 devices can be attached.
A SUPERCONSOLE 1000 with part numbers 9189-000-300 and
9189-000-301 can directly connect up to  two PKM 48 devices. Direct
connection requires a power adapter, LIGHTWARE 18 and greater
software and the purchasable MOSS System Option 102, Feature
Level 1 or greater.
The attendant console (excluding the SUPERCONSOLE 1000 PN...

Technician’s Handbook
228
The following diagram shows the connection of two PKM 48 devices
with the DSS/BLF Interface Unit. The maximum cable length between
the DSS/BLF Interface Unit and the first PKM is 5.0 m. The maximum
cable length between the first PKM and second PKM
is 0.6 m.

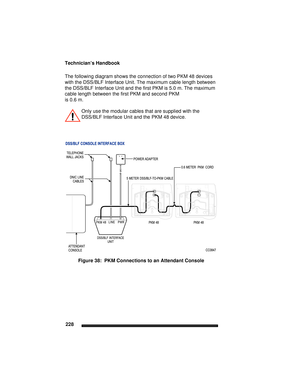

Figure 38:  PKM Connections to an Attendant ConsoleOnly use the modular cables that are supplied with the
DSS/BLF Interface Unit and the PKM 48 device.

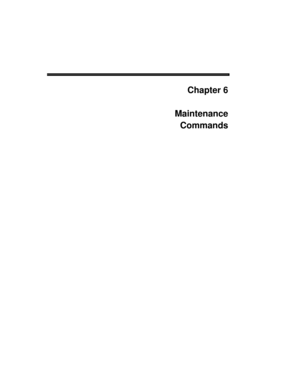

Chapter 6
Maintenance
Commands
