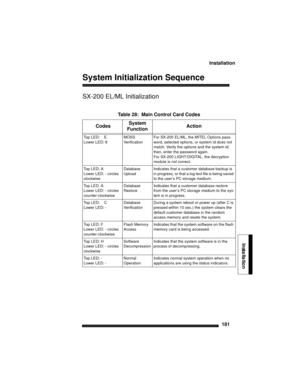

System Initialization Sequence
SX-200 EL/ML Initialization
Table 28:  Main Control Card Codes
 CodesSystem
FunctionAction
To p  L E D :     E .
Lower LED: 8MOSS
VerificationFor SX-200 EL/ML, the MITEL Options pass-
word, selected options, or system id does not
match. Verify the options and the system id;
then, enter the password again.
For SX-200 LIGHT/DIGITAL, the decryption
module is not correct.
To p  L E D :  A
Lower LED: - circles
clockwise Database...

Technician’s Handbook
182

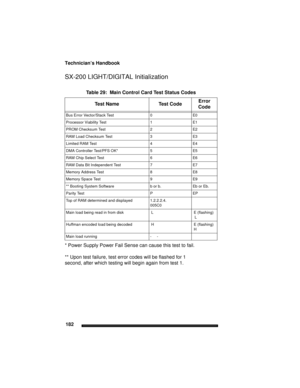

SX-200 LIGHT/DIGITAL Initialization
* Power Supply Power Fail Sense can cause this test to fail.
** Upon test failure, test error codes will be flashed for 1
second, after which testing will begin again from test 1.Table 29:  Main Control Card Test Status Codes
Test NameTest CodeError
Code
Bus Error Vector/Stack Test 0 E0
Processor Viability Test 1 E1
PROM Checksum Test 2 E2
RAM Load Checksum Test 3 E3
Limited RAM Test 4 E4
DMA Controller Test/PFS OK* 5 E5
RAM Chip Select...

Installation
183
Installation

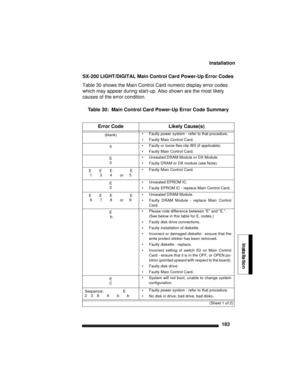

SX-200 LIGHT/DIGITAL Main Control Card Power-Up Error Codes
Table 30 shows the Main Control Card numeric display error codes
which may appear during start-up. Also shown are the most likely
causes of the error condition.

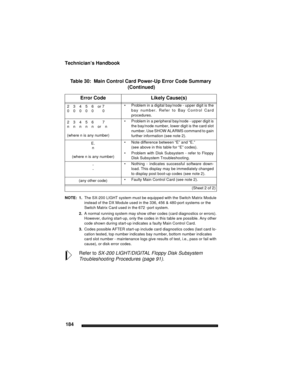

Table 30:  Main Control Card Power-Up Error Code Summary
Error Code Likely Cause(s)
(blank)• Faulty power system - refer to that procedure.
• Faulty Main Control Card.
0• Faulty or loose flea clip W3 (if applicable)
• Faulty Main Control Card.
E
0•...

Technician’s Handbook
184
NOTE: 1.The SX-200 LIGHT system must be equipped with the Switch Matrix Module
instead of the DX Module used in the 336, 456 & 480-port systems or the
Switch Matrix Card used in the 672 -port system.
2.A normal running system may show other codes (card diagnostics or errors).
However, during start-up, only the codes in this table are possible. Any other
code shown during start-up indicates a faulty Main Control Card.
3.Codes possible AFTER start-up include card diagnostics...

Installation
185
Installation

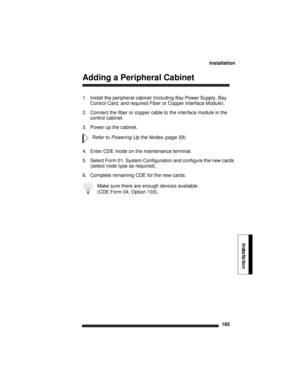

Adding a Peripheral Cabinet
1. Install the peripheral cabinet (including Bay Power Supply, Bay
Control Card, and required Fiber or Copper Interface Module).
2. Connect the fiber or copper cable to the interface module in the
control cabinet.
3. Power up the cabinet.
4. Enter CDE mode on the maintenance terminal.
5. Select Form 01, System Configuration and configure the new cards
(select node type as required).
6. Complete remaining CDE for the new cards.Refer to Powering...

Technician’s Handbook
186
Peripheral Interface Cards and Modules

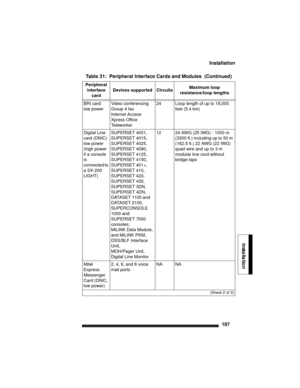

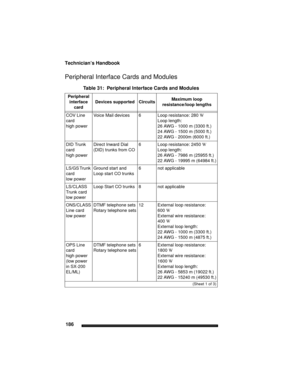

Table 31:  Peripheral Interface Cards and Modules
Peripheral
interface
card
Devices supportedCircuitsMaximum loop
resistance/loop lengths
COV Line
card
high powerVoice Mail devices6Loop resistance: 280 W
Loop length:
26 AWG - 1000 m (3300 ft.)
24 AWG - 1500 m (5000 ft.)
22 AWG - 2000m (6000 ft.)
DID Trunk
card
high powerDirect Inward Dial
(DID) trunks from CO6Loop resistance: 2450 W
Loop length:
26 AWG - 7986 m (25955 ft.)
22 AWG -...

Installation
187
Installation
BRI card
low powerVideo conferencing
Group 4 fax
Internet Access
Xpress Office
Te l e w o r k e r24Loop length of up to 18,000
feet (5.4 km)
Digital Line
card (DNIC)
low power
(high power
if a console
is
connected to
a SX-200
LIGHT) SUPERSET 4001,
SUPERSET 4015,
SUPERSET 4025,
SUPERSET 4090,
SUPERSET 4125,
SUPERSET 4150,
SUPERSET 401+,
SUPERSET 410,
SUPERSET 420,
SUPERSET 430,
SUPERSET 3DN,
SUPERSET 4DN,
DATASET 1100 and
DATASET 2100,
SUPERCONSOLE
1000 and...

Technician’s Handbook
188

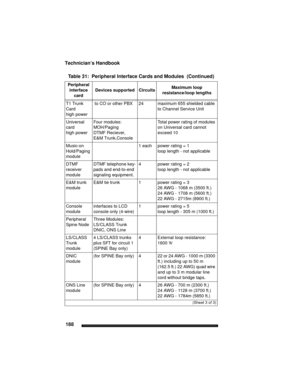

T1 Trunk
Card
high power to CO or other PBX24maximum 655 shielded cable
to Channel Service Unit
Universal
card
high powerFour modules:
MOH/Paging
DTMF Reciever,
E&M Trunk,Console Total power rating of modules
on Universal card cannot
exceed 10
Music-on
Hold/Paging
module1 eachpower rating = 1
loop length - not applicable
DTMF
receiver
moduleDTMF telephone key-
pads and end-to-end
signaling equipment.4power rating = 2
loop length - not applicable
E&M trunk
moduleE&M...

Installation
189
Installation

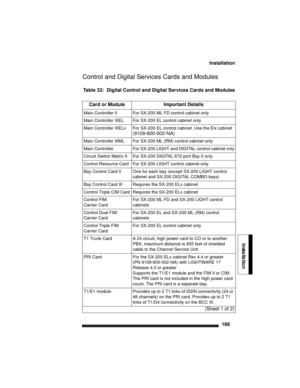

Control and Digital Services Cards and Modules
Table 32:  Digital Control and Digital Services Cards and Modules
Card or ModuleImportant Details
Main Controller IIFor SX-200 ML FD control cabinet only
Main Controller IIIEL For SX-200 EL control cabinet only
Main Controller IIIELxFor SX-200 EL control cabinet. Use the Elx cabinet
(
9109-600-002-NA)
Main Controller IIIMLFor SX-200 ML (RM) control cabinet only
Main ControllerFor SX-200 LIGHT and DIGITAL control cabinet only...

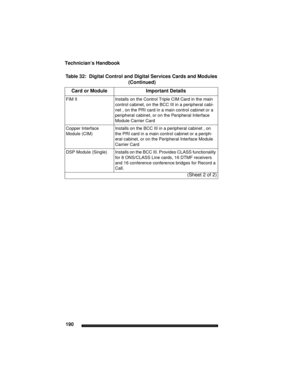

Technician’s Handbook
190
FIM II Installs on the Control Triple CIM Card in the main
control cabinet, on the BCC III in a peripheral cabi-
net , on the PRI card in a main control cabinet or a
peripheral cabinet, or on the Peripheral Interface
Module Carrier Card
Copper Interface
Module (CIM)Installs on the BCC III in a peripheral cabinet , on
the PRI card in a main control cabinet or a periph-
eral cabinet, or on the Peripheral Interface Module
Carrier Card
DSP Module (Single)Installs on the BCC...
