NDA-24298 CHAPTER 4
Page 147
Issue 1
ASYD : Assignment of System Data
SYSTEM
DATA
TYPE
(SYS)SYSTEM
DATA
INDEX
(INDEX)
0 - 511DATA
(DATA)
00 - FF
 (Hex)BIT
CORRESPONDING
DATA
SYSTEM DATA CONTENTS
DATA
0/1BIT
1250
b0 ~ b7
SMDR output buffer usage rate (00~98%) at the time of output of
SMDR Buffer Overflow Alarm Clear message (System Message
6-P)
Note:When this data has been set as specified below, the
alarm message output value becomes 80% and the
alarm message clear message output value becomes
50%...

CHAPTER 4 NDA-24298
Page 148
Issue 1
ASYD : Assignment of System Data
1257
b0DLKC Circuit Card for Attendant Console (ATTCON)
0/1 = Not Exist in system/Exist in systemNote 1, Note 2
0
b1
Not used 0
b2
0b3
0b4
0b5
0b6
0b7
258 00 Not used
260 00 Not used
261
b0
Not used 0
b1
0b2
0b3
0b4
0b5
0b6
0b7
262 00 Not used
287 00 Not used
Note 1:Fixed to data “0” for 1-IMG system, whether the ATTCON is used or not .
Note 2:This data won’t be valid unless it has been assigned before the system initialization....

NDA-24298 CHAPTER 4
Page 149
Issue 1
ASYD : Assignment of System Data
1288
b0Output Port for SMDR A Apparatus
When b
4 = 0 (IOC equipment No. 0)
b
0 = Port 0 b1 = Port 1  b2 = Port 2b3 = Port 3
When b
4 = 1 (IOC equipment No. 1)
b
0 = Port 4 b1 = Port 5 b2 = Port 6 b3 = Port 7
“1” is to be assigned to each bit corresponding to the Port No.
Note 1, Note 2, Note 3
b1
b2
b3
b4
0b5Expanded SMDR for “A” apparatus.
0
b6Not used
0b7
289
b0Fault detection timer of SMDR A
Value for the first digit (min):...

CHAPTER 4 NDA-24298
Page 150
Issue 1
ASYD : Assignment of System Data
1291
b0Fault detection timer of SMDR B
Value for the first digit (min):
(0~9) Hex
A~F Hex: Not usedTimer value ranges
from 1 to 99 min-
utes.
00 Hex: Without
fault detection
Normally, Assign 00
Hex.
b1
b2
b3
b4Fault Detection timer of SMDR B
Value for the second digit (min):
(0~9) Hex
A~F Hex: Not used
b5
b6
b7
292
b0Output Port for SMDR C Apparatus
When b
4 = 0 (IOC equipment No. 0)
b
0 = Port 0 b1 = Port 1 b2 = Port 2 b3 =...

NDA-24298 CHAPTER 4
Page 151
Issue 1
ASYD : Assignment of System Data
1294
b0Output Port for SMDR D Apparatus
When b
4 = 0 (IOC equipment No. 0)
b
0 = Port 0 b1 = Port 1 b2 = Port 2  b3 = Port 3
When b
4 = 1 (IOC equipment No. 1)
b
0 = Port 4 b1 = Port 5 b2 = Port 6 b3 = Port 7
“1” is to be assigned to each bit corresponding to the Port No.
Note 1:Among the SMDR equipment that has the same IOC
equipment number, double assignment of port is
rejected.
Note 2:The ports to be designated by SYS-1, INDEX...

CHAPTER 4 NDA-24298
Page 152
Issue 1
ASYD : Assignment of System Data
1304
b0
Individual Speed Calling Data Save
0/1 = Out/In Service
(This data is valid when SYS1, INDEX 90, b
1 = 1)
b1
Call Forwarding Data Save
0/1 = Out/In Service
(This data is valid when SYS1, INDEX 90, b
1 = 1)
b2PCS Data Save
0/1 = Out/In Service
b3
Name Display Data Save
0/1 = Out/In Service
(This data is valid when SYS1, INDEX 90, b
1 = 1)
b4
User Assign Soft Key Data Save
0/1 = Out/In Service
(This data is valid when SYS1,...

NDA-24298 CHAPTER 4
Page 153
Issue 1
ASYD : Assignment of System Data
1322
b0Timing start to dial Attendant
Console Assign digit used
Note:When SYS-1, INDEX 92,
b
0 = “0” (Individual SYS-2
Table Development), prepare
separate SYS-2 Programming
Sheets for each Tenant (TN).Note:Digits 0-9 are
used with Index
17,
b5b1
0b2
0b3
0b4Not used
b5
Tone to be sent when the handset has been lifted via the Station
on which CALL BLOCK service is set.
0/1 = DT/SPDT
Note:Valid since the release 5 software.
b6...

CHAPTER 4 NDA-24298
Page 154
Issue 1
ASYD : Assignment of System Data
13880
b0 - b3Not used
b4
The way to answer the Internal Zone Paging call;
0 = Press the Prime Line key after Off-Hook
1 = Off-Hook
Note:Valid for software Release 9 or later.
0
b5 - b7Not used
389
b0 - b4
Display Language on Dterm LCD     Note
0: English
1: Portuguese
2: Spanish
3: French (For Release 9 software)
4-31: Not used
Note:When assigning language, data “0” must be set in
INDEX78, b4.
0
b5 - b7Not used
390
b0Caller ID...

NDA-24298 CHAPTER 4
Page 155
Issue 1
ASYD : Assignment of System Data
1439
b0 - b6Not used
b7
Station Hunting by call kind
0/1 = Invalid/Valid
Note:Available for software Release 9 or later.
440-485 00 Not used
486
b0 ~ b2
Maximum number of transfer for Multiple Call Forwarding -
CCIS occurrences
b2b1b0b2b1b0
0 00=This service is invalid100=four times
0 01=once101=five times
0 10=twice110=six times
0 11=three times111=seven times
Note:Valid when the node is “Call Forwarding-CCIS” start
node. The number...

CHAPTER 4 NDA-24298
Page 156
Issue 1
ASYD : Assignment of System Data

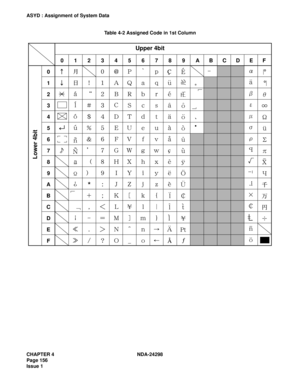

Table 4-2 Assigned Code in 1st Column
0      1      2      3      4      5      6      7      8      9
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
FA      B      C      D      E      F
*
Upper 4bit
Lower 4bit
