ASYDL : Assignment of System Data into Local DM (LDM)
1805
b0
(For IPX-UMG system)
Periodic Refresh for office data copyNote 1
0/1 = Execute/Stop
b1
(For IPX-UMG system)
Partial copy every time office data is assigned
0 = ExecuteNote 1
1 = Not execute (data copy is executed by CBCD
 command
b2
(For IPX-UMG system)
Information of office data copy conditionNote 1
0/1 = -/Output System Message
0
b3 ~ b7Not used
806-831 Not used
832Fusion Point Code (FPC) of the node...

CHAPTER 4 NDA-24298
Page 188
Issue 1
ASYDL : Assignment of System Data into Local DM (LDM)
1834
b00/1 = -/MC0 with LAN interface is used
b10/1 = -/MC1 with LAN interface is used
b3 ~ b7Not used
835 ~ 863 Not used
864
b00/1 = Built-in IP, ACDP is not used/used
b1
Output the system message when TCP-IP connection
is disconnected.
0/1 = Effective/Ineffective
b2
AGENT ANYWHERE
0/1=Out of Service/In Service
Note:This data is effective only when Multiple
ACDP Service is used.
b3Multiple ACDP
0/1 = Out of...

NDA-24298 CHAPTER 4
Page 189
Issue 1
ASYDL : Assignment of System Data into Local DM (LDM)
1867 ~ 927 Not used
928(For IPX-U system)
Fusion Point Code (FPC) of the connecting ISW.
(For IPX-UMG system)
Fixed to “0”.
Note
929
b0 ~ b3
TSW card accommodation on ISW in IPX-U system
or on ISWR in IPX-UMG system.
0/1 = Not accommodated/Accommodated
b0: TSW0
b2: TSW2
b1: TSW1b3: TSW3
Note
b4 ~ b7Not used
930 ~ 933FPC of the LN connected to TSW0 in the ISW.
(For IPX-UMG system)
Logical PBI Number of LMG...

CHAPTER 4 NDA-24298
Page 190
Issue 1
ASYDL : Assignment of System Data into Local DM (LDM)
1938 ~ 941FPC of the LN connected to TSW2 in the ISW.
(For IPX-UMG system)
Logical PBI Number of LMG connected to TSW2 in
the ISWR.
Note 1:This data is available when SYS1,
INDEX929, b2=1 is assigned.
Note 2:The different FPC can be assigned for
2 Kbps PCM data transmission at each
INDEX.
942 ~ 945FPC of the LN connected to TSW3 in the ISW.
(For IPX-UMG system)
Logical PBI Number of LMG connected to TSW3 in
the...

NDA-24298 CHAPTER 4
Page 191
Issue 1
AUNT : Assignment of Unit Data
AUNT:  Assignment of Unit Data
1. General
This command assigns the Unit data.  It also assigns miscellaneous circuit cards to be mounted in LPM.
2. Precautions
Prior to assigning the number of the unit data using this command, the ASYD command should be properly
assigned.
The applicable data range in the Module Group Number (MG) parameter is designated by the ASYD
command, SYS1, INDEX 0.
Since the PFT is a mechanical action circuit,...

CHAPTER 4 NDA-24298
Page 192
Issue 1
AUNT : Assignment of Unit Data

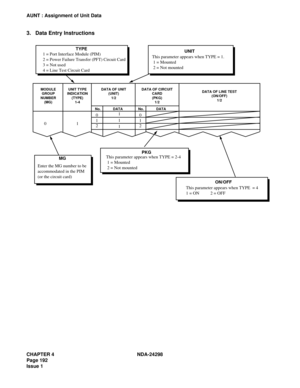

3. Data Entry Instructions
1 = Port Interface Module (PIM)
2 = Power Failure Transfer (PFT) Circuit Card
3 = Not used
4 = Line Test Circuit CardTYPE
UNIT TYPE
INDICATION
(TYPE)
1-4 MODULE
GROUP
NUMBER
(MG)DATA OF UNIT
(UNIT)
1/2DATA OF CIRCUIT
CARD
(PKG)
1/2DATA OF LINE TEST
(ON/OFF)
1/2
This parameter appears when TYPE = 1.
 1 = Mounted
 2 = Not mountedUNIT
This parameter appears when TYPE = 2-4
 1 = Mounted
 2 = Not mounted 0
1
2 011...

NDA-24298 CHAPTER 4
Page 193
Issue 1
AUNT : Assignment of Unit Data
4. Data Sheet
(a) Port Interface Module (PIM) (TYPE = 1)
(b) Power Failure Transfer Circuit Card (PFT) (TYPE = 2)
(c) Line Test Circuit Card (TYPE = 4)
MODULE GROUP
NUMBER
(MG)UNIT TYPE INDICATION
(TYPE) 1 – 4DATA OF UNIT
1/2
NO. DATA
10
1
2
3
MODULE GROUP
NUMBER
(MG)UNIT TYPE INDICATION
(TYPE) 1 – 4DATA OF CIRCUIT CARD (PKG)
1/2
NO. DATA
0
21
2
3
MODULE GROUP
NUMBER
(MG)UNIT TYPE INDICATION
(TYPE) 1 – 4REMARKS
Mounted/Not Mounted 4

CHAPTER 4 NDA-24298
Page 194
Issue 1
AIOC : Assignment of IOC Port Data
AIOC:  Assignment of IOC Port Data
1. General
This command assigns the I/O port attribution data.
2. Precautions
1. When the I/O port attribution is changed, the IOC card is initialized.
2. Various parameters appear on the display according to the data in the TERMINAL parameter.

NDA-24298 CHAPTER 4
Page 195
Issue 1
AIOC : Assignment of IOC Port Data

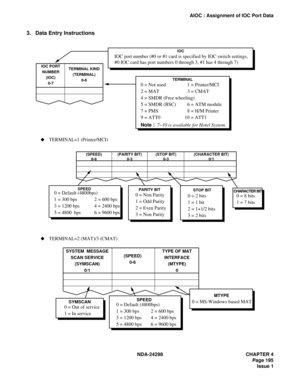

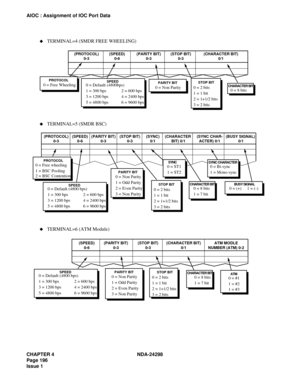

3. Data Entry Instructions
IOC port number (#0 or #1 card is specified by IOC switch settings,
#0 IOC card has port numbers 0 through 3, #1 has 4 through 7)
IOC PORT
NUMBER
(IOC)
0-7TERMINAL KIND
(TERMINAL)
0-6IOC
TERMINAL
(SPEED)
0-6(PARITY BIT)
0-3(STOP BIT)
0-3(CHARACTER BIT)
0/1
SPEED
PARITY BIT
STOP BIT
CHARACTER BIT
SYSTEM  MESSAGE
SCAN SERVICE
(SYMSCAN)
0/1TYPE OF MAT
INTERFACE
(MTYPE)
0 (SPEED)
0-6
SYMSCANSPEEDMTYPE
0 = Not...

CHAPTER 4 NDA-24298
Page 196
Issue 1
AIOC : Assignment of IOC Port Data
PROTOCOL0 = Free WheelingPARITY BIT0 = Non Parity
SPEED0 = Default (4800bps)
1 = 300 bps
3 = 1200 bps
5 = 4800 bps2 = 600 bps
4 = 2400 bps
6 = 9600 bpsSTOP BIT
0 = 2 bits
1 = 1 bit
2 = 1+1/2 bits
3 = 2 bitsCHARACTER BIT0 = 8 bits
CHARACTER BIT0 = 8 bits
1 = 7 bitBUSY SIGNAL0 = (+)1 = (-)
SYNC CHARACTER 0 = Bi-sync
1 = Mono-syncSYNC0 = ST1
1 = ST2
CHARACTER BIT0 = 8 bits
1 = 7 bitATM0 = #1
1 = #2
1 = #3
(SPEED)
0-6
(SPEED)
0-6...
