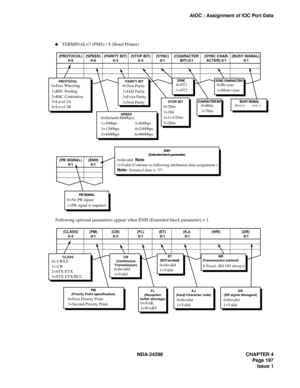

NDA-24298 CHAPTER 4
Page 197
Issue 1
AIOC : Assignment of IOC Port Data
CHARACTER BIT0=8bits
1=7bitsBUSY SIGNAL0=(+)1=(-)
SYNC CHARACTER 0=Bi-sync
1=Mono-sync
PB SIGNAL
0=No PB signal
1=PB signal is required
ENH
(Extended block parameter)
0=Invalid  Note
1=Valid (Continue to following attribution data assignment.)
Note: Standard data is 0.
SYNC0=ST1
1=ST2
(SPEED)
0-6 (PROTOCOL)
0-2(PARITY BIT)
0-3(STOP BIT)
0-3(SYNC)
0/1(CHARACTER
BIT) 0/1(SYNC CHAR-
ACTER) 0/1(BUSY SIGNAL)
 0/1
SPEED0=Default(4800bps)...

CHAPTER 4 NDA-24298
Page 198
Issue 1
AIOC : Assignment of IOC Port Data
Example: Standard data for PMS and Hotel printer.
PMS (Level 2A): PROTOCOL = 3 (Level 2A)
SPEED = 3 (1200bps)
PARITY BIT = 2 (Even Parity)
STOP BIT = 0 (2bits)
SYNC = 0 (Not used)
CHARACTER BIT = 0 (8bits)
SYNC CHARACTER = 0 (Not used)
BUSY SIGNAL = 0 (Not used)
PB SIGNAL = 0 (No PB signal)
ENH = 0 (Invalid)
Hotel Printer: PROTOCOL = 0 (Free Wheeling)
SPEED = 3 (1200bps)
PARITY BIT = 0 (No Parity)
STOP BIT = 0 (2bits)
CHARACTER BIT...

NDA-24298 CHAPTER 4
Page 199
Issue 1
AIOC : Assignment of IOC Port Data
4. Data Sheet
(a) TERMINAL=1 (Printer/MCI)
(b) TERMINAL=2 (MAT)
(c) TERMINAL=3 (CMAT)
IOC PORT
NUMBER
(IOC)TERMINAL KIND
(TERMINAL)
1
(SPEED) (PARITY BIT) (STOP BIT) (CHARACTER BIT) REMARKS
IOC PORT
NUMBER
(IOC)TERMINAL KIND
(TERMINAL)
2
(SYMSCAN) (SPEED) (MTYPE) REMARKS
IOC PORT
NUMBER
(IOC)TERMINAL KIND
(TERMINAL)
3
(SYMSCAN) (SPEED) (MTYPE) REMARKS

CHAPTER 4 NDA-24298
Page 200
Issue 1
AIOC : Assignment of IOC Port Data
(d) TERMINAL=4 (SMDR FREE WHEELING)
(e) TERMINAL=5 (SMDR BSC)
(f) TERMINAL=6 (ATM Module)
IOC PORT
NUMBER
(IOC)TERMINAL KIND
(TERMINAL)
4
(PROTOCOL) (SPEED) (PARITY BIT) (STOP BIT) (CHARACTER BIT)
00 0
IOC PORT
NUMBER
(IOC)TERMINAL
KIND
(TERMINAL)
5
(PROTOCOL) (SPEED)(PARITY
BIT)(STOP
BIT)(SYNC) (CHARACTER BIT)(SYNC
CHARACTER)(BUSY
SIGNAL)
IOC PORT
NUMBER
(IOC)TERMINAL KIND
(TERMINAL)
6
(SPEED) (PARITY BIT) (STOP BIT)...

NDA-24298 CHAPTER 4
Page 201
Issue 1
AIOC : Assignment of IOC Port Data
(g) TERMINAL=7 (PMS)
When ENH=1 (Option),
IOC
PORT NUMBER
(IOC)TERMINAL
KIND
(TERMINAL)
7
(PROTOCOL) (SPEED) (PARITY BIT) (STOP BIT) (SYNC) (CHARACTER BIT)(SYNC
CHARACTER)(BUSY
SIGNAL)
(PB SIGNAL)
0/1(ENH)
0/1
(CLASS)
0-3(PM)
0/1(CN)
0-3(FL)
0/1(ET)
0/1(KJ)
0/1(WR) (DR)
0/1
(CD)
0/1(XO)
0/1(SN)
0/1(SA)
20-7E Hex.(TUA)
20-7E Hex.(RUA)
20-7E Hex.

CHAPTER 4 NDA-24298
Page 202
Issue 1
AIOC : Assignment of IOC Port Data
(h) TERMINAL=8 (Hotel Printer)
IOC
PORT NUMBER
(IOC)TERMINAL
KIND
(TERMINAL)
10
(PROTOCOL) (SPEED) (PARITY BIT) (STOP BIT) (SYNC) (CHARACTER BIT)(SYNC
CHARACTER)(BUSY
SIGNAL)
(PB SIGNAL)
0/1(ENH)
0/1

NDA-24298 CHAPTER 4
Page 203
Issue 1
ASTD : Assignment of State Translation Data
ASTD:  Assignment of State Translation Data
1. General
This command translates the system attributes.
2. Precautions
One STM contains multiple numbers of STS(s), and the combination of the STM”n” and STS”n” has one kind
of (or multiple kinds of) purpose(s) to be designated. The data zero (0) or one (1) assigned in ST designates how
the system works. See Table 4-3 for Assignment of ASTD.
3. Data Assignment Instructions
See...

CHAPTER 4 NDA-24298
Page 204
Issue 1
ASTD : Assignment of State Translation Data
10 Trunk Release0 Station (Calling Party Release)
1 Trunk  Note 1
1
2
3
4
* = standard settings
Note 2:One setting applies to five items. (STM=0, STS 0)
20 Three-way calling with COT included0 Restricted
1* Allowed
1Three-way calling with COT included in Execu-
tive Right of Way service0 Restricted
1* Allowed
2Outgoing call to a C.O. Line or a Tie Line after
holding the COT0 Restricted
1* Allowed
3Outgoing call to a C.O....

NDA-24298 CHAPTER 4
Page 205
Issue 1
ASTD : Assignment of State Translation Data
4. Data Assignment Sheet
STATE TRANSLATION
MAIN CATEGORY NUMBER
(STM)
0 - 31STATE TRANSLATION
CATEGORY NUMBER
(STS)
0 - 31STATE TRANSLATION
INFORMATION
(ST)
0/1REMARKS

CHAPTER 4 NDA-24298
Page 206
Issue 1
AOFC : Assignment of Office Name
AOFC:  Assignment of Office Name
1. General
This command assigns the office name.
2. Precautions
1. The data assignment of this command is the same as the ASYD command SYS1, INDEX96 through 115.
2. The office name is also included in the dump files of LIST UP, Traffic Measurement, and System
Message.
3. Data Entry Instructions

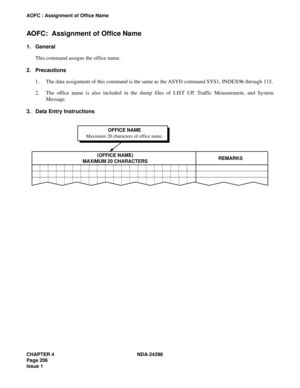

Maximum 20 characters of office name.OFFICE NAME
MAXIMUM 20 CHARACTERS(OFFICE NAME)
REMARKS
