NEC Neax 2400 Ipx Office Data Specification

NDA-24298 CHAPTER 4
Page 657
Issue 1
ARTIN : Assignment of Trunk Application Data for NDM
35 L/T Local/Toll (Russia only)
When assigning this data, always enter zero (0).0000
36 ECCISEvent Based CCIS (E-CCIS)
0 = Invalid
1 = Valid
37 ECCISTMRelease timer for E-CCIS Line
0: 3 minutes (Default)
1: 15 seconds
2: 30 seconds
3: 1 minute
4: 2 minutes
5: 5 minutes
6: 10 minutes
7: 15 minutes
8: 30 minutes
9: 1 hour
10-13: Not used
14: Immediately after call completion (for
Speech Channel)/1 minute (for Sin-...

CHAPTER 4 NDA-24298
Page 658
Issue 1
ARTIN : Assignment of Trunk Application Data for NDM
47 INTD
Interface Detail
0 = Q-SIG
1 = IS-11572
48 JECCIS
Common Use with E-CCIS RT
0 = Out of Service
1 = In Service
49 ECCIS2
E-CCIS System
0 = Out of Service
1 = Common Channel System
2 = Not used
3 = Not used
50 IPINT (Japan only)
Public PCS Protocol
0-5 = Not used
6 = IP Protocol (2B+D)
7 = Public PCS Protocol (2B+D)
8-15 = Not used
51 IPTK
IP Trunk
0 =  Out  of  Service1 = In Service
52 CTCF
Call...

NDA-24298 CHAPTER 4
Page 659
Issue 1
ASHP : Assignment of Station Hunting Group-Pilot
ASHP: Assignment of Station Hunting Group-Pilot
1. General
This command assigns the data related to the Station Hunting - Pilot service feature.
2. Precautions
1. This command is also used to modify and delete the Station Hunting - Pilot service feature related data.
2. The maximum number of member stations within a Hunting Group is 100.
3. The applicable Tenant Number (TN) range is designated by the ASYD command,...

CHAPTER 4 NDA-24298
Page 660
Issue 1

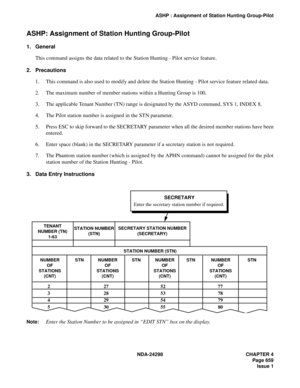

ASHP : Assignment of Station Hunting Group-Pilot
4. Data Sheet
TENANT NUMBER
(TN)PILOT STATION
NUMBER
(STN)SECRETARY STATION NUMBER
(SECRETARY)
STATION NUMBER (STN)
NUMBER
OF
STATIONS
(CNT)STNNUMBER
OF
STATIONS
(CNT)STNNUMBER
OF
STATIONS
(CNT)STNNUMBER
OF
STATIONS
(CNT)STN
2 275277
3 285378
4 295479
5 305580
6 315681
7325782
8335883
9345984
10 35 60 85
11 36 61 86
12 37 62 87
13 38 63 88
14 39 64 89
15 40 65 90
16 41 66 91
17 42 67 92
18 43 68 93
19 44 69 94
20 45...

NDA-24298 CHAPTER 4
Page 661
Issue 1
ASHPL : Assignment of Station Hunting Group-Pilot for LDM
ASHPL: Assignment of Station Hunting Group-Pilot for LDM
1. General
This command assigns the data related to the Station Hunting - Pilot. With this command, Station Hunting
Group - Pilot can be assigned by using Telephone Number.
2. Precautions
1. This command is also used to modify and delete the Station Hunting - Pilot service feature related data.
2. The maximum number of member stations within a Hunting...

CHAPTER 4 NDA-24298
Page 662
Issue 1

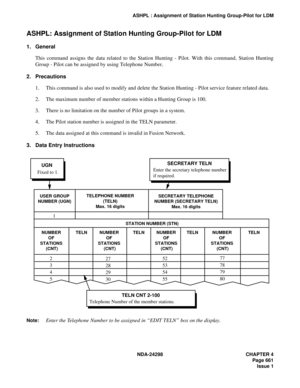

ASHPL : Assignment of Station Hunting Group-Pilot for LDM
4. Data Sheet
USER GROUP NUMBER
(UGN)TELEPHONE NUMBER
(TELN)SECRETARY TELEPHONE NUMBER
(SECRETARY TELN)
NUMBER
OF
STATIONS
(CNT)TELEPHONE
NUMBER
(TELN)NUMBER
OF
STATIONS
(CNT)TELEPHONE
NUMBER
(TELN)NUMBER
OF
STATIONS
(CNT)TELEPHONE
NUMBER
(TELN)NUMBER
OF
STATIONS
(CNT)TELEPHONE
NUMBER
(TELN)
2 275277
3 285378
4 295479
5 305580
6 315681
7 325782
8 335883
9 345984
10 35 60 85
11 36 61 86
12 37...

NDA-24298 CHAPTER 4
Page 663
Issue 1
ASHPN : Assignment of Station Hunting Group-Pilot for NDM
ASHPN: Assignment of Station Hunting Group-Pilot for NDM
1. General
This command assigns the data related to the Station Hunting - Pilot for Fusion Service. The data assigned by
this command is written in Network Data Memory (NDM) of the Network Control Node (NCN), updating NDM
at each Local Node (LN).
2. Precautions
1. This command is also used to modify and delete the Station Hunting - Pilot service feature...

CHAPTER 4 NDA-24298
Page 664
Issue 1

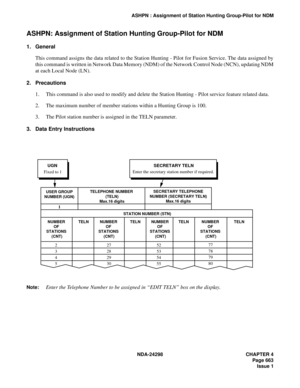

ASHPN : Assignment of Station Hunting Group-Pilot for NDM
4. Data Sheet
USER GROUP NUMBER
(UGN)TELEPHONE NUMBER
(TELN)
NUMBER
OF
STATIONS
(CNT)TELEPHONE
NUMBER
(TELN)NUMBER
OF
STATIONS
(CNT)TELEPHONE
NUMBER
(TELN)NUMBER
OF
STATIONS
(CNT)TELEPHONE
NUMBER
(TELN)NUMBER
OF
STATIONS
(CNT)TELEPHONE
NUMBER
(TELN)
2 275277
3 285378
4 295479
5 305580
6 315681
7 325782
8 335883
9 345984
10 35 60 85
11 36 61 86
12 37 62 87
13 38 63 88
14 39 64 89
15 40 65 90
16...

NDA-24298 CHAPTER 4
Page 665
Issue 1
ASHC : Assignment of Station Hunting Group - Circular
ASHC: Assignment of Station Hunting Group - Circular
1. General
This command assigns the data related to the Station Hunting - Circular service feature.
2. Precautions
1. This command is also used to modify and delete the Station Hunting - Circular service feature related
data.
2. The maximum number of member stations within a Hunting Group is 100.
3. When assigning the Circular Hunting member station data, the...

CHAPTER 4 NDA-24298
Page 666
Issue 1

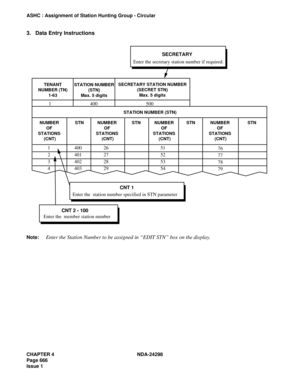

ASHC : Assignment of Station Hunting Group - Circular
3. Data Entry Instructions
Note:Enter the Station Number to be assigned in “EDIT STN” box on the display.
NUMBER
OF
STATIONS
(CNT)NUMBER
OF
STATIONS
(CNT) TENANT
NUMBER (TN)
1-63SECRETARY STATION NUMBER
(SECRET STN)
Max. 5 digits STATION NUMBER
(STN)
Max. 5 digits
STN NUMBER
OF
STATIONS
(CNT) STN NUMBER
OF
STATIONS
(CNT) STN STN  STATION NUMBER (STN)
SECRETARY
Enter the secretary station number if...
