NDA-24298 CHAPTER 4
Page 687
Issue 1
AUCDN : Assignment of UCD Control Data for NDM
AUCDN: Assignment of UCD Control Data for NDM
1. General
This command assigns the miscellaneous data related to the Uniform Call Distribution (UCD) for Fusion
Service. The data assigned on this command is written in the Network Data Memory (NDM) of the Network
Control Node (NCN), updating the NDM at each Local Node (LN).
2. Precautions
1. The UCD member station and UCD pilot (controlling station) station should be...

CHAPTER 4 NDA-24298
Page 688
Issue 1
AUCDN : Assignment of UCD Control Data for NDM

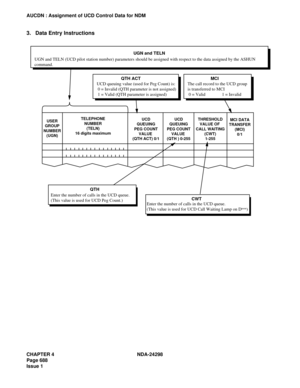

3. Data Entry Instructions
Enter the number of calls in the UCD queue.
(This value is used for UCD Peg Count.)QTH
Enter the number of calls in the UCD queue.
(This value is used for UCD Call Waiting Lamp on Dterm) CWT
UCD
QUEUING
PEG COUNT
VALUE
(QTH ACT) 0/1UCD
QUEUING
PEG COUNT
VALUE
(QTH ) 0-255THRESHOLD
VALUE OF
CALL WAITING
(CWT)
1-255MCI DATA
TRANSFER
(MCI)
0/1 USER
GROUP
NUMBER
(UGN)
UGN and TELN
QTH...

NDA-24298 CHAPTER 4
Page 689
Issue 1
AUCDN : Assignment of UCD Control Data for NDM
4. Data Sheet
USER
GROUP
NUMBER
(UGN)TELEPHONE NUMBER
(TELN)
16 digits maximumUCD QUEUING
PEG COUNT
VA L U E
(QTH ACT)
0/1UCD QUEUING
PEG COUNT
VA L U E
(QTH)
 0-255THRESHOLD
VALUE OF CALL
WAITING
(CWT)
1-255MCI DATA
TRANSFER
(MCI)
0/1

CHAPTER 4 NDA-24298
Page 690
Issue 1
AUOG : Assignment of UCD Overflow Group
AUOG: Assignment of UCD Overflow Group
1. General
This command assigns the data related to the Overflow - UCD service feature.
2. Precautions
1. The UCD member station and the UCD pilot (controlling station) station should be assigned by the ASHU
command.
2. The calls terminate to the designated group can overflow (forward) to another UCD group. They overflow
from TN-A, STN-A to TN-B, STN-B.
3. The applicable Tenant Number (TN)...

NDA-24298 CHAPTER 4
Page 691
Issue 1
AUOG : Assignment of UCD Overflow Group

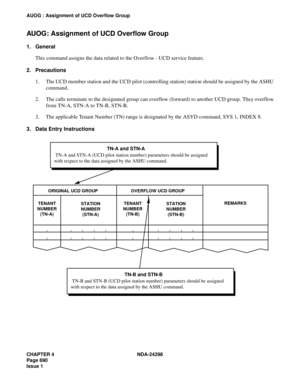

4. Data Sheet
ORIGINAL UCD GROUP OVERFLOW UCD GROUP
REMARKS TENANT
NUMBER
(TN-A)STATION
NUMBER
(STN-A)TENANT
NUMBER
(TN-B)STATION
NUMBER
(STN-B)

CHAPTER 4 NDA-24298
Page 692
Issue 1
AUOGL : Assignment of UCD Overflow Group for LDM
AUOGL: Assignment of UCD Overflow Group for LDM
1. General
This command assigns the data related to the Overflow - UCD service feature for each Node by using Telephone
Number. The data is written in Local Data Memory (LDM).
2. Precautions
1. The UCD member station and the UCD pilot (controlling station) station should be assigned by the
ASHUL command.
2. The calls terminate to the designated group can overflow (forward)...

NDA-24298 CHAPTER 4
Page 693
Issue 1
AUOGL : Assignment of UCD Overflow Group for LDM

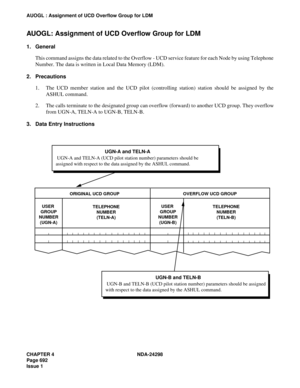

4. Data Sheet
ORIGINAL UCD GROUP OVERFLOW UCD GROUP
USER
GROUP
NUMBER
(UGN-A)TELEPHONE
NUMBER
(TELN-A)USER
GROUP
NUMBER
(UGN-B)TELEPHONE
NUMBER
(TELN-B)

CHAPTER 4 NDA-24298
Page 694
Issue 1
AUOGN : Assignment of UCD Overflow Group for NDM
AUOGN: Assignment of UCD Overflow Group for NDM
1. General
This command assigns the data related to the Overflow - UCD for Fusion Service. The data assigned by this
command is written in the Network Data Memory (NDM) of the Network Control Node (NCN), updating the
NDM at each Local Node (LN).
2. Precautions
1. The UCD member station and the UCD pilot (controlling station) station should be assigned by the
ASHUN...

NDA-24298 CHAPTER 4
Page 695
Issue 1
AUOGN : Assignment of UCD Overflow Group for NDM

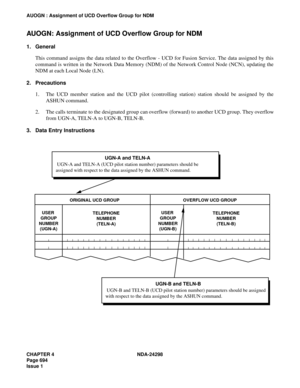

4. Data Sheet
ORIGINAL UCD GROUP OVERFLOW UCD GROUP
USER
GROUP
NUMBER
(UGN-A)TELEPHONE
NUMBER
(TELN-A)USER
GROUP
NUMBER
(UGN-B)TELEPHONE
NUMBER
(TELN-B)

CHAPTER 4 NDA-24298
Page 696
Issue 1
AUAD : Assignment of UCD Delayed Announcement Data
AUAD:  Assignment of UCD Delayed Announcement Data
1. General
This command assigns the data related to the Delay Announcement - UCD service feature.
2. Precautions
1. The UCD member station and UCD pilot (controlling station) station should be assigned by the ASHU
command.
2. A maximum of eight (8) external announcement machines can be assigned per UCD group.
3. As to the designation of sharing the UCD Announcement...
