NDA-24298 CHAPTER 4 Page 627 Issue 1 ADPC : Assignment of Determinate Point Code Data ADPC: Assignment of Determinate Point Code Data 1. General This command assigns the determinate Point Code (PC) for CCIS and/or the ISDN interface. Note:In this command, Determinate Point Code is synonymous with Destination Point Code; the terms are used interchangeably. 2. Precautions 1. A unique PC must be given to a node in the CCIS network. The Originating Point Code (OPC) is designated by the ASYD command, SYS1,...
Page 662

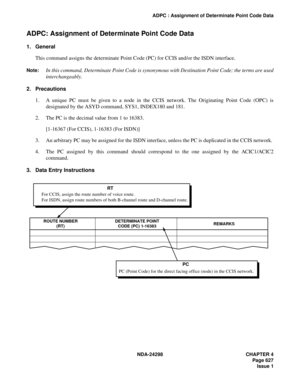

CHAPTER 4 NDA-24298 Page 628 Issue 1 ADPC : Assignment of Determinate Point Code Data 4. Data Sheet ROUTE NUMBER (RT)DETERMINATE POINT CODE (PC) 1 - 16383REMARKS
Page 663
NDA-24298 CHAPTER 4 Page 629 Issue 1 ADPCL : Assignment of Determinate Point Code Data for LDM ADPCL: Assignment of Determinate Point Code Data for LDM 1. General This command assigns the determinate Point Code (PC) for CCIS and/or the ISDN interface. This data is written in Local Data Memory (LDM). Note:In this command, Determinate Point Code is synonymous with Destination Point Code; the terms are used interchangeably. 2. Precautions 3. A unique PC must be given to a node in the CCIS network. The OPC...
Page 664

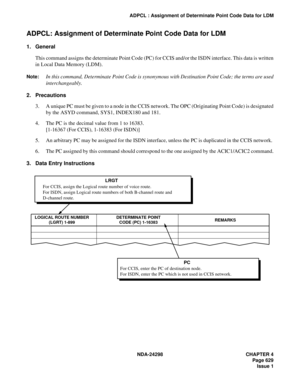

CHAPTER 4 NDA-24298 Page 630 Issue 1 ADPCL : Assignment of Determinate Point Code Data for LDM 4. Data Sheet LOGICAL ROUTE NUMBER (LGRT) 1-899DETERMINATE POINT CODE (PC) 1 - 16383REMARKS
Page 665
NDA-24298 CHAPTER 4 Page 631 Issue 1 ACSC : Assignment of CSC Data ACSC: Assignment of CSC Data 1. General This command assigns the Common Channel Handler (CCH)/D-Channel Handler (DCH) location of the Common Channel Signaling Controller Group (CSCG). 2. Precautions 1. The CSCG represents the Point Code (PC) and the Circuit Identification Code (CICs) that correspond to the B-channels (voice channels) of the CCIS interface as assigned by the ACIC2 command. On the other hand, the CSCG represents the PC of...
Page 666

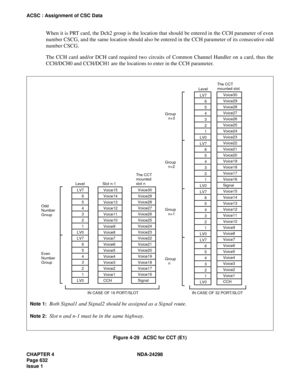

CHAPTER 4 NDA-24298 Page 632 Issue 1 ACSC : Assignment of CSC Data When it is PRT card, the Dch2 group is the location that should be entered in the CCH parameter of even number CSCG, and the same location should also be entered in the CCH parameter of its consecutive odd number CSCG. The CCH card and/or DCH card required two circuits of Common Channel Handler on a card, thus the CCH/DCH0 and CCH/DCH1 are the locations to enter in the CCH parameter. Figure 4-29 ACSC for CCT (E1) LV7 6 5 4 3 2 1 LV0...
Page 667

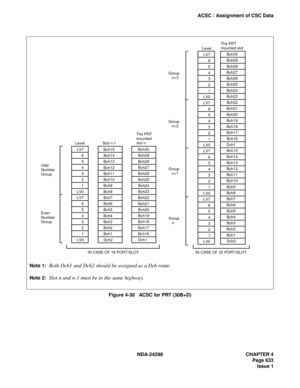

NDA-24298 CHAPTER 4 Page 633 Issue 1 ACSC : Assignment of CSC Data Figure 4-30 ACSC for PRT (30B+D) LV7 6 5 4 3 2 1 LV0 LV7 6 5 4 3 2 1 LV0LV7 6 5 4 3 2 1 LV0 LV7 6 5 4 3 2 1 LV0 LV7 6 5 4 3 2 1 LV0 LV7 6 5 4 3 2 1 LV0 LevelLevelBch15 Bch14 Bch13 Bch12 Bch11 Bch10 Bch9 Bch8 Bch7 Bch6 Bch5 Bch4 Bch3 Bch2 Bch1 Dch2 Slot n-1Bch30 Bch29 Bch28 Bch27 Bch26 Bch25 Bch24 Bch23 Bch22 Bch21 Bch20 Bch19 Bch18 Bch17 Bch16 Dch1 The PRT mounted slot n Bch30 Bch29 Bch28 Bch27 Bch26 Bch25 Bch24 Bch23 Bch22 Bch21 Bch20...
Page 668

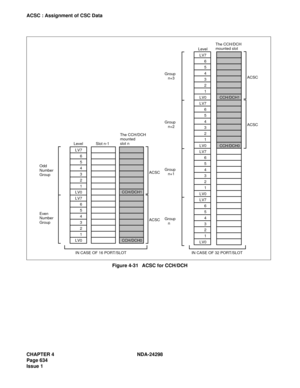

CHAPTER 4 NDA-24298 Page 634 Issue 1 ACSC : Assignment of CSC Data Figure 4-31 ACSC for CCH/DCH LV7 6 5 4 3 2 1 LV0 LV7 6 5 4 3 2 1 LV0LV7 6 5 4 3 2 1 LV0 LV7 6 5 4 3 2 1 LV0 LV7 6 5 4 3 2 1 LV0 LV7 6 5 4 3 2 1 LV0 Level ACSC ACSCLevel Slot n-1 CCH/DCH1CCH/DCH1 CCH/DCH0 CCH/DCH0 The CCH/DCH mounted slot n The CCH/DCH mounted slot ACSC ACSC Odd Number Group Even Number GroupGroup n Group n+2 Group n+1 Group n+3 IN CASE OF 16 PORT/SLOT IN CASE OF 32 PORT/SLOT
Page 669

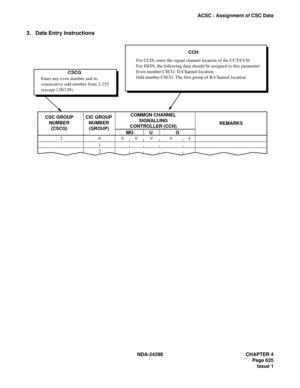

NDA-24298 CHAPTER 4 Page 635 Issue 1 ACSC : Assignment of CSC Data 3. Data Entry Instructions 2 0 0 0 0 0 4 1 2 · For CCIS, enter the signal channel location of the CCT/CCH · For ISDN, the following data should be assigned to this parameter. Even number CSCG: D-Channel location Odd number CSCG: The first group of B-Channel location CCH CSC GROUP NUMBER (CSCG)CIC GROUP NUMBER (GROUP)COMMON CHANNEL SIGNALLING CONTROLLER (CCH) MG U GREMARKS Enter any even number and its consecutive odd number from...
Page 670
CHAPTER 4 NDA-24298 Page 636 Issue 1 ACSC : Assignment of CSC Data 4. Data Sheet (a) Even number CSCG (b) Odd number CSCG CSC GROUP NUMBER (CSCG) 2-254 CIC GROUP NUMBER (GROUP)COMMON CHANNEL SIGNALLING CONTROLLER (CCH)REMARKS MG U G 0 1 2 3 4 5 6 7 CSC GROUP NUMBER (CSCG) 3-255 CIC GROUP NUMBER (GROUP)COMMON CHANNEL SIGNALLING CONTROLLER (CCH)REMARKS MG U G 0 1 2 3 4 5 6 7
