AAED : Assignment of Announcement Equipment Data
4. Data Sheet
Note:Parameter LANG is available for the Hotel System.
TENANT
NUMBER
(TN)ANNOUNCEMENT
EQUIPMENT
NUMBER
(EQP)
0-127KIND OF
LANGUAGE
(LANG)
0-15
NoteDURATION
OF
CONNECTION
(C)
0/1SENDING
RBT
 (R)
0/1ANSWER
SIGNAL
SENDING
(A)
0/1MULTIPLE
CONNECTION
(M)
0/1ROU TE
NUMBER
(RT)TRUNK
NUMBER
(TK)REMARKS

CHAPTER 4 NDA-24298
Page 618
Issue 1

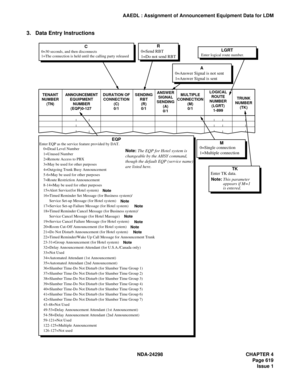

AAEDL : Assignment of Announcement Equipment Data for LDM
AAEDL: Assignment of Announcement Equipment Data for LDM
1. General
This command assigns the connected trunk data and the condition related to Announcement Equipment.
2. Precautions
The applicable Tenant Number (TN) range is designated by the ASYD command, SYS1, INDEX8. If data in
this command is common for all tenants (ASYDL command, SYS1, INDEX800 bit7=1), assign TN parameter
as data “1” for all tenants.

NDA-24298 CHAPTER 4
Page 619
Issue 1
AAEDL : Assignment of Announcement Equipment Data for LDM
3. Data Entry Instructions
Enter EQP as the service feature provided by DAT.
0=Dead Level Number
1=Unused Number
2=Remote Access to PBX
3=May be used for other purposes
4=Outgoing Trunk Busy Announcement
5-6=May be used for other purposes
7=Route Restriction Announcement
8-14=May be used for other purposes
15=Alert Service(for Hotel system)
16=Timed Reminder Set Message (for Business system)/
      Service...

CHAPTER 4 NDA-24298
Page 620
Issue 1
AAEDL : Assignment of Announcement Equipment Data for LDM
4. Data Sheet
TENANT
NUMBER
(TN)ANNOUNCEMENT
EQUIPMENT
NUMBER
(EQP)
0-127DURATION
OF
CONNECTION
(C)
0/1SENDING
RBT
 (R)
0/1ANSWER
SIGNAL
SENDING
(A)
0/1MULTIPLE
CONNECTION
(M)
0/1LOGICAL
ROUTE
NUMBER
(LGRT)
1-899TRUNK
NUMBER
(TK)REMARKS

NDA-24298 CHAPTER 4
Page 621
Issue 1

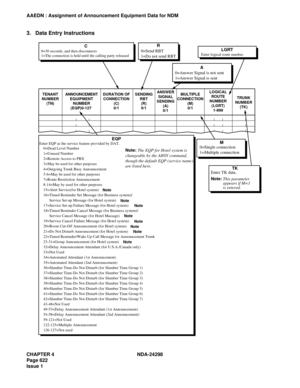

AAEDN : Assignment of Announcement Equipment Data for NDM
AAEDN: Assignment of Announcement Equipment Data for NDM
1. General
This command assigns the connected trunk data and the condition related to Announcement Equipment. The
data assigned by this command is written in the Network Data Memory (NDM) of the Network Control Node
(NCN), updating the NDM at each Local Node (LN).
2. Precautions
The applicable Tenant Number (TN) range is designated by the ASYDN command,...

CHAPTER 4 NDA-24298
Page 622
Issue 1
AAEDN : Assignment of Announcement Equipment Data for NDM
3. Data Entry Instructions
Enter EQP as the service feature provided by DAT.
0=Dead Level Number
1=Unused Number
2=Remote Access to PBX
3=May be used for other purposes
4=Outgoing Trunk Busy Announcement
5-6=May be used for other purposes
7=Route Restriction Announcement
8-14=May by used for other purposes
15=Alert Service(for Hotel system)
16=Timed Reminder Set Message (for Business system)/
      Service...

NDA-24298 CHAPTER 4
Page 623
Issue 1
AAEDN : Assignment of Announcement Equipment Data for NDM
4. Data Sheet
TENANT
NUMBER
(TN)ANNOUNCEMENT
EQUIPMENT
NUMBER
(EQP)
0-127DURATION
OF
CONNECTION
(C)
0/1SENDING
RBT
 (R)
0/1ANSWER
SIGNAL
SENDING
(A)
0/1MULTIPLE
CONNECTION
(M)
0/1LOGICAL
ROUTE
NUMBER
(LGRT)
1-899TRUNK
NUMBER
(TK)REMARKS

CHAPTER 4 NDA-24298
Page 624
Issue 1

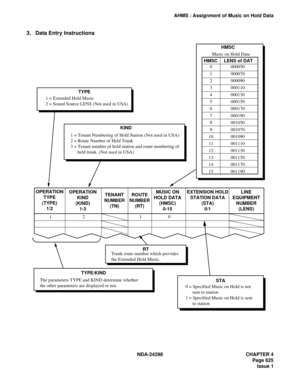

AHMS : Assignment of Music on Hold Data
AHMS: Assignment of Music on Hold Data
1. General
This command is used when a trunk provides Extended Hold Music. With this feature, the system supplies the
DAT card (only the first port of DAT) involved in Hold Music to a trunk route specified on this command. Since
the Extended Hold Music affects a trunk only, a station user may hear the ordinary Hold Music.
2. Precautions
1. A DAT card is required for the Extended Hold Music...

NDA-24298 CHAPTER 4
Page 625
Issue 1
AHMS : Assignment of Music on Hold Data
3. Data Entry Instructions
1 = Extended Hold Music
2 = Sound Source LENS (Not used in USA) TYPE
1 = Tenant Numbering of Hold Station (Not used in USA)
2 = Route Number of Held Trunk
3 = Tenant number of hold station and route numbering of
      held trunk. (Not used in USA)  KIND
OPERATION
TYPE
(TYPE)
1/2OPERATION
KIND
(KIND)
1-3MUSIC ON
HOLD DATA
(HMSC)
0-15EXTENSION HOLD
STATION DATA
(STA)
0/1LINE
EQUIPMENT
NUMBER
(LENS)...

CHAPTER 4 NDA-24298
Page 626
Issue 1
AHMS : Assignment of Music on Hold Data
4. Data Sheet
OPERATION
TYPE
(TYPE)
1/2OPERATION
KIND
(KIND)
1-3TENANT
NUMBER
(TN)ROUTE
NUMBER
(RT)MUSIC ON HOLD
DATA
(HMSC)
0-15EXTENSION HOLD
STATION DATA
(STA)
0/1LINE
EQUIPMENT
NUMBER
(LENS)
