Page 671
NDA-24298 CHAPTER 4 Page 637 Issue 1 ACSCL : Assignment of CSC Data for LDM ACSCL: Assignment of CSC Data for LDM 1. General This command assigns the Common Channel Handler (CCH) location of the Common Channel Signaling Controller Group (CSCG). This data is written in Local Data Memory (LDM). 2. Precautions 1. The CSCG represents the Point Code (PC) and the Circuit Identification Code (CIC) which correspond to the B-channels (voice channels) of the CCIS interface as assigned by the ACIC2 command. 2. The...
Page 672

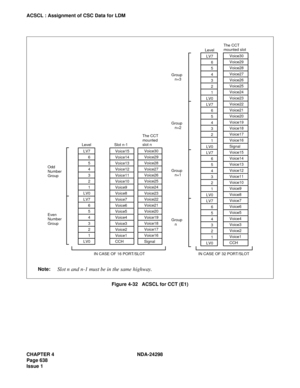

CHAPTER 4 NDA-24298 Page 638 Issue 1 ACSCL : Assignment of CSC Data for LDM Figure 4-32 ACSCL for CCT (E1) LV7 6 5 4 3 2 1 LV0 LV7 6 5 4 3 2 1 LV0LV7 6 5 4 3 2 1 LV0 LV7 6 5 4 3 2 1 LV0 LV7 6 5 4 3 2 1 LV0 LV7 6 5 4 3 2 1 LV0 LevelLevelVoice15 Voice14 Voice13 Voice12 Voice11 Voice10 Voice9 Voice8 Voice7 Voice6 Voice5 Voice4 Voice3 Voice2 Voice1 CCH Slot n-1Voice30 Voice29 Voice28 Voice27 Voice26 Voice25 Voice24 Voice23 Voice22 Voice21 Voice20 Voice19 Voice18 Voice17 Voice16 Signal The CCT mounted slot...
Page 673

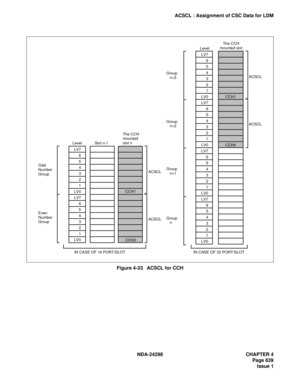

NDA-24298 CHAPTER 4 Page 639 Issue 1 ACSCL : Assignment of CSC Data for LDM Figure 4-33 ACSCL for CCH LV7 6 5 4 3 2 1 LV0 LV7 6 5 4 3 2 1 LV0LV7 6 5 4 3 2 1 LV0 LV7 6 5 4 3 2 1 LV0 LV7 6 5 4 3 2 1 LV0 LV7 6 5 4 3 2 1 LV0 Level ACSCL ACSCLLevel Slot n-1 CCH1 CCH1 CCH0 CCH0 The CCH mounted slot n The CCH mounted slot ACSCL ACSCL Odd Number Group Even Number GroupGroup n Group n+2 Group n+1 Group n+3 IN CASE OF 16 PORT/SLOT IN CASE OF 32 PORT/SLOT
Page 674
CHAPTER 4 NDA-24298
Page 640
Issue 1
ACSCL : Assignment of CSC Data for LDM

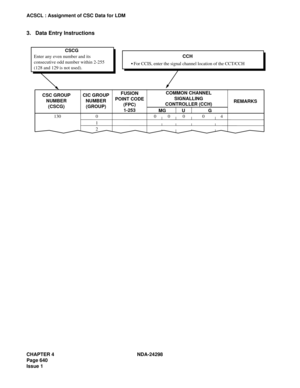

3. Data Entry Instructions
Enter any even number and its
consecutive odd number within 2-255
(128 and 129 is not used).
130 0 0 0 0 0 4
1
2 CSCG
For CCIS, enter the signal channel location of the CCT/CCH
CCH
CSC GROUP
NUMBER
(CSCG)CIC GROUP
NUMBER
(GROUP)
FUSION
POINT CODE
(FPC)
1-253COMMON CHANNEL
SIGNALLING
CONTROLLER (CCH)
MG U GREMARKS
Page 675
NDA-24298 CHAPTER 4 Page 641 Issue 1 ACSCL : Assignment of CSC Data for LDM 4. Data Sheet (a) Even number CSCG (b) Odd number CSCG CSC GROUP NUMBER (CSCG) 130-254 CIC GROUP NUMBER (GROUP)FUSION POINT CODE (FPC) 1-253COMMON CHANNEL SIGNALLING CONTROLLER (CCH) REMARKS MG U G 0 1 2 3 4 5 6 7 CSC GROUP NUMBER (CSCG) 131-255 CIC GROUP NUMBER (GROUP)FUSION POINT CODE (FPC) 1-253COMMON CHANNEL SIGNALLING CONTROLLER (CCH)REMARKS MG U G 0 1 2 3 4 5 6 7
Page 676
CHAPTER 4 NDA-24298 Page 642 Issue 1 ACIC1 : Assignment of CIC Code Data 1 ACIC1: Assignment of CIC Code Data 1 1. General This command is used for CCIS and/or ISDN data programming, and is assigned in the Common Channel Signaling Controller Group (CSCG) for a determinate Point Code (PC). Note:In this command, Determinate Point Code is synonymous with Destination Point Code; the terms are used interchangeably. 2. Precautions 1. ACIC2 command assignment is also required for CCIS, and the PC parameter is...
Page 677

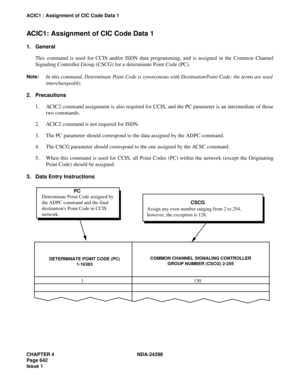

NDA-24298 CHAPTER 4 Page 643 Issue 1 ACIC1 : Assignment of CIC Code Data 1 4. Data Sheet DETERMINATE POINT CODE (PC) COMMON CHANNEL SIGNALING CONTROLLER GROUP NUMBER (CSCG) REMARKS
Page 678
CHAPTER 4 NDA-24298 Page 644 Issue 1 ACIC2 : Assignment of CIC Code Data 2 ACIC2: Assignment of CIC Code Data 2 1. General This command is used for CCIS data programming, and is assigned the Circuit Identification Code (CIC) and LENS (of the speech channel of the CCIS link) for the PC. Note:In this command, Determinate Point Code is synonymous with Destination Point Code; the terms are used interchangeably. 2. Precautions 1. A unique CIC number should be given for each speech channel (which is assigned...
Page 679

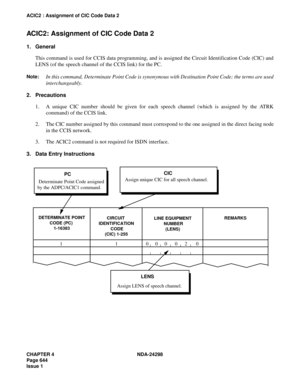

NDA-24298 CHAPTER 4 Page 645 Issue 1 ACIC2 : Assignment of CIC Code Data 2 4. Data Sheet DETERMINATE POINT CODE (PC)CIRCUIT IDENTIFICATION CODE (CIC) LINE EQUIPMENT NUMBER (LENS) REMARKS
Page 680
CHAPTER 4 NDA-24298 Page 646 Issue 1 ARTI : Assignment of Trunk Application Data ARTI: Assignment of Trunk Application Data 1. General This command assigns Trunk Application Data. 2. Precautions 1. The ARTD command should be assigned for the external trunk route. 2. The applicable number of the external trunk route is designated by the ASYD command, SYS1, INDEX65. 3. Data Entry Instructions See data sheet in Section 4. 4. Data Sheet CDN ROUTE NUMBER TRUNK DATA 1RSTAssignment of Restart 0 = Restart Send...
