11
Preparations Getting Started
Usage Precautions / About Notations
‹When closing the disk cover
zPress down near the power indicator   (position of the arrow) to ensure that the
cover is locked.
zSome of the illustrations in this manual may differ slightly in shape from the actual
items on your computer. This should make the explanation easier to understand.
zIf a user has logged on to Windows without the Administrator Authority, some func-
tions may not be executable, and some screens may not be...

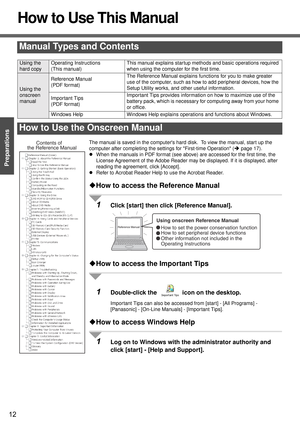

12
Preparations Getting Started
How to Use This Manual
The manual is saved in the computers hard disk.  To view the manual, start up the
computer after completing the settings for First-time Operation (Îpage 17).
zWhen the manuals in PDF format (see above) are accessed for the first time, the
License Agreement of the Adobe Reader may be displayed. If it is displayed, after
reading the agreement, click [Accept].
zRefer to Acrobat Reader Help to use the Acrobat Reader.
‹How to access the Reference...

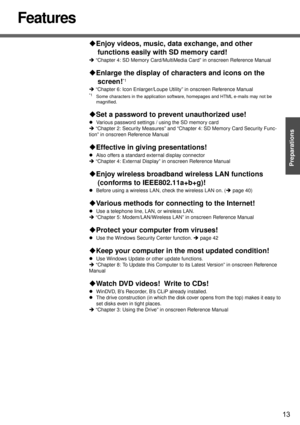

13
Preparations Getting Started
Features
‹Enjoy videos, music, data exchange, and other
functions easily with SD memory card!
Î “Chapter 4: SD Memory Card/MultiMedia Card” in onscreen Reference Manual
‹Enlarge the display of characters and icons on the
screen!
*1
Î “Chapter 6: Icon Enlarger/Loupe Utility” in onscreen Reference Manual
*1Some characters in the application software, homepages and HTML e-mails may not be
magnified.
‹Set a password to prevent unauthorized use!
zVarious password settings /...

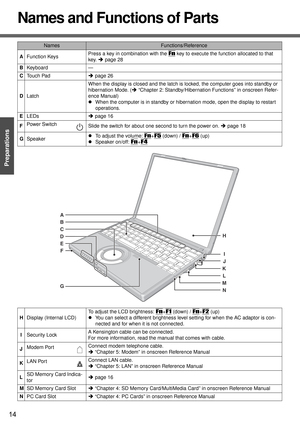

14
Preparations Getting Started
Names and Functions of Parts
NamesFunctions/Reference
AFunction KeysPress a key in combination with the
Fn key to execute the function allocated to that
key. Îpage 28
BKeyboard —
CTouch PadÎpage 26
DLatchWhen the display is closed and the latch is locked, the computer goes into standby or
hibernation Mode. (Î “Chapter 2: Standby/Hibernation Functions” in onscreen Refer-
ence Manual)
zWhen the computer is in standby or hibernation mode, open the display to restart...

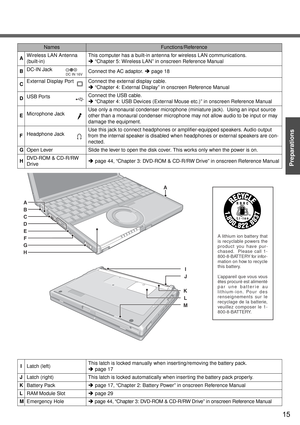

15
Preparations Getting Started
NamesFunctions/Reference
AWireless LAN Antenna
(built-in)This computer has a built-in antenna for wireless LAN communications.
Î “Chapter 5: Wireless LAN” in onscreen Reference Manual
BDC-IN Jack
Connect the AC adaptor. Îpage 18
CExternal Display Port Connect the external display cable.
Î “Chapter 4: External Display” in onscreen Reference Manual
DUSB PortsConnect the USB cable.
Î “Chapter 4: USB Devices (External Mouse etc.)” in onscreen Reference Manual
EMicrophone...

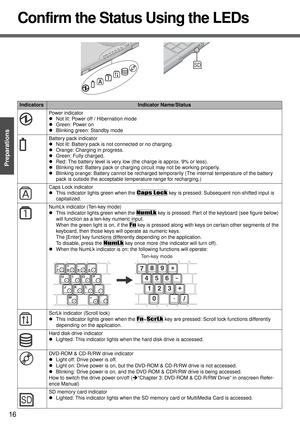

16
Preparations Getting Started
Confirm the Status Using the LEDs
IndicatorsIndicator Name/Status
Powe r in d ic a t o r
zNot lit: Power off / Hibernation mode
zGreen: Power on
zBlinking green: Standby mode
Battery pack indicator
zNot lit: Battery pack is not connected or no charging.
zOrange: Charging in progress.
zGreen: Fully charged.
zRed: The battery level is very low (the charge is approx. 9% or less).
zBlinking red: Battery pack or charging circuit may not be working properly.
zBlinking orange:...

17
Preparations

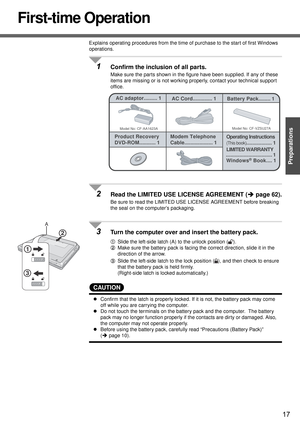

First-time Operation
Explains operating procedures from the time of purchase to the start of first Windows
operations.
1Confirm the inclusion of all parts.
Make sure the parts shown in the figure have been supplied. If any of these
items are missing or is not working properly, contact your technical suppor t
office.
2Read the LIMITED USE LICENSE AGREEMENT (Îpage 62).
Be sure to read the LIMITED USE LICENSE AGREEMENT before breaking
the seal on the computer’s packaging.
3Turn the...

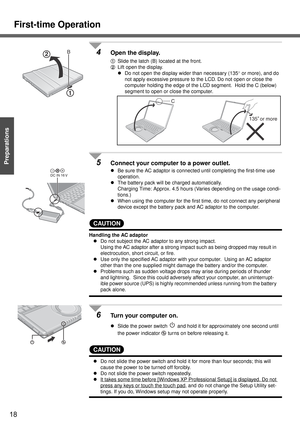

First-time Operation
18
Getting Started
Preparations
4Open the display.
ASlide the latch (B) located at the front.
BLift open the display.
zDo not open the display wider than necessary (135° or more), and do
not apply excessive pressure to the LCD. Do not open or close the
computer holding the edge of the LCD segment.  Hold the C (below)
segment to open or close the computer.
5Connect your computer to a power outlet.
zBe sure the AC adaptor is connected until completing the first-time use...

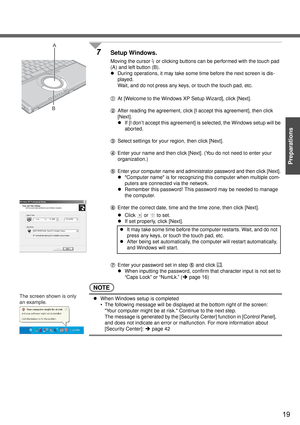

19
Preparations
7Setup Windows.
Moving the cursor   or clicking buttons can be performed with the touch pad
(A) and left button (B).
zDuring operations, it may take some time before the next screen is dis-
played.
Wait, and do not press any keys, or touch the touch pad, etc.
AAt [Welcome to the Windows XP Setup Wizard], click [Next].
BAfter reading the agreement, click [I accept this agreement], then click
[Next].
zIf [I don’t accept this agreement] is selected, the Windows setup will be
aborted....

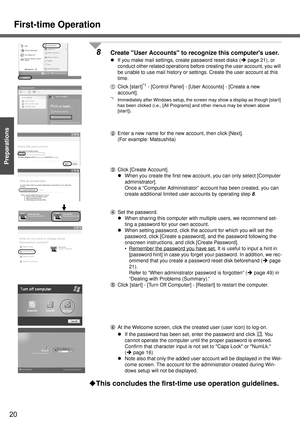

First-time Operation
20
Getting Started
Preparations
8Create User Accounts to recognize this computers user.
zIf you make mail settings, create password reset disks (Îpage 21), or
conduct other related operations before creating the user account, you will
be unable to use mail history or settings. Create the user account at this
time.
AClick [start]
*1 - [Control Panel] - [User Accounts] - [Create a new
account].
*1Immediately after Windows setup, the screen may show a display as though [start]
has...
