Panasonic Cf W2fwczzbm Owners Manual

21

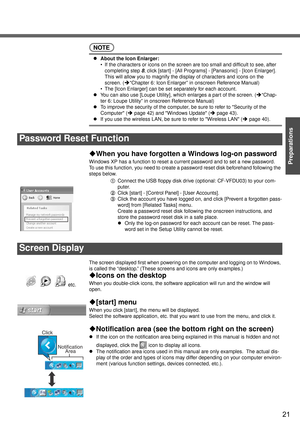

Preparations
NOTE
zAbout the Icon Enlarger:
 If the characters or icons on the screen are too small and difficult to see, after
completing step 8, click [start] - [All Programs] - [Panasonic] - [Icon Enlarger].
This will allow you to magnify the display of characters and icons on the
screen. (ΓChapter 6: Icon Enlarger” in onscreen Reference Manual)
 The [Icon Enlarger] can be set separately for each account.
zYou can also use [Loupe Utility], which enlarges a part of the screen. (ΓChap-
ter 6:...

First-time Operation
22
Getting Started
Preparations

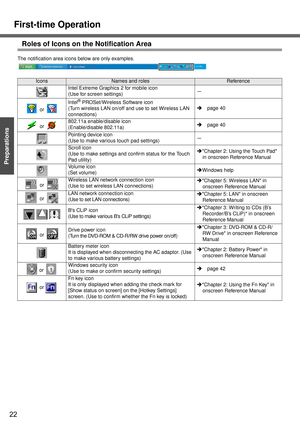

Roles of Icons on the Notification Area
The notification area icons below are only examples.
IconsNames and rolesReference
Intel Extreme Graphics 2 for mobile icon
(Use for screen settings)9Ù
 or Intel
® PROSet/Wireless Software icon
(Turn wireless LAN on/off and use to set Wireless LAN
connections)Îpage 40
 or 802.11a enable/disable icon
(Enable/disable 802.11a)Îpage 40
Pointing device icon
(Use to make various touch pad settings)9Ù
Scroll icon
(Use...

23
Getting Started

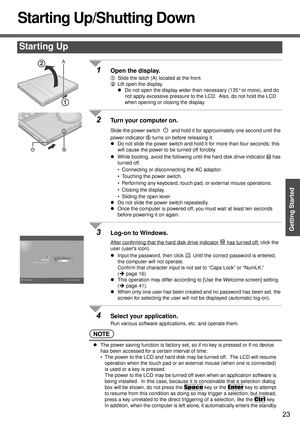

Starting Up/Shutting Down
1Open the display.
ASlide the latch (A) located at the front.
BLift open the display.
zDo not open the display wider than necessary (135° or more), and do
not apply excessive pressure to the LCD.  Also, do not hold the LCD
when opening or closing the display.
2Turn your computer on.
Slide the power switch   and hold it for approximately one second until the
power indicator   turns on before releasing it.
zDo not slide the power switch and hold it for more...

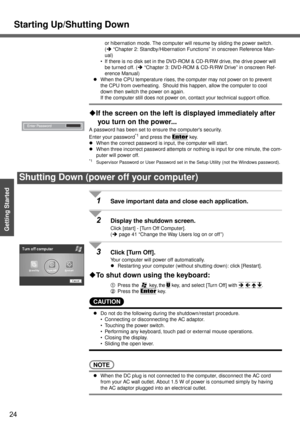

Starting Up/Shutting Down
24
Getting Started
or hibernation mode. The computer will resume by sliding the power switch.
(Î “Chapter 2: Standby/Hibernation Functions” in onscreen Reference Man-
ual)
 If there is no disk set in the DVD-ROM & CD-R/RW drive, the drive power will
be turned off. (Î “Chapter 3: DVD-ROM & CD-R/RW Drive” in onscreen Ref-
erence Manual)
zWhen the CPU temperature rises, the computer may not power on to prevent
the CPU from overheating.  Should this happen, allow the computer to...

25
Getting Started

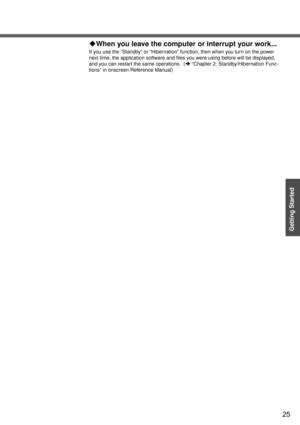

‹When you leave the computer or interrupt your work...
If you use the “Standby” or “Hibernation” function, then when you turn on the power
next time, the application software and files you were using before will be displayed,
and you can restart the same operations.  (Î “Chapter 2: Standby/Hibernation Func-
tions” in onscreen Reference Manual)

26
Getting Started

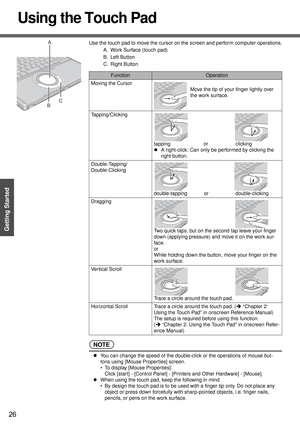

Using the Touch Pad
Use the touch pad to move the cursor on the screen and perform computer operations.
A. Work Surface (touch pad)
B. Left Button
C. Right Button
NOTE
zYou can change the speed of the double-click or the operations of mouse but-
tons using [Mouse Proper ties] screen.
 To display [Mouse Properties]:
Click [start] - [Control Panel] - [Printers and Other Hardware] - [Mouse].
zWhen using the touch pad, keep the following in mind.
 By design the touch pad is to be used...

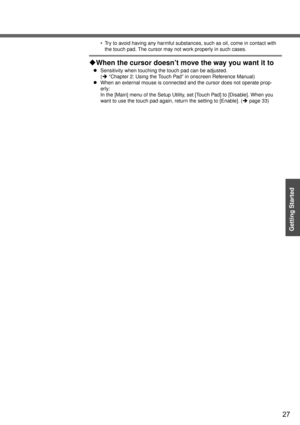

27
Getting Started
 Try to avoid having any harmful substances, such as oil, come in contact with
the touch pad. The cursor may not work properly in such cases.
‹When the cursor doesn’t move the way you want it to
zSensitivity when touching the touch pad can be adjusted.
(Î “Chapter 2: Using the Touch Pad” in onscreen Reference Manual)
zWhen an external mouse is connected and the cursor does not operate prop-
erly:
In the [Main] menu of the Setup Utility, set [Touch Pad] to [Disable]. When you
want to...

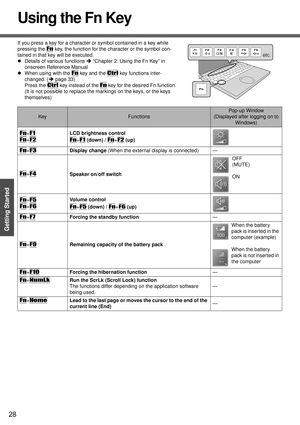

28
Getting Started
Using the Fn Key
If you press a key for a character or symbol contained in a key while
pressing the
Fn key, the function for the character or the symbol con-
tained in that key will be executed.
zDetails of various functions Î “Chapter 2: Using the Fn Key” in
onscreen Reference Manual
zWhen using with the
Fn key and the Ctrl key functions inter-
changed. (Îpage 33)
Press the
Ctrl key instead of the Fn key for the desired Fn function.
(It is not possible to replace the markings on...

29
Getting Started

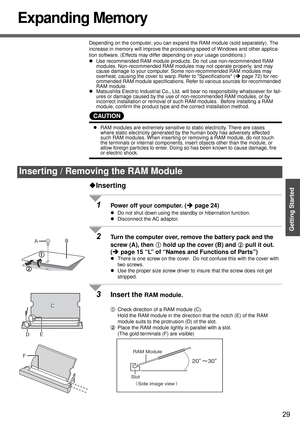

Expanding Memory
Depending on the computer, you can expand the RAM module (sold separately). The
increase in memory will improve the processing speed of Windows and other applica-
tion software. (Effects may differ depending on your usage conditions.)
zUse recommended RAM module products. Do not use non-recommended RAM
modules. Non-recommended RAM modules may not operate properly, and may
cause damage to your computer. Some non-recommended RAM modules may
overheat, causing the...

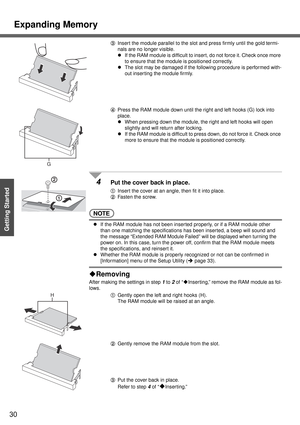

Expanding Memory
30
Getting Started
CInsert the module parallel to the slot and press firmly until the gold termi-
nals are no longer visible.
zIf the RAM module is difficult to insert, do not force it. Check once more
to ensure that the module is positioned correctly.
zThe slot may be damaged if the following procedure is performed with-
out inser ting the module firmly.
DPress the RAM module down until the right and left hooks (G) lock into
place.
zWhen pressing down the module, the right and left...
