Panasonic Cf W2fwczzbm Owners Manual

61

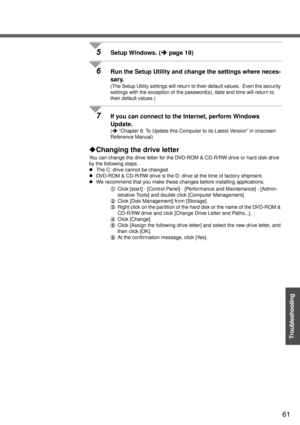

Troubleshooting
5Setup Windows. (Îpage 19)
6Run the Setup Utility and change the settings where neces-
sary.
(The Setup Utility settings will return to their default values.  Even the security
settings with the exception of the password(s), date and time will return to
their default values.)
7If you can connect to the Internet, perform Windows
Update.
(Î “Chapter 8: To Update this Computer to its Latest Version” in onscreen
Reference Manual)
‹Changing the drive letter
You can change the drive...

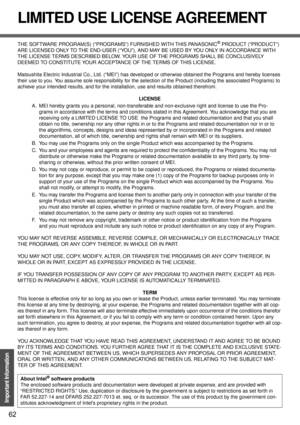

62
Important Information
LIMITED USE LICENSE AGREEMENT
THE SOFTWARE PROGRAM(S) (“PROGRAMS”) FURNISHED WITH THIS PANASONIC® PRODUCT (“PRODUCT”)
ARE LICENSED ONLY TO THE END-USER (“YOU”), AND MAY BE USED BY YOU ONLY IN ACCORDANCE WITH
THE LICENSE TERMS DESCRIBED BELOW. YOUR USE OF THE PROGRAMS SHALL BE CONCLUSIVELY
DEEMED TO CONSTITUTE YOUR ACCEPTANCE OF THE TERMS OF THIS LICENSE.
Matsushita Electric Industrial Co., Ltd. (“MEI”) has developed or otherwise obtained the Programs and hereby licenses
their...

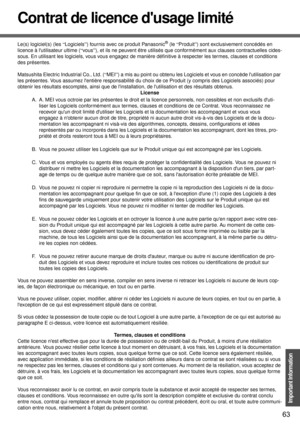

63
Important Information
Contrat de licence dusage limité
Le(s) logiciel(s) (les “Logiciels”) fournis avec ce produit Panasonic® (le “Produit”) sont exclusivement concédés en
licence à lutilisateur ultime (“vous”), et ils ne peuvent être utilisés que conformément aux clauses contractuelles cides-
sous. En utilisant les logiciels, vous vous engagez de manière définitive à respecter les termes, clauses et conditions
des présentes.
Matsushita Electric Industrial Co., Ltd. (“MEI”) a mis au point ou obtenu...

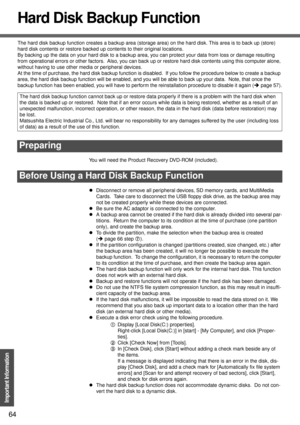

64
Important Information
Hard Disk Backup Function
The hard disk backup function creates a backup area (storage area) on the hard disk. This area is to back up (store)
hard disk contents or restore backed up contents to their original locations.
By backing up the data on your hard disk to a backup area, you can protect your data from loss or damage resulting
from operational errors or other factors.  Also, you can back up or restore hard disk contents using this computer alone,
without having to use...

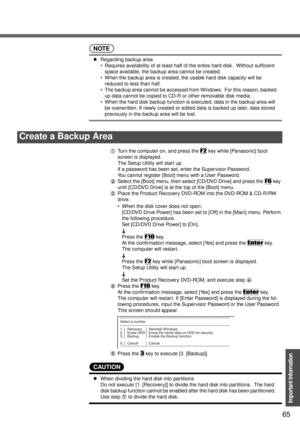

65
Important Information
NOTE
zRegarding backup area
 Requires availability of at least half of the entire hard disk.  Without sufficient
space available, the backup area cannot be created.
 When the backup area is created, the usable hard disk capacity will be
reduced to less than half.
 The backup area cannot be accessed from Windows.  For this reason, backed
up data cannot be copied to CD-R or other removable disk media.
 When the hard disk backup function is executed, data in the backup area...

Hard Disk Backup Function

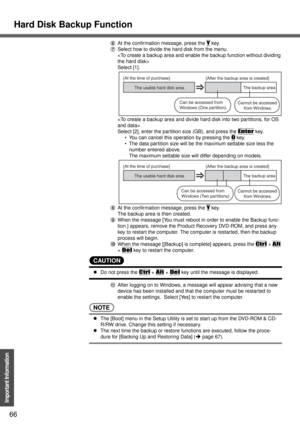

66
Important Information
FAt the confirmation message, press the Y key.
GSelect how to divide the hard disk from the menu.

Select [1].

Select [2], enter the partition size (GB), and press the
Enter key.
 You can cancel this operation by pressing the
0 key.
 The data partition size will be the maximum settable size less the
number entered above.
The maximum settable size will differ depending on models.
HAt the confirmation message, press the
Y key.
The backup area is...

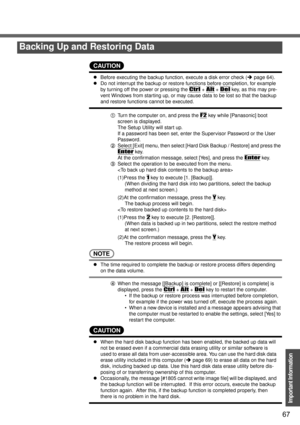

67
Important Information
CAUTION
zBefore executing the backup function, execute a disk error check (Îpage 64).
zDo not interrupt the backup or restore functions before completion, for example
by turning off the power or pressing the
Ctrl + Alt + Del key, as this may pre-
vent Windows from starting up, or may cause data to be lost so that the backup
and restore functions cannot be executed.
ATurn the computer on, and press the F2 key while [Panasonic] boot
screen is displayed.
The Setup Utility will...

Hard Disk Backup Function

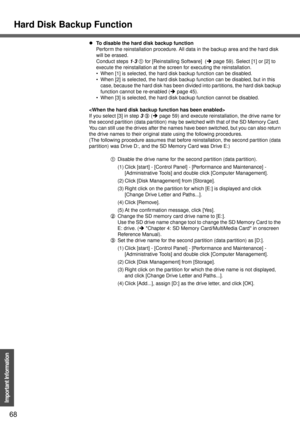

68
Important Information
zTo disable the hard disk backup function
Perform the reinstallation procedure. All data in the backup area and the hard disk
will be erased.
Conduct steps 1-3A for [Reinstalling Software]  (Îpage 59). Select [1] or [2] to
execute the reinstallation at the screen for executing the reinstallation.
 When [1] is selected, the hard disk backup function can be disabled.
 When [2] is selected, the hard disk backup function can be disabled, but in this...

69
Important Information

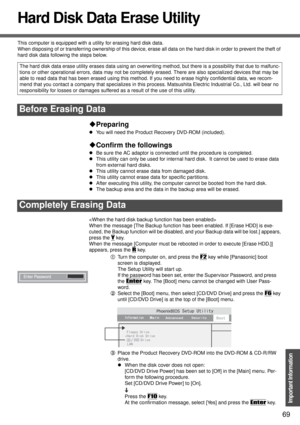

Hard Disk Data Erase Utility
This computer is equipped with a utility for erasing hard disk data.
When disposing of or transferring ownership of this device, erase all data on the hard disk in order to prevent the theft of
hard disk data following the steps below.
‹Preparing
zYou will need the Product Recovery DVD-ROM (included).
‹Confirm the followings
zBe sure the AC adaptor is connected until the procedure is completed.
zThis utility can only be used for internal hard disk....

Hard Disk Data Erase Utility

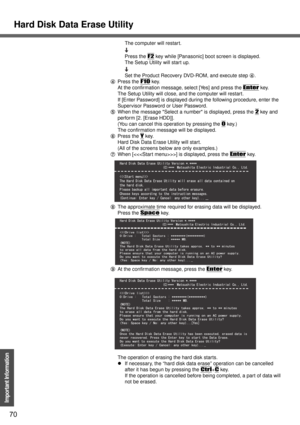

70
Important Information
The computer will restart.
Press the
F2 key while [Panasonic] boot screen is displayed.
The Setup Utility will start up.
Set the Product Recovery DVD-ROM, and execute step D.
DPress the
F10 key.
At the confirmation message, select [Yes] and press the
Enter key.
The Setup Utility will close, and the computer will restart.
If [Enter Password] is displayed during the following procedure, enter the
Supervisor Password or User Password.
EWhen the...
