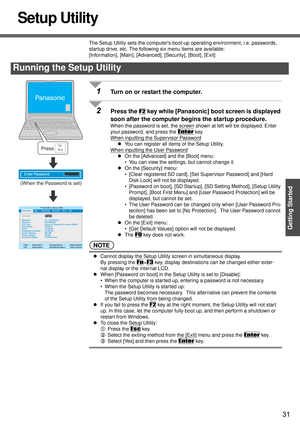

31
Getting Started
Setup Utility
The Setup Utility sets the computers boot-up operating environment, i.e. passwords,
startup drive, etc. The following six menu items are available:
[Information], [Main], [Advanced], [Security], [Boot], [Exit]
1Turn on or restart the computer.
2Press the F2 key while [Panasonic] boot screen is displayed
soon after the computer begins the startup procedure.
When the password is set, the screen shown at left will be displayed. Enter
your password, and press the
Enter...

Setup Utility

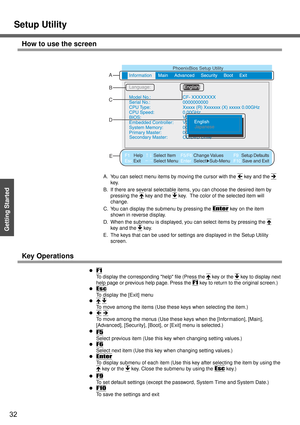

32
Getting Started
How to use the screen
A. You can select menu items by moving the cursor with the Í key and the Î
key.
B. If there are several selectable items, you can choose the desired item by
pressing the Ï
 key and the Ð key.  The color of the selected item will
change.
C. You can display the submenu by pressing the
Enter key on the item
shown in reverse display.
D. When the submenu is displayed, you can select items by pressing the Ï
key and the Ð key.
E. The keys that can be...

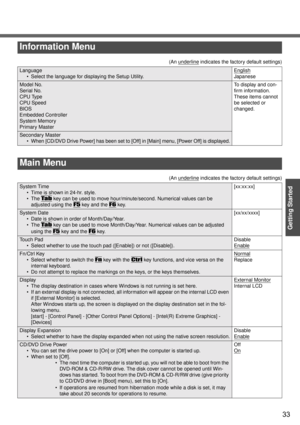

33
Getting Started
Information Menu
(An underline indicates the factory default settings)
Language
 Select the language for displaying the Setup Utility.English
Japanese
Model No.
Serial No.
CPU Type
CPU Speed
BIOS
Embedded Controller
System Memory
Primary MasterTo display and con-
firm information.
These items cannot
be selected or
changed.
Secondary Master
 When [CD/DVD Drive Power] has been set to [Off] in [Main] menu, [Power Off] is displayed.
Main Menu
(An underline indicates the factory...

Setup Utility

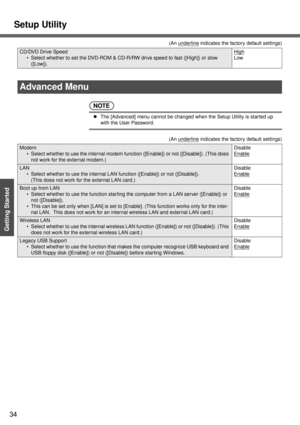

34
Getting Started
NOTE
zThe [Advanced] menu cannot be changed when the Setup Utility is started up
with the User Password.
CD/DVD Drive Speed
 Select whether to set the DVD-ROM & CD-R/RW drive speed to fast ([High]) or slow
([Low]).High
Low (An u
nderline indicates the factory default settings)
Advanced Menu
(An underline indicates the factory default settings)
Modem
 Select whether to use the internal modem function ([Enable]) or not ([Disable]). (This does
not work for the external...

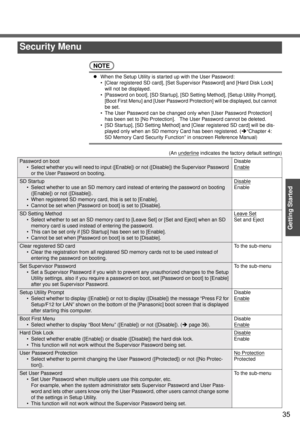

35
Getting Started
NOTE
zWhen the Setup Utility is started up with the User Password:
 [Clear registered SD card], [Set Supervisor Password] and [Hard Disk Lock]
will not be displayed.
 [Password on boot], [SD Startup], [SD Setting Method], [Setup Utility Prompt],
[Boot First Menu] and [User Password Protection] will be displayed, but cannot
be set.
 The User Password can be changed only when [User Password Protection]
has been set to [No Protection].   The User Password cannot be deleted.
 [SD...

Setup Utility

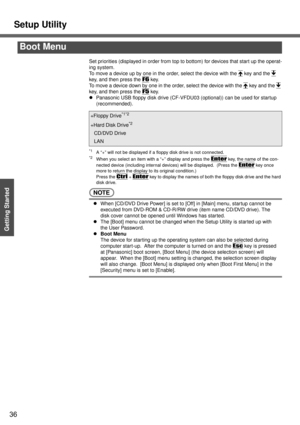

36
Getting Started
Set priorities (displayed in order from top to bottom) for devices that start up the operat-
ing system.
To move a device up by one in the order, select the device with the Ï
 key and the Ð
key, and then press the F6 key.
To move a device down by one in the order, select the device with the Ï
 key and the Ð
key, and then press the F5 key.
zPanasonic USB floppy disk drive (CF-VFDU03 (optional)) can be used for startup
(recommended).
*1A “+” will not be displayed if a...

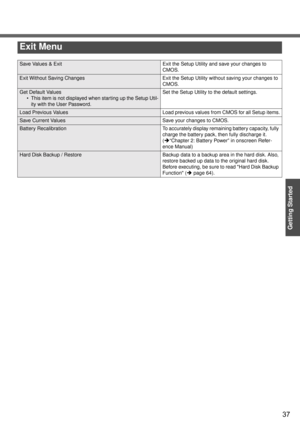

37
Getting Started
Exit Menu
Save Values & Exit Exit the Setup Utility and save your changes to
CMOS.
Exit Without Saving Changes Exit the Setup Utility without saving your changes to
CMOS.
Get Default Values
 This item is not displayed when starting up the Setup Util-
ity with the User Password.Set the Setup Utility to the default settings.
Load Previous Values Load previous values from CMOS for all Setup items.
Save Current Values Save your changes to CMOS.
Battery  Recalibration To accurately...

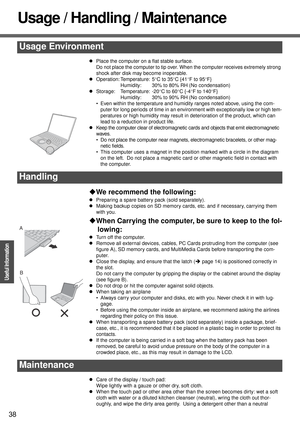

38
Operation
Useful Information
Usage / Handling / Maintenance
zPlace the computer on a flat stable surface.
Do not place the computer to tip over. When the computer receives extremely strong
shock after disk may become inoperable.
zOperation: Temperature: 5°C to 35°C {41°F to 95°F}
Humidity: 30% to 80% RH (No condensation)
zStorage: Temperature: -20°C to 60°C {-4°F to 140°F}
Humidity: 30% to 90% RH (No condensation)
 Even within the temperature and humidity ranges noted above, using the com-
puter for...

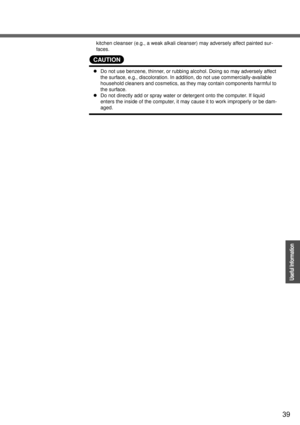

39
Operation
Useful Information
kitchen cleanser (e.g., a weak alkali cleanser) may adversely affect painted sur-
faces.
CAUTION
zDo not use benzene, thinner, or rubbing alcohol. Doing so may adversely affect
the surface, e.g., discoloration. In addition, do not use commercially-available
household cleaners and cosmetics, as they may contain components harmful to
the surface.
zDo not directly add or spray water or detergent onto the computer. If liquid
enters the inside of the computer, it may cause...

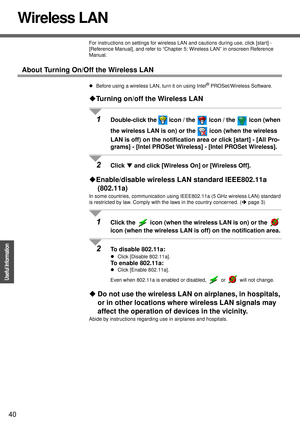

40
Operation
Useful Information
Wireless LAN
For instructions on settings for wireless LAN and cautions during use, click [start] -
[Reference Manual], and refer to “Chapter 5: Wireless LAN” in onscreen Reference
Manual.
About Turning On/Off the Wireless LAN
zBefore using a wireless LAN, turn it on using Intel® PROSet/Wireless Software.
‹Turning on/off the Wireless LAN
1Double-click the   icon / the   icon / the   icon (when
the wireless LAN is on) or the   icon (when the wireless
LAN is off) on the...
