41
Operation
Useful Information
Windows/Antivirus Protection
Depending on the settings in Windows, installed applications, drivers, menus and other
displays may be inoperable.
In some cases, certain functions, such as the password reset disk (Îpage 21), may
not operate. In this case, refer to the items below, and the applied items from the prob-
lem-solving section of this manual and onscreen Reference Manual, Windows Help
(Îpage 12), and the software application and driver’s operating instructions,...

Windows/Antivirus Protection

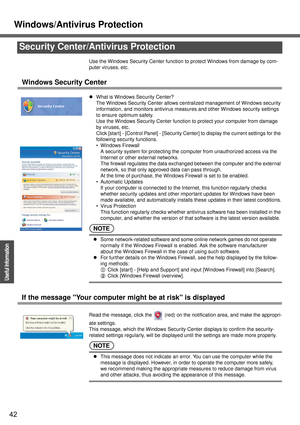

42
Operation
Useful Information
Use the Windows Security Center function to protect Windows from damage by com-
puter viruses, etc.
Windows Security Center
zWhat is Windows Security Center?
The Windows Security Center allows centralized management of Windows security
information, and monitors antivirus measures and other Windows security settings
to ensure optimum safety.
Use the Windows Security Center function to protect your computer from damage
by viruses, etc.
Click...

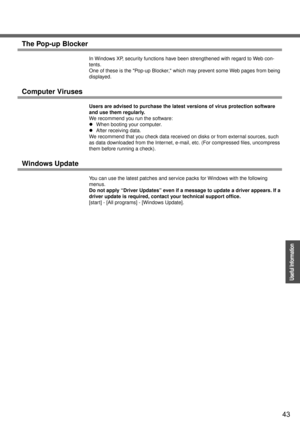

43
Operation
Useful Information
The Pop-up Blocker
In Windows XP, security functions have been strengthened with regard to Web con-
tents.
One of these is the Pop-up Blocker, which may prevent some Web pages from being
displayed.
Computer Viruses
Users are advised to purchase the latest versions of virus protection software
and use them regularly.
We recommend you run the software:
zWhen booting your computer.
zAfter receiving data.
We recommend that you check data received on disks or from external...

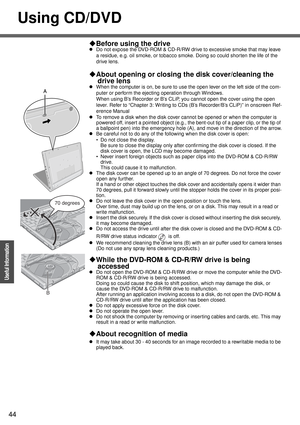

44
Operation
Useful Information
Using CD/DVD
‹Before using the drive
zDo not expose the DVD-ROM & CD-R/RW drive to excessive smoke that may leave
a residue, e.g. oil smoke, or tobacco smoke. Doing so could shorten the life of the
drive lens.
‹About opening or closing the disk cover/cleaning the
drive lens
zWhen the computer is on, be sure to use the open lever on the left side of the com-
puter or perform the ejecting operation through Windows.
When using B’s Recorder or B’s CLiP, you cannot open the...

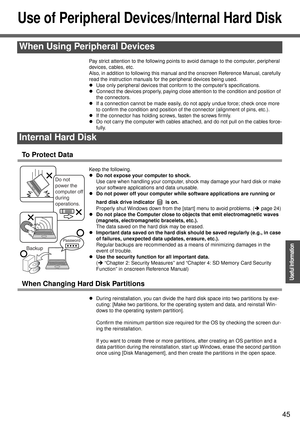

45
Operation
Useful Information
Use of Peripheral Devices/Internal Hard Disk
Pay strict attention to the following points to avoid damage to the computer, peripheral
devices, cables, etc.
Also, in addition to following this manual and the onscreen Reference Manual, carefully
read the instruction manuals for the peripheral devices being used.
zUse only peripheral devices that conform to the computer’s specifications.
zConnect the devices properly, paying close attention to the condition and position of...

46
Operation
Useful Information

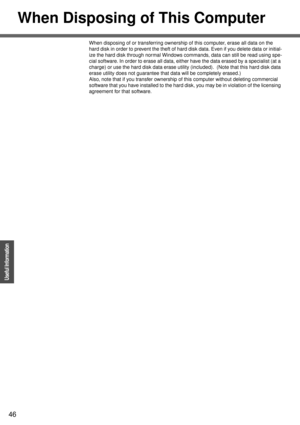

When Disposing of This Computer
When disposing of or transferring ownership of this computer, erase all data on the
hard disk in order to prevent the theft of hard disk data. Even if you delete data or initial-
ize the hard disk through normal Windows commands, data can still be read using spe-
cial software. In order to erase all data, either have the data erased by a specialist (at a
charge) or use the hard disk data erase utility (included).  (Note that this hard disk...

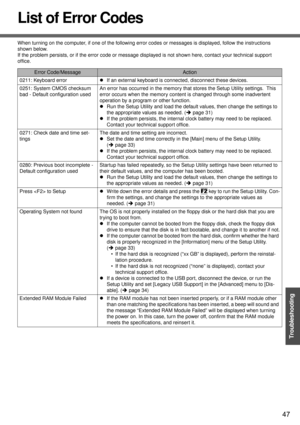

47
Troubleshooting
List of Error Codes
When turning on the computer, if one of the following error codes or messages is displayed, follow the instructions
shown below.
If the problem persists, or if the error code or message displayed is not shown here, contact your technical support
office.
Error Code/MessageAction
0211: Keyboard errorzIf an external keyboard is connected, disconnect these devices.
0251: System CMOS checksum
bad - Default configuration usedAn error has occurred in the memory that...

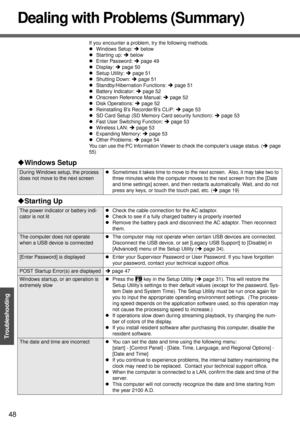

48
Troubleshooting
Dealing with Problems (Summary)
If you encounter a problem, try the following methods.
zWindows Setup: Îbelow
zStarting up: Îbelow
zEnter Password: Îpage 49
zDisplay: Îpage 50
zSetup Utility: Îpage 51
zShutting Down: Îpage 51
zStandby/Hibernation Functions: Îpage 51
zBattery Indicator: Îpage 52
zOnscreen Reference Manual: Îpage 52
zDisk Operations: Îpage 52
zReinstalling B’s Recorder/B’s CLiP: Îpage 53
zSD Card Setup (SD Memory Card security function): Îpage 53
zFast User Switching...

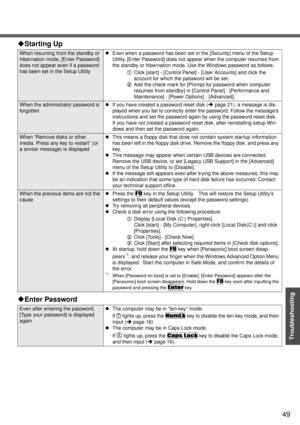

49
Troubleshooting
When resuming from the standby or
hibernation mode, [Enter Password]
does not appear even if a password
has been set in the Setup UtilityzEven when a password has been set in the [Security] menu of the Setup
Utility, [Enter Password] does not appear when the computer resumes from
the standby or hibernation mode. Use the Windows password as follows:
AClick [start] - [Control Panel] - [User Accounts] and click the
account for which the password will be set.
BAdd the check mark for...

Dealing with Problems (Summary)

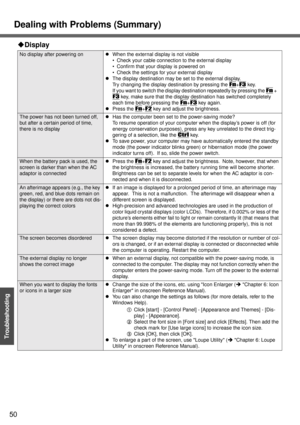

50
Troubleshooting
‹Display
No display after powering onzWhen the external display is not visible
 Check your cable connection to the external display
 Confirm that your display is powered on
 Check the settings for your external display
zThe display destination may be set to the external display.
Try changing the display destination by pressing the
Fn+F3 key.
If you want to switch the display destination repeatedly by pressing the
Fn +
F3 key, make sure that the...
