Panasonic Cf W2fwczzbm Owners Manual

71
Important Information

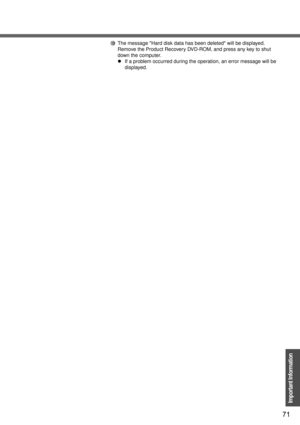

JThe message Hard disk data has been deleted will be displayed.
Remove the Product Recovery DVD-ROM, and press any key to shut
down the computer.
zIf a problem occurred during the operation, an error message will be
displayed.

72
Important Information

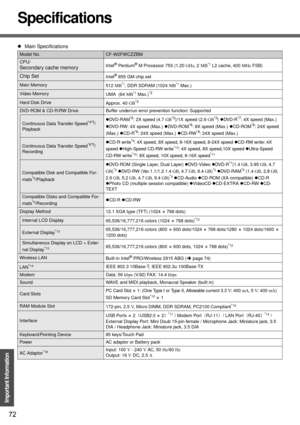

Specifications
zMain Specifications
Model No.CF-W2FWCZZBM
CPU/
Secondary cache memoryIntel® Pentium® M Processor 753 (1.20 GHz, 2 MB*1 L2 cache, 400 MHz FSB)
Chip SetIntel® 855 GM chip set
Main Memory
512 MB*1, DDR SDRAM (1024 MB*1 Max.)
Video Memory
UMA  (64 MB*1 Max.)*2
Hard Disk Drive
Approx. 40 GB*3
DVD-ROM & CD-R/RW Drive Buffer underrun error prevention function: Supported
Continuous Data Transfer Speed*4*5/
PlaybackzDVD-RAM
*6: 2X speed (4.7 GB*3)/1X speed (2.6 GB*3)zDV D...

73

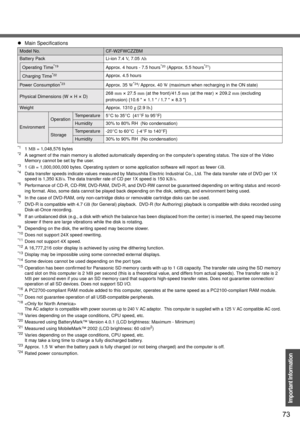

Important Information
*11MB = 1,048,576 bytes*2A segment of the main memory is allotted automatically depending on the computer’s operating status. The size of the Video
Memory cannot be set by the user.
*31GB = 1,000,000,000 bytes. Operating system or some application software will report as fewer GB.*4Data transfer speeds indicate values measured by Matsushita Electric Industrial Co., Ltd. The data transfer rate of DVD per 1X
speed is 1,350 KB/s. The data transfer rate of CD per 1X speed is 150...

Specifications
74
Important Information
*1Operations of this computer are not guaranteed except for the pre-installed OS.*2Preinstalled B’s CLiP does not support CD-R.*3The Product Recovery DVD-ROM is required.
*4These are speeds specified in IEEE802.11a+b+g standards.  Actual speeds may differ.

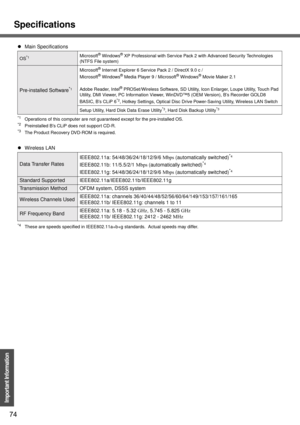

zMain Specifications
OS*1Microsoft® Windows® XP Professional with Service Pack 2 with Advanced Security Technologies
(NTFS File system)
Pre-installed Software*1
Microsoft® Internet Explorer 6 Service Pack 2 /...

75

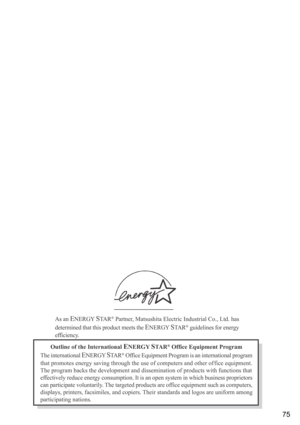

Outline of the International ENERGY STA R® Office Equipment Program
The international
ENERGY STA R® Office Equipment Program is an international program
that promotes energy saving through the use of computers and other of fice equipment.
The program backs the development and dissemination of products with functions that
effectively reduce energy consumption. It is an open system in which business proprietors
can participate voluntarily. The targeted products are office equipment such as computers,...

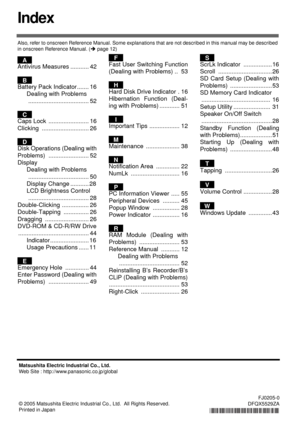

Index
Also, refer to onscreen Reference Manual. Some explanations that are not described in this manual may be described
in onscreen Reference Manual. (Îpage 12)
Antivirus Measures ........... 42
Battery Pack Indicator ....... 16
Dealing with Problems
.................................... 52
Caps Lock  ........................ 16
Clicking ............................ 26
Disk Operations (Dealing with
Problems) ........................ 52
Display
Dealing with Problems
.......................................
